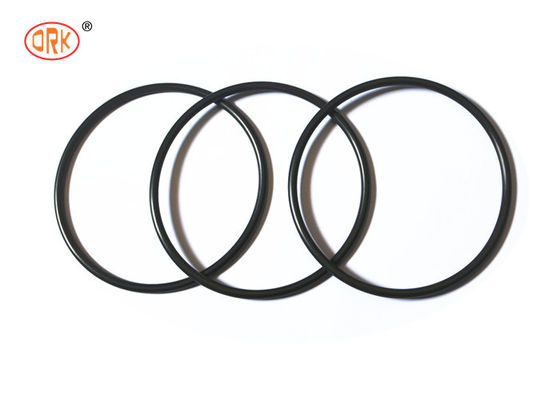

ODM Black Abrasion Resistant FDA Ice Cream Machine FKM O Rings

ODM Black Abrasion Resistant FDA Ice Cream Machine FKM O Rings

Abrasion Resistant FKM O Rings

ODM FKM O Rings

AS 568 FKM O Rings

Place of Origin:

Guangdong,China

Brand Name:

ORK

Certification:

FDA,ROHS,ISO9001,IATF16949

Model Number:

Standard AS 568

Contact Us
Request A Quote
Product Details
Name:
FKM O-Ring
Size:
Customized
Material:
FKM
Hardness:
30 ~ 90 Shore
Color:
Black Brown Green RED
Heat Range:
-40 ~180 ℃
Acild Resistant:
Acceptable
OEM / ODM:
Available
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
PE inside , Carton Outside, Cartons on pallets
Delivery Time
7-45 work days
Payment Terms
L/C,Paypal, T/T
Supply Ability
30000000 PCS / Month
Product Description


ODM Black Abrasion Resistant FDA Ice Cream Machine FKM O Rings

FKM O-RINGS Description


An O-ring, also known as a packing, or a toric joint, is a mechanical gasket in the shape of a torus; it is a loop of elastomer with a round cross-section, designed to be seated in a groove and compressed during assembly between two or more parts, creating a seal at the interface.

The O-ring may be used in static applications or in dynamic applications where there is relative motion between the parts and the O-ring. Dynamic examples include rotating pump shafts and hydraulic cylinder pistons.

O-rings are one of the most common seals used in machine design because they are inexpensive, easy to make, reliable, and have simple mounting requirements. They can seal tens of megapascals (thousands of psi) of pressure.


Specification


Product Name FDA FKM O Ring
Materials FKM FPM Fluorelastomer
Temperature

-25℃~250°C

Feature Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant
Cerfiticate ISO 9001:2008,IATF 16949
Hardness 50-90 shores A
Color Black, also can be white, blue, green, brown, red etc
Size Any size, Customized/standard and nonstandard
Sample time If instock, within 3 days after payment
Delivery time

7-15 days by express after payment
10-20 days by ship

Shipping

Small quantity: UPS/FeDex/DHL express
Large quantity: by Air/Sea

Customized OEM & ODM are welcomed
packing plastic bag&carton box or according to your requirements
Application chemical industry, petroleum industry, medical technique, food industry, sewage-disposal industry, steel industry, semi-conduct industry and so on.


Key Use(s)

Seals for aircraft engines. Seals for automotive fuel handling systems. High temperature/low compression set applications. Wide chemical exposure situations. Hard vacuum service.

Features

High fluorine grades offer higher resistance to swell in high octane and oxygenated fuel blends. This give superior performance in Ethanol/Methanol blended gasoline. Base resistant grades offer improved resistance to amine based oil protectants found in new transmission oils.  Also, improved resistant to steam for higher temperature services. Low temperature bases can improve performance to -40°F.
New Polymers being offered have improved chemical resistance and low temperature performance.
FKM® Extreme™ ETP offers similar chemical compatibility as Kalrez™ with temperature performance with a TR(10) of -40°F and brittleness to -76°.


Limitations

Fluorocarbons (FKM) are not recommended for exposure to ketones, amines, low molecular weight esters and ethers, nitro hydrocarbons, hot hydrofluoric or chlorosulfonic acids, or Skydrol fluids. They are also not recommended for situations requiring good low temperature flexibility.
ODM Black Abrasion Resistant FDA Ice Cream Machine FKM O Rings 0

ODM Black Abrasion Resistant FDA Ice Cream Machine FKM O Rings 1

FKM O-Ring General Attributes

  • Excellent Heat resistance
  • Excellent resistance to oils
  • Low compression set
  • Good fuel resistance
  • Excellent ozone and weather resistance

Common Applications for FKM O-Rings

  • Engine Oil Seals
  • Fuel Systems
  • High Temperature Seals
  • Petrochemical Systems

ORK is a leading supplier of FKM O-rings and custom molded seals. We offer both genuine FKM and standard fluorocarbon materials for general purpose and high performance applications. Selecting the type of FKM that best fits your application is important, but it isn't complicated, and help is available from ORK. We also offer gaskets made out of FKM.

ODM Black Abrasion Resistant FDA Ice Cream Machine FKM O Rings 2





Process Flow:



Raw material test → Prescribe → Mixing Material → Cutting Material → First Cure → First Part Inspection → Casual Inspection

→ Burr Dealing → Eye Inspection → IPQC → Washing or Grinding → Post Cure → FQC → Packing

ODM Black Abrasion Resistant FDA Ice Cream Machine FKM O Rings 3



Packing & Delivery:



Packing: PE bag inside, Carton outside.

Carton size: 46cm*34cm*34cm,40cm*34cn*34cm 51cm*34cm*34cm, 29cm*23cm*19cm

Delivery: Large quantity by ship, small quantity by air or express.

ODM Black Abrasion Resistant FDA Ice Cream Machine FKM O Rings 4

ODM Black Abrasion Resistant FDA Ice Cream Machine FKM O Rings 5



FAQ:

1,Are you manufacture or trading company ?
We are manufacture, we have two factories, one located in Shangrao City, Jiangxi Province, one in Dongguan City, Guangdong Province


2,Can I get samples from you ?
Of course, you can. If the samples you need we have in stock, you can get them for free,
only need to pay for the express cost.


3,What's the term of payment ?
Amount < US$2000, 100% paid in advance by paypal or T/T;
Amount >= US$2000, 30% paid in advance, 70% balance before shipment by T/T.


4,Can you produce OEM products ?
Yes, we can produce products by your drawing or samples.


5,What's your MOQ ?
If we have the products in stock , the quantity by your requirement, If we don't have them in stock:
NBR, SIL, SBR, EPDM, NR: 100 US$; PU, HNBR, FKM: 150 US$
