Place of Origin:
Guangdong,China
Brand Name:
ORK
Certification:
FDA,ROHS,ISO9001,TS16949
Model Number:
Customized
Video

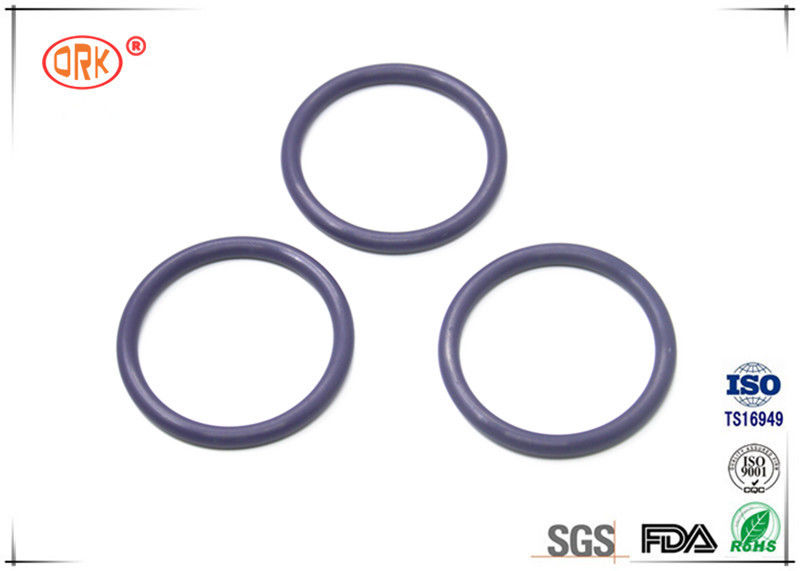

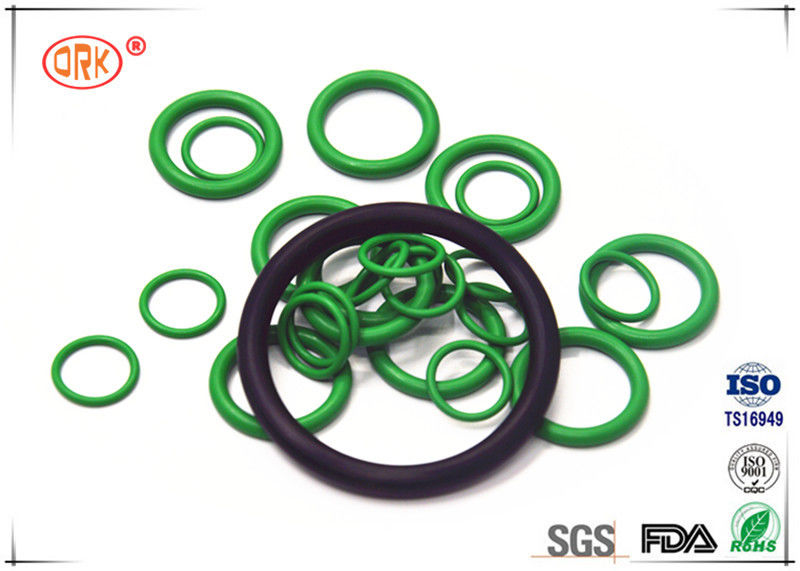

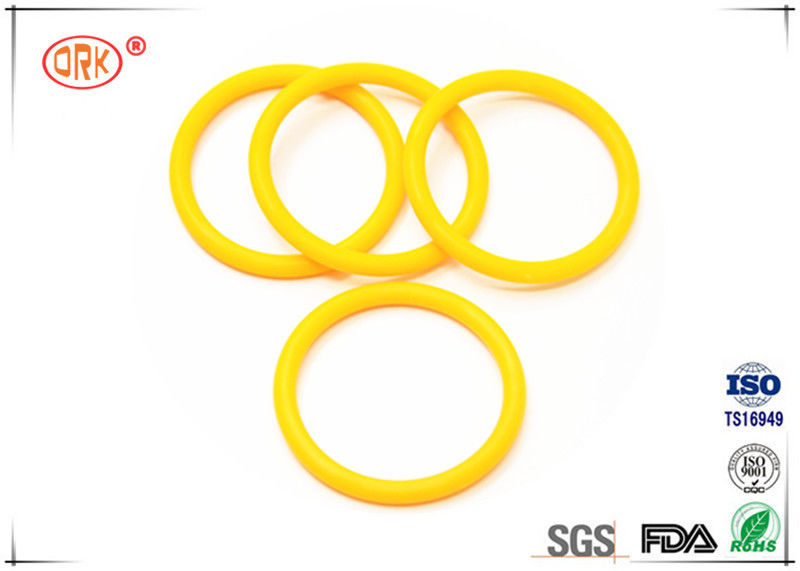

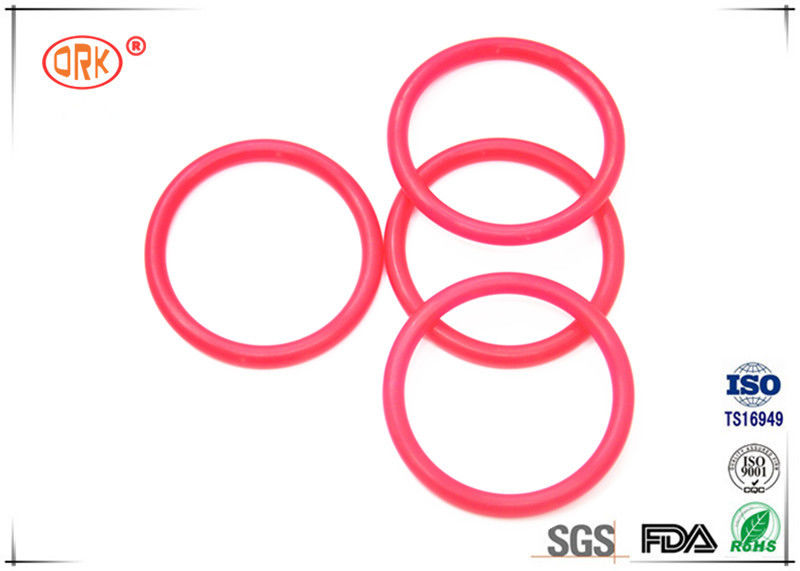

Colorful FKM O Rings High Pressure Food Grade Outstanding Chemical Resistance
Trade Names:
ASTM D1418 Designation: FKM
ASTM D2000/SAE Type, Class: HK
ORK Compound Designation: VT
Standard Color: Black
Description: Combining high temperature resistance with outstanding chemical resistance, Fluorocarbon-based compounds approach the ideal for a universal O-ring material.
Key Use(s): Seals for aircraft engines. Seals for automotive fuel handling systems. High temperature/low compression set applications. Wide chemical exposure situations. Hard vacuum service.
Temperature Range
Standard Compound: -13° to +446°F
Special Compound: -40° to +446°F
Hardness (Shore A): 55 to 90.
Features: High fluorine grades offer higher resistance to swell in high octane and oxygenated fuel blends. This give superior performance in Ethanol/Methanol blended gasoline. Base resistant grades offer improved resistance to amine based oil protectants found in new transmission oils. Also, improved resistant to steam for higher temperature services. Low temperature bases can improve performance to -40°F.
New Polymers being offered have improved chemical resistance and low temperature performance.
FKM® Extreme™ ETP offers similar chemical compatibility as Kalrez™ with temperature performance with a TR(10) of -40°F and brittleness to -76°.
Limitations: Fluorocarbons (FKM®s) are not recommended for exposure to ketones, amines, low molecular weight esters and ethers, nitro hydrocarbons, hot hydrofluoric or chlorosulfonic acids, or Skydrol® fluids. They are also not recommended for situations requiring good low temperature flexibility.
| Flurocarbon Compuond | Available Specifications | Key Characteristics | Average Temperature Ranges |
| Commercial | ASTM D2000 | Available in black or brown. Excellent resistance to head and a wide range of chemicals. | 5° to 446°F |
| AMS7276 | AMS 7276, M83248/1, Mil-R-83248 CL1, Dwg AS3208, AS3209 | Meets AMS7276. Excellent resistance to heat, engine oils and lubricants, ozone and weathering. Low compression set and good fuel resistance. | -13° to 392°F |
| AMS7259 | AMS 7259, M83248/2, Mil-R-83248 CL2, Dwg AS3581 | Meets AMS7259. Similar to AMS 7276 above except in 90-durometer hardness. | -13° to 392°F |
| M83485/1 GLT Type | M84385/1, AMS-R-83485, Mil-R-83485 | Meets AMS-R-83485. Excellent heat resistance and low temperature performance. GLT Type FKM. | -35° to 400°F |
| GFLT FKM | ASTM D2000 / SAE J200, M7HK 710 A1-10 B38 EF31 Z1 Z2 Z3 | GFLT based FKM. Good for low temp with improved chemical resistance. Listed for fuel/alcohol applications. | -31° to 392°F |
| FDA FKM | ASTM D2000 / SAE J200 M2HK 710 A1-10 B37 B38 EF31 F15 Z | FDA, USDA, and NSF grades available. | -4° to 392°F |
| FKM Extreme | Extreme chemical service. Strong bases and amines. Peroxide cured. | -4° to 392°F | |
| FKM V91A | Low Temperature applications. Explosive decompression resistant. | -51° to 437°F |
Process Flow:
Raw material test → Prescribe → Mixing Material → Cutting Material → First Cure → First Part Inspection → Casual Inspection → Burr Dealing → Eye Inspection → IPQC → Washing or Grinding → Post Cure → FQC → Packing
Packing & Delivery:
Packing: PE bag inside, Carton outside.
Carton size: 46cm*33cm*33cm, 51cm*33cm*33cm, 29cm*23cm*19cm
Delivery: Large quantity by ship, small quantity by air or express.
FAQ:
1,Are you manufacture or trading company ?
We are manufacture, we have two factories, one located in Shangrao City, Jiangxi Province, one in Dongguan City, Guangdong Province
2,Can I get samples from you ?
Of course, you can. If the samples you need we have in stock, you can get them for free,
only need to pay for the express cost.
3,What's the term of payment ?
Amount < US$2000, 100% paid in advance by paypal or T/T;
Amount >= US$2000, 30% paid in advance, 70% balance before shipment by T/T.
4,Can you produce OEM products ?
Yes, we can produce products by your drawing or samples.
5,What's your MOQ ?
If we have the products in stock , the quantity by your requirement, If we don't have them in stock:
NBR, SIL, SBR, EPDM, NR: 100 US$; PU, HNBR, FKM: 150 US$
