Place of Origin:
Guangdong,China
Brand Name:
ORK
Certification:
FDA,ROHS,ISO9001,TS16949
Model Number:
Customized
Video
FKM 70 Fuel Resistant O Rings High Fluorine Grades For Low Compression Set
Trade Names:
ASTM D1418 Designation: FKM
ASTM D2000/SAE Type, Class: HK
ORK Compound Designation: VT
Standard Color: Black
Description: Combining high temperature resistance with outstanding chemical resistance, Fluorocarbon-based compounds approach the ideal for a universal O-ring material.
Key Use(s): Seals for aircraft engines. Seals for automotive fuel handling systems. High temperature/low compression set applications. Wide chemical exposure situations. Hard vacuum service.
Temperature Range
Standard Compound: -13° to +446°F
Special Compound: -35° to +446°F
Hardness (Shore A): 55 to 90.
Features: High fluorine grades offer higher resistance to swell in high octane and oxygenated fuel blends. This give superior performance in Ethanol/Methanol blended gasoline. Base resistant grades offer improved resistance to amine based oil protectants found in new transmission oils. Also, improved resistant to steam for higher temperature services. Low temperature bases can improve performance to -40°F.
New Polymers being offered have improved chemical resistance and low temperature performance.
FKM® Extreme™ ETP offers similar chemical compatibility as Kalrez™ with temperature performance with a TR(10) of -40°F and brittleness to -76°.
Limitations: Fluorocarbons (FKM®s) are not recommended for exposure to ketones, amines, low molecular weight esters and ethers, nitro hydrocarbons, hot hydrofluoric or chlorosulfonic acids, or Skydrol® fluids. They are also not recommended for situations requiring good low temperature flexibility.
| Material | FKM(fluoroelastomer FKM/FPM) |
| Advantage | 1,Excellent High Temperature Resistance |
| 2. Excellent Abrasion-Resistance | |
| 3,Excellent Oil Resistance | |
| 4.Excellent Weathering Resistance | |
| 5.Excellent Ozone Resistance | |
| 6.Good Water Resistance | |
| Disadvantage | 1.Poor Low Temperature Resistance |
| 2.Poor Oxygenated-Solvent Resistance | |
| Temperature | -20℃~250℃ , -40℃~250℃(special formula) |
| Application | 1.For Auto |
| 2.For Aerospace | |
| 3.For Electronic Products |

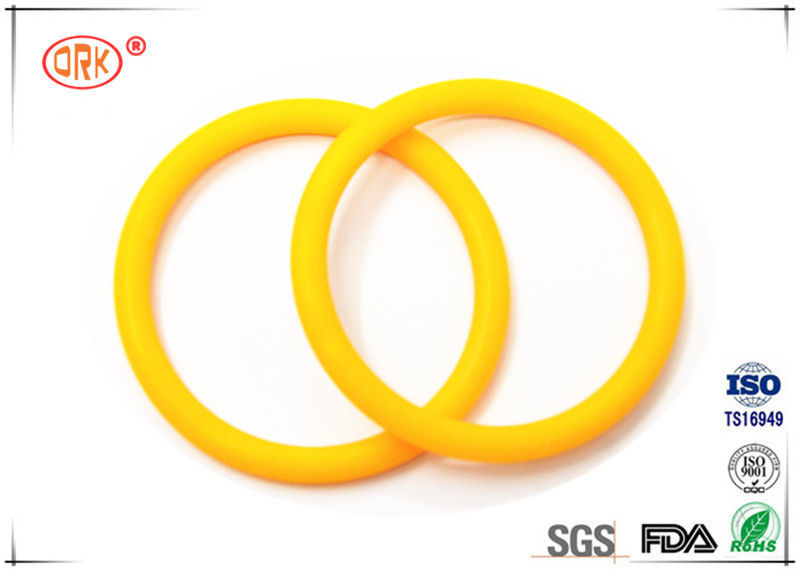

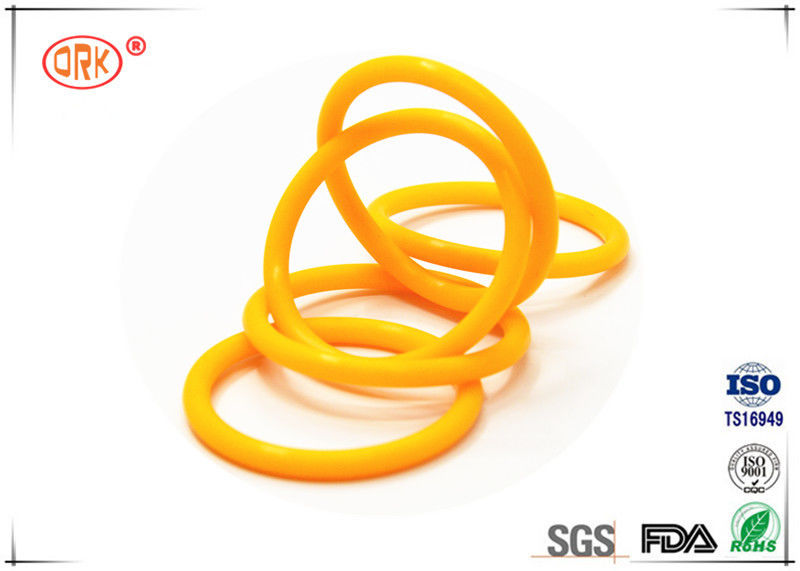

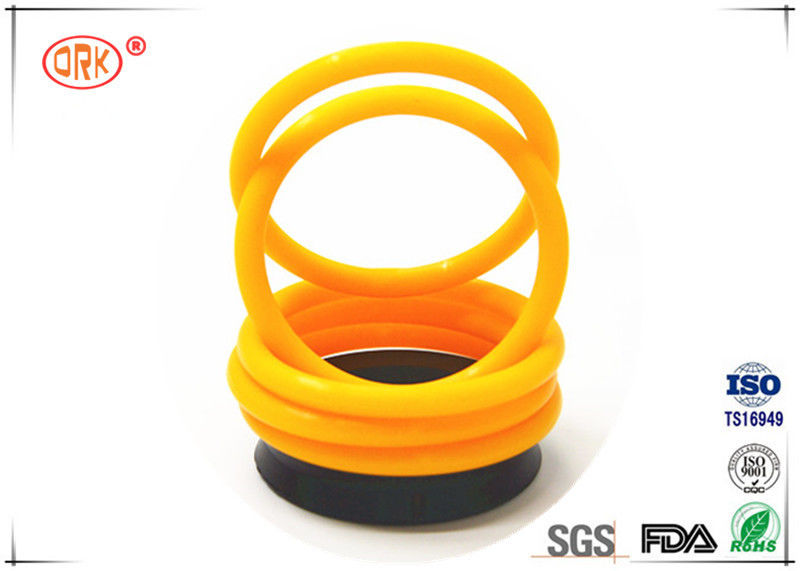

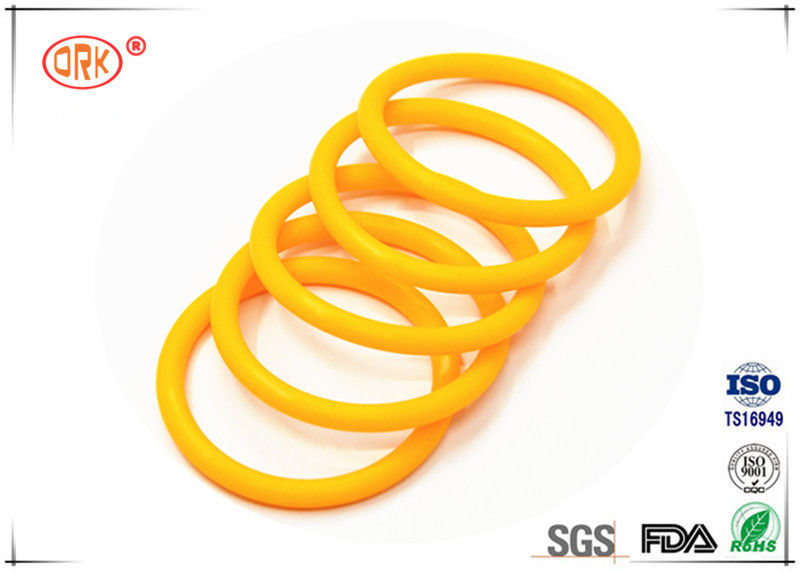

O Ring Display:
Process Flow:
Raw material test → Prescribe → Mixing Material → Cutting Material → First Cure → First Part Inspection → Casual Inspection → Burr Dealing → Eye Inspection → IPQC → Washing or Grinding → Post Cure → FQC → Packing
Packing & Delivery:
Packing: PE bag inside, Carton outside.
Carton size: 46cm*33cm*33cm, 51cm*33cm*33cm, 29cm*23cm*19cm
Delivery: Large quantity by ship, small quantity by air or express.
FAQ:
1,Are you manufacture or trading company ?
We are manufacture, we have two factories, one located in Shangrao City, Jiangxi Province, one in Dongguan City, Guangdong Province
2,Can I get samples from you ?
Of course, you can. If the samples you need we have in stock, you can get them for free,
only need to pay for the express cost.
3,What's the term of payment ?
Amount < US$2000, 100% paid in advance by paypal or T/T;
Amount >= US$2000, 30% paid in advance, 70% balance before shipment by T/T.
4,Can you produce OEM products ?
Yes, we can produce products by your drawing or samples.
5,What's your MOQ ?
If we have the products in stock , the quantity by your requirement, If we don't have them in stock:
NBR, SIL, SBR, EPDM, NR: 100 US$; PU, HNBR, FKM: 150 US$
