Name: Wholesale EPDM O-Ring Seal, Heat & Weather Proof, Various Rubber Compound Selection, for Cooling System Agricultural Machinery
Brand: Dongguan Ruichen Sealing Co., Ltd.
SKU: Customized
Price: 0.01 USD
Availability: InStock

Home > Products > EPDM O Ring >

Wholesale EPDM O-Ring Seal, Heat & Weather Proof, Various Rubber Compound Selection, for Cooling System Agricultural Machinery

EPDM O-Ring Seal

Heat & Weather Proof O-Ring

Cooling System EPDM O-Ring

Place of Origin:

Guangdong,China

Brand Name:

ORK

Certification:

FDA,ROHS,ISO9001,TS16949

Model Number:

Customized

Request A Quote

Wholesale EPDM O-Ring Seal, Heat & Weather Proof, Various Rubber Compound Selection, for Cooling System Agricultural Machinery

Product Details

Material:

EPDM

Color:

BLACK , GREEN , YELLOW , PURPLE

Standard:

AS568 Bs

Hardness:

30 ~ 90 Shore

Temprature Range:

-35 ~ 140 ℃

Size:

Any Sizes Are Acceptable

Payment & Shipping Terms

Minimum Order Quantity

100 USD

Price

0.01 ~ 2 USD/PCS

Packaging Details

PE inside , Carton Outside

Delivery Time

7-45 work days

Payment Terms

L/C,L/C,Paypal

Supply Ability

30000000 PCS / Month

EPDM Rubber O Ring, Ethylene Propylene O-Ring Seal, NBR Silicone FKM HNBR Optional, Ozone & Steam Resistant for Water Valve and HVAC Sealing

Get Best Price

Custom EPDM O Ring, Heat & Dilute Chemical Resistant O-Ring, Low Compression Set for Construction and Water Treatment Sealing

Get Best Price

Wholesale EPDM O Ring, Leakproof EPDM Rubber Seals, NBR/EPDM/Silicone/FKM Choices for Sanitary and Fluid Equipment

Get Best Price

Custom Size EPDM Rubber O Ring, Leak-Proof EPDM O-Ring, Various Rubber Materials for Valve, Pump and General Industrial Sealing

Get Best Price

86-769-86865862

Contact Now

Product Description

Product Overview: Wholesale EPDM O-Ring Seal

This wholesale EPDM O-ring seal delivers reliable heat and weather resistance for demanding sealing applications, including cooling systems and agricultural machinery. Manufactured by an ISO9001:2000-certified factory, each O-ring is produced through precision compression molding and is available in a broad selection of rubber compounds to match your specific operating conditions.

An O-ring is a circular sealing component typically manufactured from elastic materials via compression molding. It is widely used to seal fluids, liquids, and gases, serving as an essential element in complete sealing assemblies. O-rings perform well in both static and dynamic sealing applications. Common available materials include NR, CR, NBR, SBR, FKM, Silicone, HNBR, PU, and more.

Key Features & Benefits

Excellent high and low temperature resistance
Good abrasion resistance and UV resistance
Outstanding ozone resistance
Available materials: Silicone, NBR, SBR, NR, EPDM, IIR, EPR, CR, and more
Waterproof and oil resistant
High durability with reliable sealing performance
Non-toxic and safe, widely applied in automotive, motorcycle, and other industries
Customizable to meet customer requirements

Curing Process Parameters

Process Stage	Sheet	Button
Press Cure	5 min at 170°C	10 min at 170°C
Post Cure	1 hr at 125°C	1 hr at 125°C

Original Properties & Test Results

Property	Specification	Test Result
Hardness, Shore A	70° ±5	70
Tensile Strength, MPa, min	14	14.9
Ultimate Elongation, %, min	300	327
Specific Gravity (g/cm³)	—	1.15

Heat Resistance (70 h at 100°C)

Parameter	Specification	Test Result
Change in Hardness, points	10	2
Change in Tensile Strength, %	-25	-4.1
Ultimate Elongation, max %	-25	-3.4

Compression Set, Ozone & Water Resistance

Test	Condition	Specification	Test Result
Compression Set, max	22 h at 70°C	25	8
Resistance to Ozone (Exposure Method B)	—	No Crack	Pass
Water Resistance (EA14)	100°C, 70 h	Volume Change ±5%	3.7%
Low-Temperature Brittleness (F19)	After 3 min at -55°C	Nonbrittle	Pass

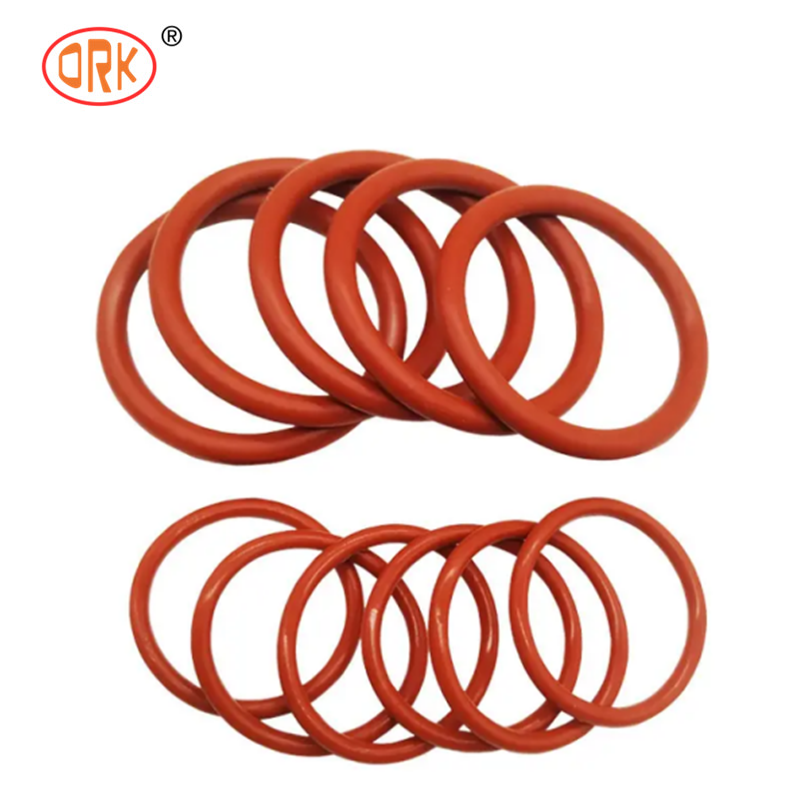

Product Reference Image

Custom designs and compound selections are welcome. Contact us for wholesale pricing and specification matching.
