Name: High Performance EPDM O Ring, Standard & Custom Size Rubber O-Ring, Steam & Hot Water Resistant, NBR FKM Silicone Alternative for Industrial Static & Dynamic Sealing
Brand: Dongguan Ruichen Sealing Co., Ltd.
SKU: Customized
Price: 0.01 USD
Availability: InStock

Home > Products > EPDM O Ring >

High Performance EPDM O Ring, Standard & Custom Size Rubber O-Ring, Steam & Hot Water Resistant, NBR FKM Silicone Alternative for Industrial Static & Dynamic Sealing

EPDM O Ring steam resistant

EPDM rubber O-ring hot water

EPDM O Ring industrial sealing

Place of Origin:

Guangdong,China

Brand Name:

ORK

Certification:

FDA,ROHS,ISO9001,TS16949

Model Number:

Customized

Request A Quote

High Performance EPDM O Ring, Standard & Custom Size Rubber O-Ring, Steam & Hot Water Resistant, NBR FKM Silicone Alternative for Industrial Static & Dynamic Sealing

Product Details

Material:

EPDM

Color:

BLACK , GREEN , YELLOW , PURPLE

Standard:

AS568 Bs

Hardness:

30 ~ 90 Shore

Temprature Range:

-35 ~ 140 ℃

Size:

Any Sizes Are Acceptable

Payment & Shipping Terms

Minimum Order Quantity

100 USD

Price

0.01 ~ 2 USD/PCS

Packaging Details

PE inside , Carton Outside

Delivery Time

7-45 work days

Payment Terms

L/C,L/C,Paypal

Supply Ability

30000000 PCS / Month

High Elastic EPDM Rubber O Ring, Anti-Aging Leak Proof Sealing Ring, Optional NBR FKM Silicone for Pipe Fitting & Machinery Maintenance

Get Best Price

Video

High Performance EPDM O Ring, Standard & Custom Size Rubber O-Ring, Hot Water & Steam Resistant, NBR FKM Silicone Alternative for Static & Light Dynamic Sealing

Get Best Price

High Performance EPDM O Ring, Standard & Custom Size Rubber O-Ring, Steam & Hot Water Resistant, NBR FKM Silicone Alternative for Industrial Static & Dynamic Sealing

Get Best Price

Video

High Elastic EPDM O Ring, Various Rubber Material O-Rings FKM NBR VMQ HNBR, Anti-Aging Corrosion Resistant Seals for Plumbing & HVAC Equipment

Get Best Price

86-769-86865862

Contact Now

Product Description

High-Performance EPDM O-Ring for Industrial Static & Dynamic Sealing

Our high-performance EPDM O-rings deliver reliable sealing for steam, hot water, and demanding industrial environments. Available in standard and custom sizes, these rubber O-rings serve as a dependable alternative to NBR, FKM, and silicone seals for both static and dynamic applications.

O-ring sealing is one of the most widely used sealing solutions for static and dynamic applications. An O-ring is an elastomer ring with a circular cross-section. When installed in a groove and compressed, it creates a tight seal that blocks the leakage of liquid or gas. We supply O-rings in multiple rubber materials — including EPDM, NBR, FKM, and silicone — to adapt to diverse media and working environments.

Key Features of Our Rubber O-Rings

Simple ring structure for easy installation and replacement.
Suitable for both static sealing and mild dynamic sealing.
Compact installation space, low cost, and a wide size range.
Good elasticity and resilience to maintain stable sealing under compression.
Multiple rubber compounds available to meet different temperature and media requirements.
Standard sizes in stock; custom sizes and hardness levels accepted.

Curing Process Specifications

Process Stage	Sheet	Button
Press Cure	5 min at 170°C	10 min at 170°C
Post Cure	1 hr at 125°C	1 hr at 125°C

Original Properties & Test Results

Property	Specification	Test Result
Hardness, Shore A	70° ±5	70
Tensile Strength, MPa, min	14	14.9
Ultimate Elongation, %, min	300	327
Specific Gravity (g/cm³)	—	1.15

Heat Resistance & Compression Set

Test Parameter	Specification	Test Result
Heat Resistance (70 h at 100°C) — Change in Hardness, points	10	2
Change in Tensile Strength, %	-25	-4.1
Ultimate Elongation, max %	-25	-3.4
Compression Set, max, 22 h at 70°C	25	8

Ozone, Water & Low-Temperature Resistance

Test Parameter	Specification	Test Result
Resistance to Ozone — Exposure Method B	No Crack	Pass
Water Resistance: 100°C, 70 h (EA14) — Volume Change, %	±5	3.7
Low-Temperature Brittleness — After 3 min at -55°C (F19)	Nonbrittle	Pass

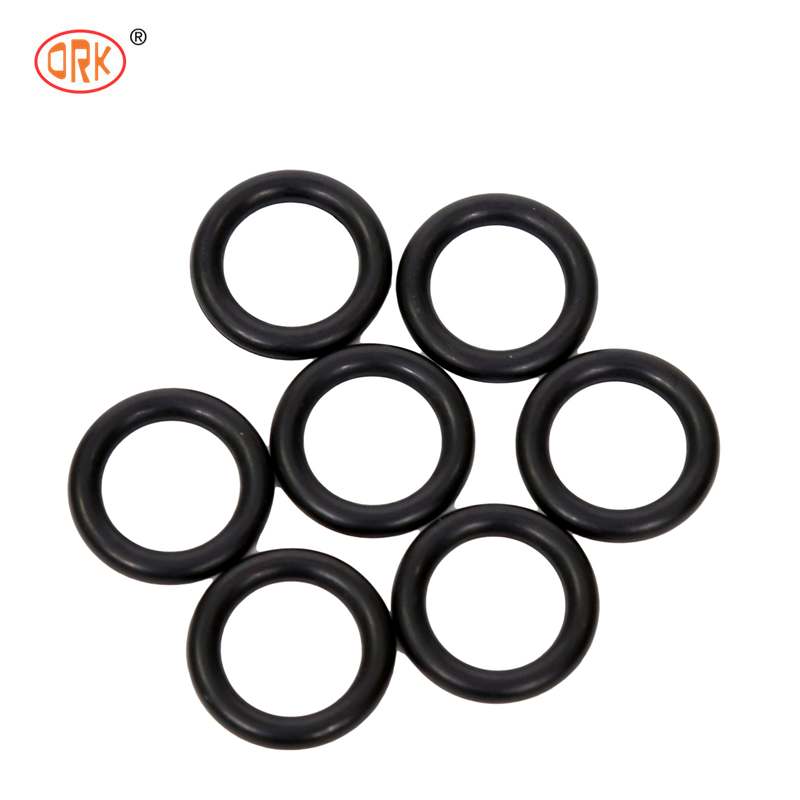

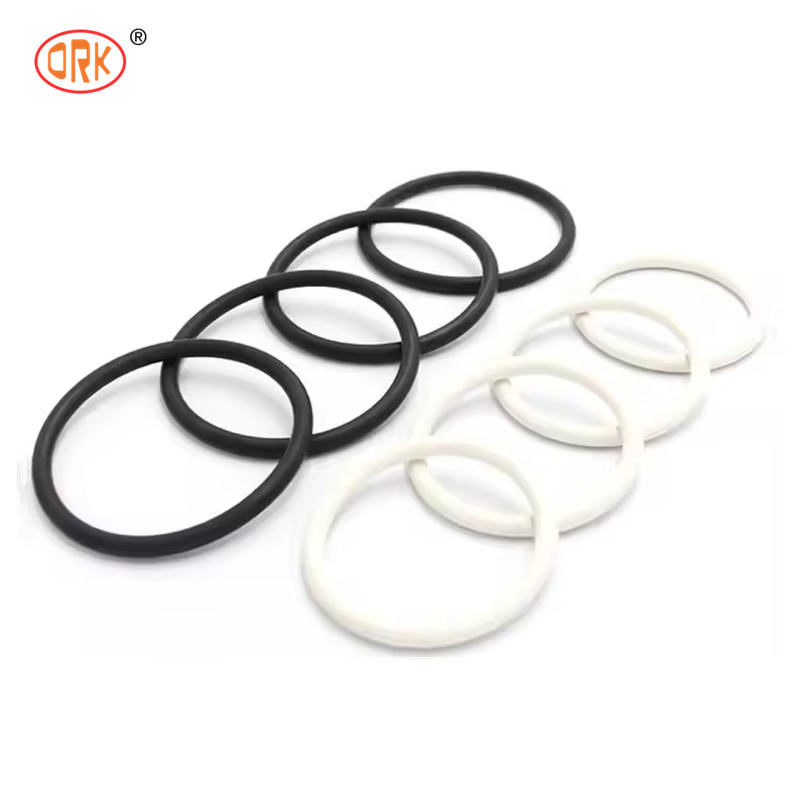

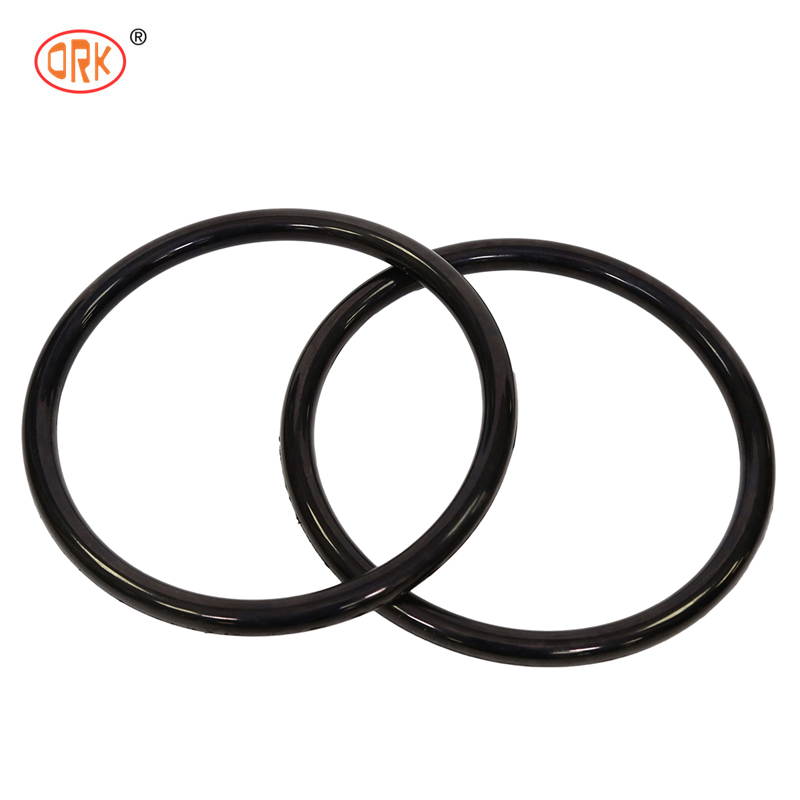

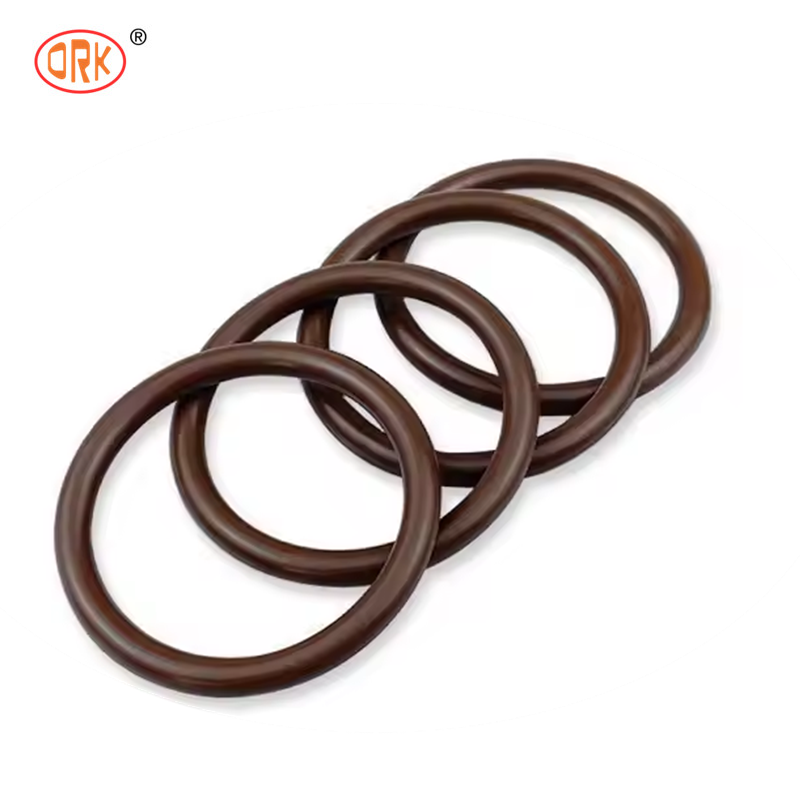

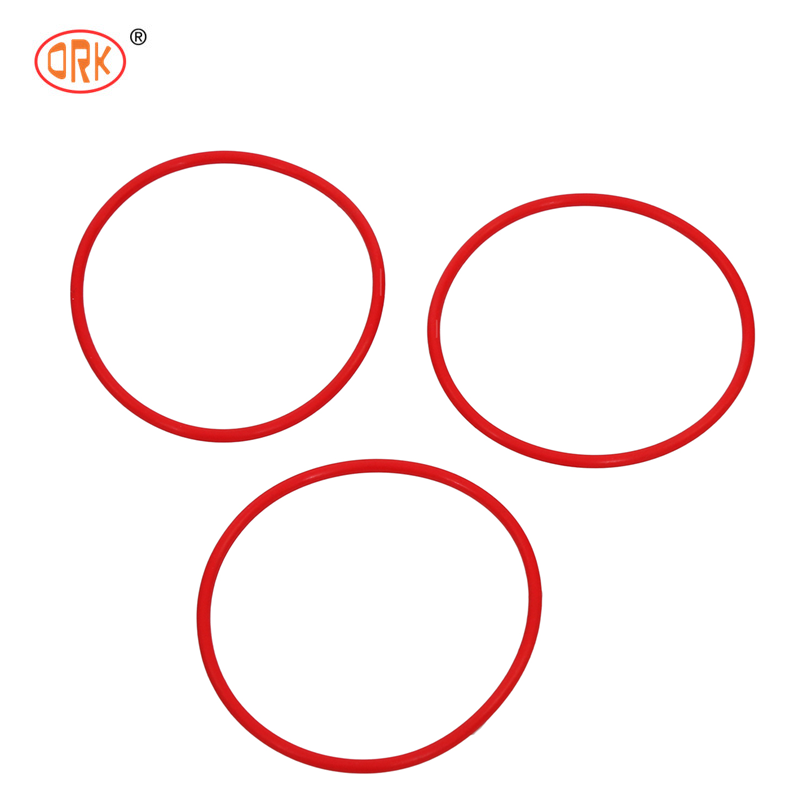

Product Image
