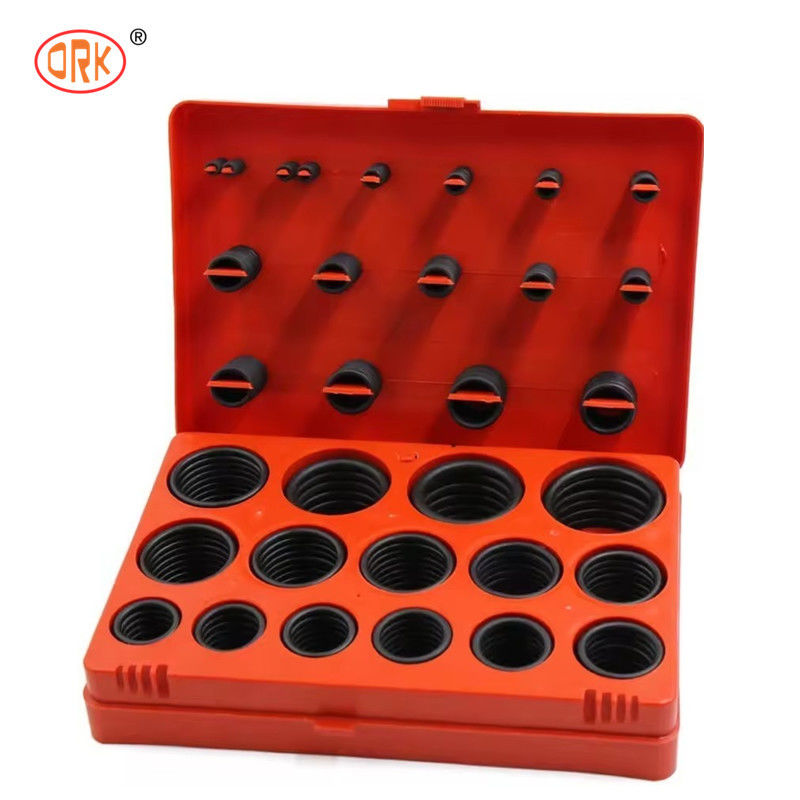

NBR O Ring Box 419PCS 30size 90 Durometer O Ring Kit Rubber O Rings Assorted Set

High Quality NBR O Ring Box 419PCS 30size 90 durometer O Ring Kit Rubber O Rings Assorted Set

• The below two kinds o ring kit are also commonly used : (if you need other sizes ,we can make customized kits)

  BOX-G AS568 SIZES O-RING KIT
  O-RING KIT AS568 STANDARD					PROFESSIONAL QUALITY
  Nitrile rubber (NBR)					382 Pcs
  Part NO.	Actual Size		Quantity		Part NO.	Actual Size		Quantity
  AS 568	ID/mm	CS/mm	InKit		AS 568	ID/mm	CS/mm	InKit
  A 006	2.90	1.78	20		A 211	20.22	3.53	10
  A 007	3.68	1.78	20		A 212	21.82	3.53	10
  A 008	4.47	1.78	20		A 213	23.39	3.53	10
  A 009	5.28	1.78	20		A 214	24.99	3.53	10
  A 010	6.07	1.78	20		A 215	26.57	3.53	10
  A 011	7.65	1.78	20		A 216	28.17	3.53	10
  A 012	9.25	1.78	20		A 217	29.74	3.53	10
  A 110	9.19	2.62	13		A 218	31.34	3.53	10
  A 111	10.77	2.62	13		A 219	32.92	3.53	10
  A 112	12.37	2.62	13		A 220	34.52	3.53	10
  A 113	13.94	2.62	13		A 221	36.09	3.53	10
  A 114	15.54	2.62	13		A 222	37.69	3.53	10
  A 115	17.12	2.62	13		A 325	37.47	5.33	7
  A 116	18.72	2.62	13		A 326	40.64	5.33	7
  A 210	18.64	3.53	10		A 327	43.82	5.33	7
  Total Quantity: 382 Pcs

• BOX-H METRIC SIZES O-RING KIT
  O-RING KIT METRIC SIZE					PROFESSIONAL QUALITY
  Nitrile rubber (NBR)					404 Pcs
  Part NO.	Actual Size		Quantity		Part NO.	Actual Size		Quantity
  ON Kit	ID/mm	CS/mm	InKit		ON Kit	ID/mm	CS/mm	InKit
  R_01	3.00	2.00	18		R_16	20.00	3.00	12
  R_02	4.00	2.00	18		R_17	22.00	3.00	12
  R_03	5.00	2.00	18		R_18	24.00	3.00	12
  R_04	6.00	2.00	18		R_19	25.00	3.00	12
  R_05	7.00	2.00	17		R_20	27.00	3.00	12
  R_06	8.00	2.00	17		R_21	28.00	3.00	12
  R_07	10.00	2.00	17		R_22	30.00	3.00	12
  R_08	10.00	2.50	14		R_23	32.00	3.00	12
  R_09	11.00	2.50	14		R_24	33.00	3.00	12
  R_10	12.00	2.50	14		R_25	35.00	3.00	12
  R_11	14.00	2.50	14		R_26	36.00	3.00	12
  R_12	16.00	2.50	14		R_27	38.00	3.00	12
  R_13	17.00	2.50	14		R_28	38.00	4.00	9
  R_14	19.00	2.50	14		R_29	42.00	4.00	9
  R_15	19.00	3.00	12		R_30	45.00	4.00	9
  Total Quantity: 404 Pcs

•

• O-RING KIT NBR90 397PCS
  P3	2.8*1.9	18	P22	21.8*2.4	14
  P4	3.8*1.9	18	P22.4	22.1*3.5	10
  P5	4.8*1.9	18	G25	24.4*3.1	11
  P6	5.8*1.9	18	P25	24.7*3.5	10
  P7	6.8*1.9	18	P26	25.7*3.5	10
  P8	7.8*1.9	18	G30	29.4*3.1	11
  P9	8.8*1.9	18	P30	29.7*3.5	10
  P10A	9.8*2.4	14	P32	31.7*3.5	10
  P11	10.8*2.4	14	P34	33.7*3.5	10
  P12	11.8*2.4	14	G35	34.4*3.1	11
  P14	13.8*2.4	14	P36	35.7*3.5	10
  P16	15.8*2.4	14	G40	39.4*3.1	11
  P18	17.8*2.4	14	P40	39.7*3.5	10
  P20	19.8*2.4	14	G45	44.4*3.1	11
  P21	20.8*2.4	14	P48	47.7*3.5	10

•

• O-ring for installation on a variety of machinery and equipment, at a specified temperature, pressure, and various liquid and gaseous media, at rest or in motion from the seal. On the machine, marine, automotive, aerospace equipment, metallurgical machinery, chemical machinery, engineering machinery, construction machinery, mining machinery, petroleum machinery, plastic machinery, agricultural machinery, and a variety of instruments, a large number of applications for various types of seals elements. O-ring is mainly used for static seals and reciprocating seals. For rotational movement of the seal when limited to low-speed rotary sealing device. O-ring is usually installed on the outer or inner circle from the seal section is rectangular trench. O-ring seals still play a good shock absorption in oil, acid, wear, erosion and other environmental chemistry. Therefore, O-ring hydraulic and pneumatic drive system most widely used a seal .

• Features:
  1,Oil-resistant, heat resistant
  2,Dustproof and water proof
  3,Durable
  4,Excellent anti-chemical character.
  5,Anti- compressibility function is very good.
  6,Good ozone resistance ,aging resistance ,high/low temperature resistance,weather resistance etc.

  Application:
  Mechanical Sealing, Fixed Sealing, Shaft Sealing, Hole Sealing, Dust Prevention Sealing, Equipment Sealing, Pump Sealing, Flange Sealing, Hydro sealing, Junction Surface Sealing and etc.

•

  What are NBR O-rings?

  Alongside FKM or HNBR, NBR (nitrile butadiene rubber) is one of the most frequently used elastomers for sealing elements.

  The material is characterized by advantageous mechanical properties and a broad resistance profile. The wide range of applications for these O-rings is limited only by their restricted suitability for high temperatures. But there is a solution for this too.

  HNBR, hydrogenated nitrile butadiene rubber, extends the high-temperature range of NBR and is therefore suitable for even more demanding applications. However, many standard applications can be economically realized with NBR O-rings economically.

  They are also known by manufacturer names such as Perbunan® or Europrene®.

• Feature	Value
  ISO designation	NBR
  Trade names	Perbunan
  Chemical name	Nitrile butadiene rubber
  Media resistance	Medium media resistance
  Temperature resistance	-30°C to +120°C
  Standard color	Black
  Standard hardness	90 Shore A
  Scope	Automotive industry, oil & gas, chemicals
  Production	Compression molding and injection molding
  Tolerances	DIN ISO 3601
  Durability	10years



We can also produce Automotive Rubber Seals ,Connector Rubber Seals ,Power Tool Rubber seals ,Valve

Rubber Seals ,Pipe Rubber Seals ,Semiconductor Rubber Seals ,Hydraulic Pneumatic Rubber Seals ,Pump

Rubber Seals ,Oil and Gas Seals ,Food Grade Rubber Seals ,Medical Rubber Seals ,Chemical Equipment

Rubber Seals ...etc.

Our Factory

1. Since 2006, focus on rubber seals, especially for auto parts

2. Certificates: ISO9001, IATF16949, ISO14001, ISO45001,ISO 13485

3. Two factories, more than 18000㎡,clean room 600㎡, with 300 workers.

4. Molds > 10000 sets, especially o rings, about 5000 sets.

5.O-ring series covers American standard (AS568), Japanese standard (JIS), national

standard(GB), and produces a large number of customized non-standard parts.

6. Material: NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, SBR .The rubber materials

used meet the requirements of ROHS2.0 and REACH235.

7. Material Certificates: FDA, ROHS, REACH, UL157, CP65 WRC, EN549,EN45545.

8. Products are widely used in automotive parts, electronic connectors, valves, pneumatics,
power tools, new energy, medical equipment, electronic products and other fields.

Ruichen always meets our customers' requirements. To make sure we produce high-quality o-rings, our company implements the

following general standards:

1) Raw material incoming inspection standard ASTM D2000 & HG/T 2579-2008 & HG/T 2811-1996
2) Public o-ring dimensional tolerance GB/T 3452.1-2005
3) N-level specification for o-ring appearance quality inspection GB/T 3452.2-2007
4) Hardness measurement model Micro O-Ring Testing (Type M system)
5) Hardness using standard ASTM D2240 Rubber Standard Test Method (Shore A)
6) Sampling inspection specification GB/T2828.1-20

Progress

Quality control

Material Inspection:Storage of all raw materials before the test, and issue a report on the corresponding

material properties, compared with raw material's own property report, two reports property values is

consistent, can put in storage.

Model Inspection:After the mold development or mold cleaning finished on the machine, we will test all

the specifications of the mold to ensure that each cavity of the product specifications and quality.

Production Inspection:The production process of the product inspection personnel timing semi-finished

product inspection, ensure the quality of the rationality of technology, defective rate control in a reasonable

range.

Quanlity Control:The quality inspection department will conduct a sampling inspection of each batch of

products

Production Full Inspection:The optical inspection machine can ensure the appearance and dimension

of the product are 100% qualified.

Cooperative partner

Ruichen company have cooperated with many superior customers as below , we have complete system and excellent productivity

to serve for you

International exhibition

WHY CHOOSE US ?

Our advantage:

1) We have more than 10 years' experience in rubber o ring and rubber parts industry.

2)Our rubber o rings and OEM rubber parts have passed ROHS, ROHS, PAHS, ELV and FDA certificates, tested

by SGS lab. For more of our test report, Please kindly check our company introduction "Product Certificate".

Our quality can meet EU and USA quality Standard at very competitive price and sold fast around the whole

world.

3)We have established rubber property test lab and have tensile strength machine, thermostatic oil tank,

aging test machine, compression set test machine, secondary cure oven, Density test machine and so on.

4) We mix all the rubber into shape by our own internal mixer and we have more than 50 sets 200 tons Curing

Machine,Building Machine and Daylight Press. We cover production capacity of 5 to 10 million o rings every

working day.

5) We have full size AS568(PARKER SIZES) from AS568-001 to AS568-920,JIS,BS1516,METRIC OR INCH SIZES

standard o ring mould.

6)OEM/ODM Services are available. We can design and produce various Non-standard Rubber Parts according

to your PDF,3D or STEP drawing files.

7)All of rubber finished products are 100% inspected before shipment !

8)For air delivery, We use middle strong Meika/Makar cartons and pack by packing belt and for sea delivery,

We pack all the cartons by strong wooden pallet to make sure customers receive the order in perfect packing

condition.

Inquiry Guide

In order to you can get faster and more accurate service, please send an inquiry according to this

page Enquiries parameters: size, material, hardness, color, tolerance, working environment, purchase

quantity , etc.

1. Size:drawing or sample.

2. Material: Silicone, NBR, EPDM, VITON&FKM, NR, HNBR, SBR, Neoprene, PU,FFKM, etc

3. Hardness: 10 Shore A~90 Shore A

4. Color: according to your request, the most common color is black. The price of the white color

products is litter higher than others.

5. Tolerance: if there is special size requirements, please mention in enquiries. Otherwise, we will

be in accordance with the international standard tolerance execution.

6. Working environment: in order to produce more accurate production you need, please be sure to

inform products work environment. Such as motion situation(is sports or stationary, whether there

is friction), contact medium (exposure to corrosive gas, water vapor, acidic or alkaline liquid), etc.

7. Purchase quantity: please offer purchase quantity per month/year.

8. Customer information: in order to facilitate we understand more about your company, and contact

you timely, please provide your company's name, phone number, E-mail contacts.
