Place of Origin:
Guangdong,China
Brand Name:
ORK
Certification:
FDA,ROHS,ISO9001,TS16949
Model Number:
Customized
Video
Video

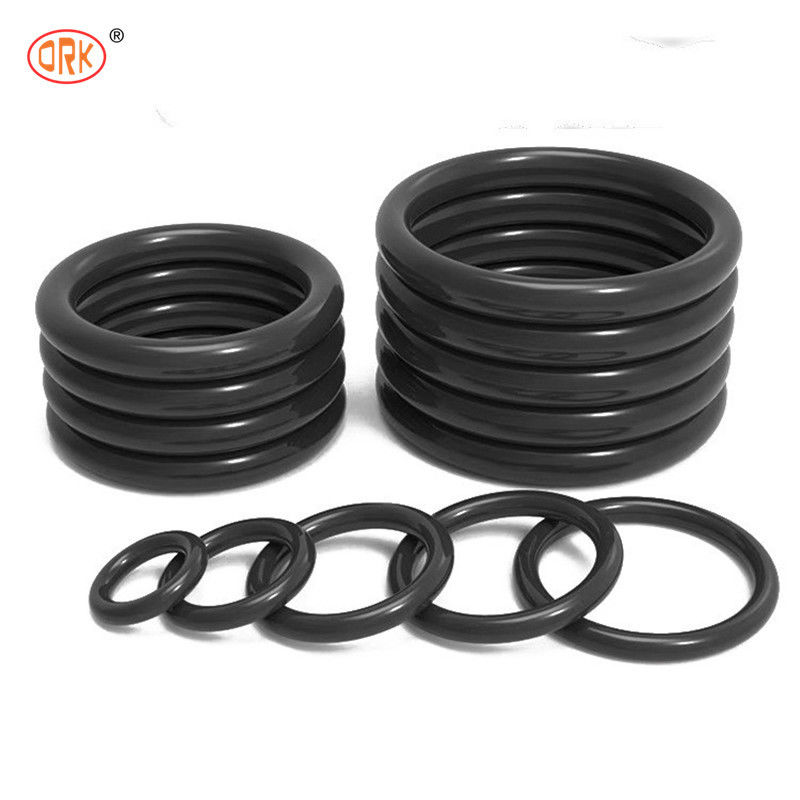

70 Shore A Rubber Seal 13mm Black Silicone Ring For Chemical Compatibility Requirements
A: Rubber O-ring seals - for binoculars, tools, automobiles, garage, plumbers, machinery, plant, repair, air and
gas connected.
B: For professional pipe, sealing pipe and sewer repair leaks family, bathtub, septic tanks, hydraulic, air and gas
connections, etc..
C: Oil, coolant, power steering fluid, washer fluid, Use for mechanical,grease applications.
E: O rings are also widely used by professional mechanics and DIY car owners to fix engine leaks and other leaks
like oil, coolant, power steering fluid, washer fluid, etc. Use for mechanical/grease applications.
Type: O Ring
Size: ID X CS, OD=ID + 2XCS
O-ring advantage:
O-rings have the following advantages compared to other types of seals:
-- Suitable for a variety of sealing forms: static seal, dynamic seal
Suitable for a variety of materials, sizes and grooves have been standardized, interchangeable
- Suitable for a variety of sports: rotary motion, axial reciprocating motion or combined motion (such as
rotary reciprocating combined motion)
- Suitable for many different sealing media: oil, water, gas, chemical media or other mixed media
Effective sealing of oil, water, air, gas and various chemical media through the selection of suitable rubber
materials and appropriate formulation design. The temperature range is wide (-60 ° C ~ +220 ° C), the
pressure can be up to 1500Kg / cm2 when used in fixed use (combined with the reinforcing ring).
--Simple design, compact structure, easy to assemble and disassemble
The O-ring cross-section structure is extremely simple, and has a self-sealing effect, and the sealing performance
is reliable.
Since the O-ring itself and the mounting structure are extremely simple and standardized, installation and
replacement are very easy.
--More varieties of materials
Can be selected according to different fluids: nitrile rubber (NBR), fluororubber (FKM), silicone rubber (VMQ),
ethylene propylene rubber (EPDM), neoprene (CR), butyl rubber (BU), poly Tetrafluoroethylene (PTFE), natural
rubber (NR), etc.
--low cost
--The dynamic friction resistance is relatively small
|
Feature |
Value |
|---|---|
| ISO designation | VMQ |
| Chemical name | Silicone rubber |
| Cross-linking | Peroxide cross-linked |
| Trade names | Silicone, Silicone |
| Media resistance | Medium media resistance |
| Temperature resistance | -60°C to +200°C |
| Standard color | Red |
| Standard hardness | 70 Shore A |
| Industries | Food industry, gas/water installation |
| Production | Compression molding and injection molding |
| Tolerances | DIN ISO 3601 |
| Durability | 10 years |
This is partly because silicone is comparatively inexpensive and partly because silicone has attractive
properties for most branches of industry.
For example, silicone has high elasticity, outstanding flexibility at low temperatures down to -60°C,
excellent weather resistance and basic compliance with FDA guidelines.
Accordingly, silicone is used in particular in the food industry, the pharmaceutical industry and in plant
engineering.
Summary of advantages
+ High elasticity
+ Excellent low-temperature flexibility down to -60°C
+ Excellent weather resistance
+ FDA-compliant in principle
Different elastomers have different compatibility with various chemical elements and their characteristics.
See the table below for more material knowledge to order the most cost-effective o-rings from us.
| Material | Hardness (Shore A) |
Temperature (ºC) |
Main Color | Advantage | Price Level | Shelf Life (Years) |
| NBR / Nitrile / Buna-N | 60-90 | -40 - 120 | Black | Good oil resistance & low price | Low | 5-10 |
| HNBR / HSN | 60-90 | -40 - 150 | Green | Suitable for the cooling industry | High | 5-10 |
| FKM / FPM / Viton | 70-90 | -20 - 200 | Brown | High-temperature & chemical resistance | High | About 20 |
| EPDM / EPR | 50-90 | -50 - 150 | Black | Excellent weather & ageing resistance | Fair | 5-10 |
| VMQ / Silicone | 40-80 | -70 - 220 | Red | High-temperature & FDA food grade | High | About 20 |
| Neoprene / CR | 50-90 | -40 - 120 | Black | Versatility Properties | Fair | 5-10 |
| FFKM | 70-90 | -10 - 320 | Black | Excellent chemical & high-temperature | Highest | About 20 |
| FVMQ / Fluorosilicone | 40-80 | -60 - 200 | Blue | Wider operating temperature range | High | About 20 |
| Aflas / FEPM | 40-90 | -2 - 230 | Black | Good chemical compatibility | Higher | About 20 |
| PU / polyurethane | 60-90 | -40 - 90 | Natural | High strength and wear resistance | High | About 10 |
We have certificates :ISO 9001:2015 , ISO 14001:2015 ,ISO 45001:2018 , IATF , FDA, REACH, ROHS, SGS etc.
For color of o rings , we can make as customers' requirements .Below table is the colorful o rings
we made.If you need colored o rings , you can give me pantone number .
We can also produce Automotive Rubber Seals ,Connector Rubber Seals ,Power Tool Rubber seals ,Valve
Rubber Seals ,Pipe Rubber Seals ,Semiconductor Rubber Seals ,Hydraulic Pneumatic Rubber Seals ,Pump
Rubber Seals ,Oil and Gas Seals ,Food Grade Rubber Seals ,Medical Rubber Seals ,Chemical Equipment
Rubber Seals ...etc.
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staff. The company has
two branches in Guangdong
and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao municipal government and fully enjoy
all the preferential policies
for economic development zone. We will always take "best quality, best service" as our mission, and make
progress together with you, harmony and mutual win!
Ruichen always meets our customers' requirements. To make sure we produce high-quality o-rings, our company implements the
following general standards:
1) Raw material incoming inspection standard ASTM D2000 & HG/T 2579-2008 & HG/T 2811-1996
2) Public o-ring dimensional tolerance GB/T 3452.1-2005
3) N-level specification for o-ring appearance quality inspection GB/T 3452.2-2007
4) Hardness measurement model Micro O-Ring Testing (Type M system)
5) Hardness using standard ASTM D2240 Rubber Standard Test Method (Shore A)
6) Sampling inspection specification GB/T2828.1-20
Progress
Quality control
Material Inspection:Storage of all raw materials before the test, and issue a report on the corresponding
material properties, compared with raw material's own property report, two reports property values is
consistent, can put in storage.
Model Inspection:After the mold development or mold cleaning finished on the machine, we will test all
the specifications of the mold to ensure that each cavity of the product specifications and quality.
Production Inspection:The production process of the product inspection personnel timing semi-finished
product inspection, ensure the quality of the rationality of technology, defective rate control in a reasonable
range.
Quanlity Control:The quality inspection department will conduct a sampling inspection of each batch of
products
Production Full Inspection:The optical inspection machine can ensure the appearance and dimension
of the product are 100% qualified.
Cooperative partner
Ruichen company have cooperated with many superior customers as below , we have complete system and excellent productivity
to serve for you
International exhibition
Why RUICHEN?
Many big companies select RUICHEN for their rubber seals and customized rubber parts because we always
satisfy them in quality, price, delivery, service, etc. At the same time, we also attach great importance to the
small customers in niche markets.Whether your purchase quantity is big or small, you are our valuable partners.
High Quality
We continue to manufacture high-quality products for all customers and pursue 100% customer satisfaction,
which has become one of our core competencies.
Profession
We have rich experience in materials, products, and production and excellent international trade and language
communication skills.
Best Services
From quoting, sampling, production, and shipping to after-sales, our sales will provide you with the best service
so that you can rest assured completely.
10000+ Projects Delivered
Over 10K projects have been sent to our customers worldwide in recent years, and we have received countless
positive comments.
Low Price
Our customers can obtain maximum profits through the ISO management system and intelligent manufacturing
to reduce our costs continuously.
Massive Capacity
Our in-house facilities allow us to get your projects done fast. And thanks to our strong relationship with rapid
materials partners, our capacity is not limited.
Fast Delivery
Unlimited capacity, experienced engineers, and a flexible production system allow us to create your seals and
production parts in a short period.
1000+ Happy Customers
We aim to keep every customer happy with reliable quality, fast turnaround, and excellent services. We want all
our new customers to become long-term customers.
FAQ
Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR, ACM, AEM,Fluorosilicone(FVMQ),
FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your
needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.
Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no mold about 25-30 days, depending on the product
situation.
Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw materials, process inspection,to ensure the quality of the
production process, shipping 100% of the full inspection; automatic inspection machine full inspection, and according
to customer needs before the mass production of pre-production samples.
Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also be packed according to customer's requirements.
Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance ,Paypal is also ok
