RoHs Certificate Standard 75 Shore A FKM O Rings

RoHs Certificate Standard 75 Shore A FKM O Rings

75 Shore A FKM O Rings

RoHs FKM O Rings

Standard FKM 75 O Rings

Place of Origin:

Dongguan, Guangdong, CN

Brand Name:

ORK

Certification:

RoHs, Reach, ISO9001, IATF16949, FDA

Model Number:

Standard

Contact Us
Request A Quote
Product Details
Material:
FKM 75
Color:
Green\Blue\Brown
Hardness:
75 Shore A
Tolerance:
+/- 5 Shore A
Shape:
"O" Shape
Certificates:
RoHs, Reach, ISO9001, IATF16949,FDA
Temperature:
-25 ~ 220 Degree
Payment & Shipping Terms
Minimum Order Quantity
150 usd per size
Price
Negotiable
Packaging Details
PE bag inside, carton outside, cartons on pallets
Delivery Time
3~30 days according to quantity
Payment Terms
L/C, T/T, Western Union, Paypal
Supply Ability
100000 pcs per week
Product Description



FKM O Ring Supplier Produce FKM O Seal Ring



As a  FKM o ring supplier, we are manufacture of FKM O seal ring, we produce such o rings since 2006 when we start the factory. So our factory has a production and quality control team with many years of rich experience.



Company Profile:



Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staffs. The company has two branches in Guangdong and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd..

Our company aims at meeting the needs of customers, meanwhile, we have good faith, keep a contact and ensure the quality of products. When necessary we will assist customers to do the relevant design (such as mold development), saving resources in the development of new products, shorten the development cycle, reduce the potential failure. So we have won the trust of our customers. Now we have nearly 200 customers who are famous at home and abroad.

RoHs Certificate Standard 75 Shore A FKM O Rings 0

In 2009, the company launched its Enterprise Resource Planning (ERP) system to monitor production planning, delivery, quality statistics and analysis, etcetera, to further improve the control during all the process and customer service.



Image Show:

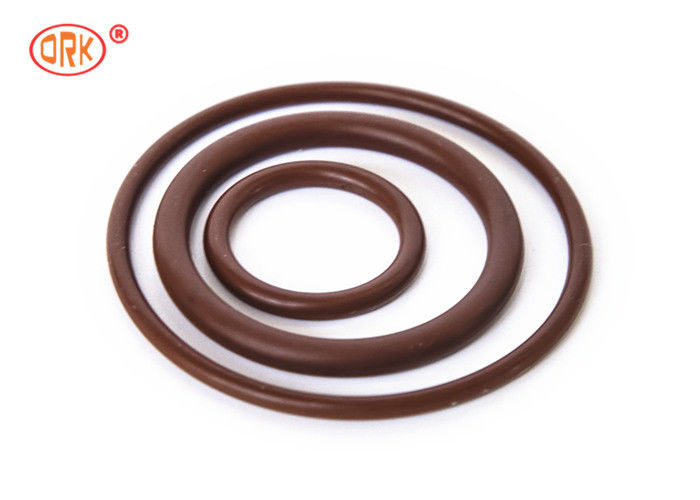

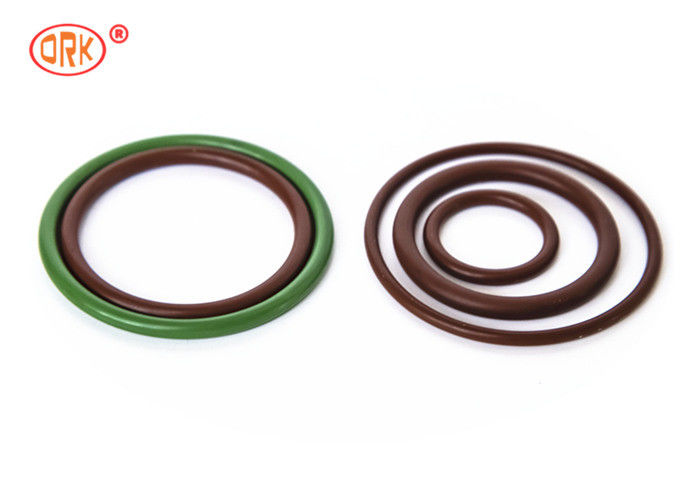

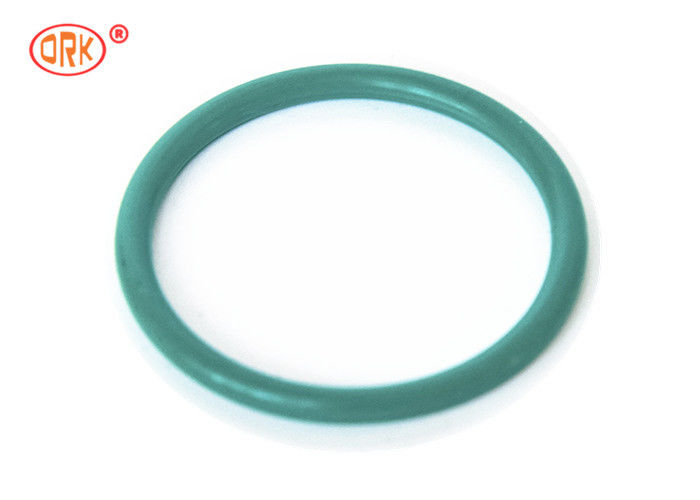

Item Name: FKM O Seal Ring              Color: Green, Brown, Blue

RoHs Certificate Standard 75 Shore A FKM O Rings 1



Data Sheet (FKM 75 Brown)



MATERIALS TEST REPORT
V7503(FKM75 BROWN) COMPOUND
ASTM D2000 M2HK 757 A1-10 B38 EO78 EF31 F15
Press Cure                                                                                                       Post Cure
Sheet : 10min 170℃                                                                                        Sheet : 16 hrs230℃
Button : 10 min 170℃                                                                                      Button : 16 hrs 230℃
ORIGINAL PROPERTIES SPECIFICATION TEST RESULT ASTM TEST METHOD JUDGE
HARDNESS SHORE A 75°±5 72 D2240 OK
TENSILE STRENGTH, MPA, MIN ≥7 11.53 D412 OK
ULTIMATE ELONGATION, %, MIN ≥150 241.01 D412 OK
SPECIFIC GRAVITY (g/cm3)   2.18 D297 OK

HEAT RESISTANCE 70 H . AT 250℃(A1-10)     D573
CHANGE IN HARDNESS, POINTS +10 +1 OK
CHANGE IN TENSILES STRENGTH, % -25 -0.78 OK
CHANGE IN ULTIMATE ELONGATION,MAX % -25 -14.14 OK

COMPRESSION SET, MAX, 22H AT 200℃  ≤30 22.69 D395 OK

FLUID RESISTANCE FUEL.101. 70H AT 200℃(EO78)     D471
CHANGE IN HARDNESS, POINTS  -15~+5 -8 OK
CHANGE IN TENSILES STRENGTH, MAX % -40 -21.5 OK
CHANGE IN ULTIMATE ELONGATION,MAX % -20 -12.3 OK
CHANGE IN VOLUME % 0~+15 +8.62 OK

FLUID RESISTANCE FUEL C, 70H AT 23℃ (EF31)     D471
CHANGE IN HARDNESS, POINTS  ±5 -3 OK
CHANGE IN TENSILES STRENGTH, MAX % -25 -15.62 OK
CHANGE IN ULTIMATE ELONGATION,MAX % -20 -12.6 OK
CHANGE IN VOLUME % 0~+10 +5.2 OK

LOW-TEMPERATURE BRITTLENESS NONBRITTLE
AFTER 3MIN AT -25°C (F15) NONBRITTLE PASS D2137 OK
