|Place of Origin:||Guangdong,China|
|Minimum Order Quantity:||100 USD|
|Price:||0.006 ~ 7 USD / PCS|
|Packaging Details:||PE inside , Carton Outside|
|Delivery Time:||7-45 work days|
|Payment Terms:||L/C, L/C,Paypal|
|Supply Ability:||30000000 PCS / Month|
|Material:||FKM||Hardness:||30 ~ 90 Shore|
|Color:||Black Brown Green RED||Heat Range:||-40 ~180 ℃|
|Acild Resistant:||Acceptable||Size:||Any Size Acceptable|
|Lead Time:||5-8 Work Days||Standard:||AS568 BS1516|

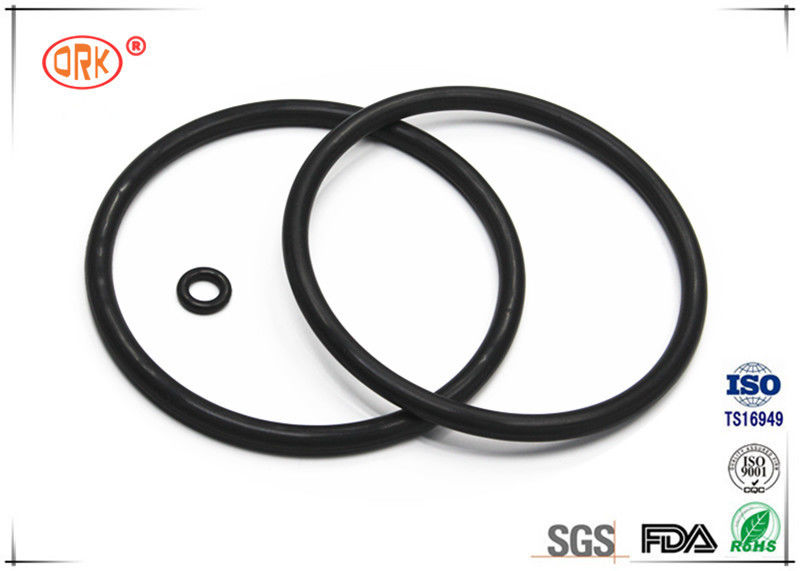

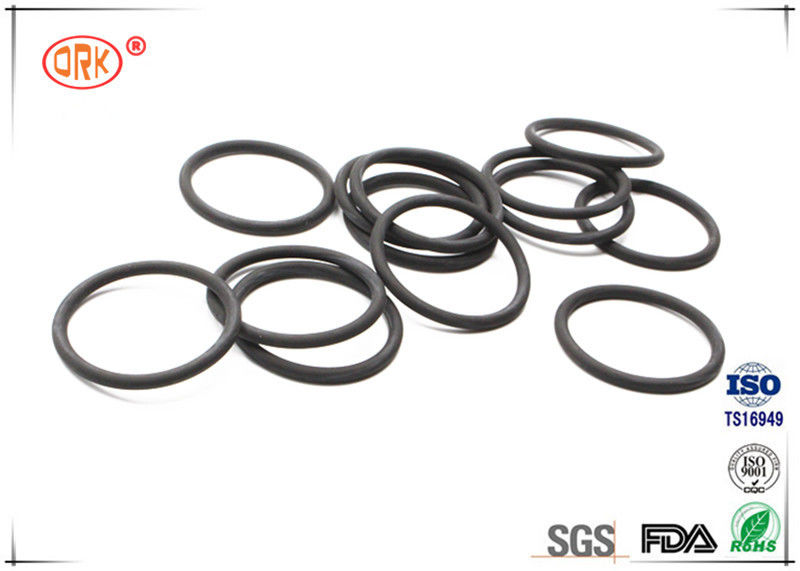

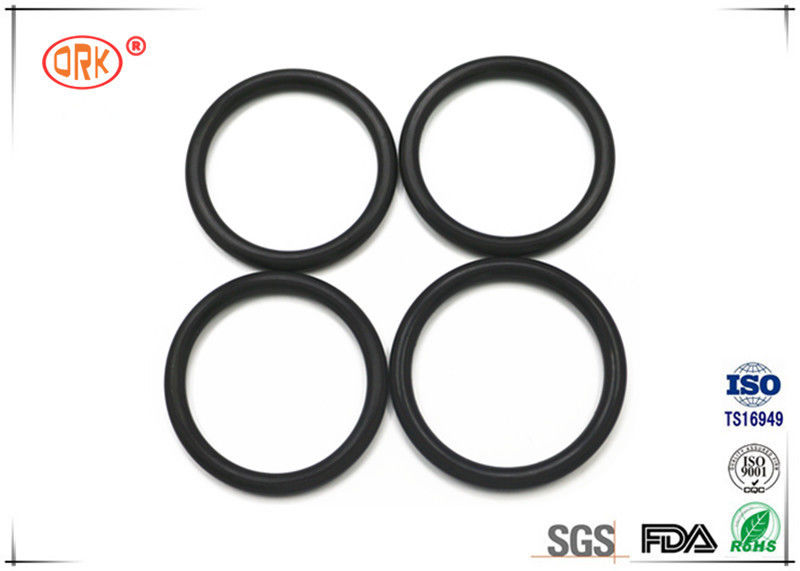

High Pressure Encapsulated O-Rings FKM For Oxygenated Automobile Fuels
FKM® is the trade name for DuPont-Dow Elastomers Fluorocarbon or FKM material. FKM® has a temperature range of -20F to +400F, and provides excellent resistance to a wide variety of chemicals, weather and conform to FDA requirements, making it ideal for use with foods and medical devices.. The relatively high level of fluorine in FKM® materials allows for exceptional resistance to chemical attack, but with limited low temperature capabilities. Intermittent exposure to +600F can be tolerated for brief periods of time
FKM® O-rings have established new performance standards in advanced fuel and engine systems, and provide improved system reliability for extreme temperatures for fuels, oils, transmission fluids and acid condensates. FKM® orings can help extend maintenance intervals and protect against seal failure. Low temperature resistance is not preferred in static applications for traditional FKM® o-rings , and is limited to approximately -15°F (-26°C). When used in dynamic applications, the low temperature is between 5°F and 0°F (-15°C and -18°C). Gas permeability is low and similar to butyl rubber.
ASTM D1418 Designation: FKM
ASTM D2000/SAE Type, Class: HK
ORK Compound Designation: VT
Standard Color: Black
Description: Combining high temperature resistance with outstanding chemical resistance, Fluorocarbon-based compounds approach the ideal for a universal O-ring material.
Key Use(s): Seals for aircraft engines. Seals for automotive fuel handling systems. High temperature/low compression set applications. Wide chemical exposure situations. Hard vacuum service.
Standard Compound: -13° to +446°F
Special Compound: -40° to +446°F
Hardness (Shore A): 55 to 90.
Features: High fluorine grades offer higher resistance to swell in high octane and oxygenated fuel blends. This give superior performance in Ethanol/Methanol blended gasoline. Base resistant grades offer improved resistance to amine based oil protectants found in new transmission oils. Also, improved resistant to steam for higher temperature services. Low temperature bases can improve performance to -40°F.
New Polymers being offered have improved chemical resistance and low temperature performance.
FKM® Extreme™ ETP offers similar chemical compatibility as Kalrez™ with temperature performance with a TR(10) of -40°F and brittleness to -76°.
Limitations: Fluorocarbons (FKM®s) are not recommended for exposure to ketones, amines, low molecular weight esters and ethers, nitro hydrocarbons, hot hydrofluoric or chlorosulfonic acids, or Skydrol® fluids. They are also not recommended for situations requiring good low temperature flexibility.
FKM® O-Ring General Attributes
Common Applications for FKM® O-Rings
|Flurocarbon Compuond||Available Specifications||Key Characteristics||Average Temperature Ranges|
|Commercial||ASTM D2000||Available in black or brown. Excellent resistance to head and a wide range of chemicals.||5° to 446°F|
|Meets AMS7276. Excellent resistance to heat, engine oils and lubricants, ozone and weathering. Low compression set and good fuel resistance.||-13° to 392°F|
|Meets AMS7259. Similar to AMS 7276 above except in 90-durometer hardness.||-13° to 392°F|
|M83485/1 GLT Type||M84385/1,
|Meets AMS-R-83485. Excellent heat resistance and low temperature performance. GLT Type FKM.||-35° to 400°F|
|GFLT FKM||ASTM D2000 / SAE J200,
M7HK 710 A1-10
EF31 Z1 Z2 Z3
|GFLT based FKM. Good for low temp with improved chemical resistance. Listed for fuel/alcohol applications.||-31° to 392°F|
|FDA FKM||ASTM D2000 /
M2HK 710 A1-10
B38 EF31 F15 Z
|FDA, USDA, and NSF grades available.||-4° to 392°F|
|FKM Extreme||Extreme chemical service. Strong bases and amines. Peroxide cured.||-4° to 392°F|
ORK is a leading supplier of FKM® O-rings and custom molded seals. We offer both genuine FKM® and standard fluorocarbon materials for general purpose and high performance applications. Selecting the type of FKM® that best fits your application is important, but it isn't complicated, and help is available from ORK. We also offer gaskets made out of FKM®
