Place of Origin:
Guangdong,China
Brand Name:
ORK
Certification:
FDA,ROHS,ISO9001,TS16949
Model Number:
Customized

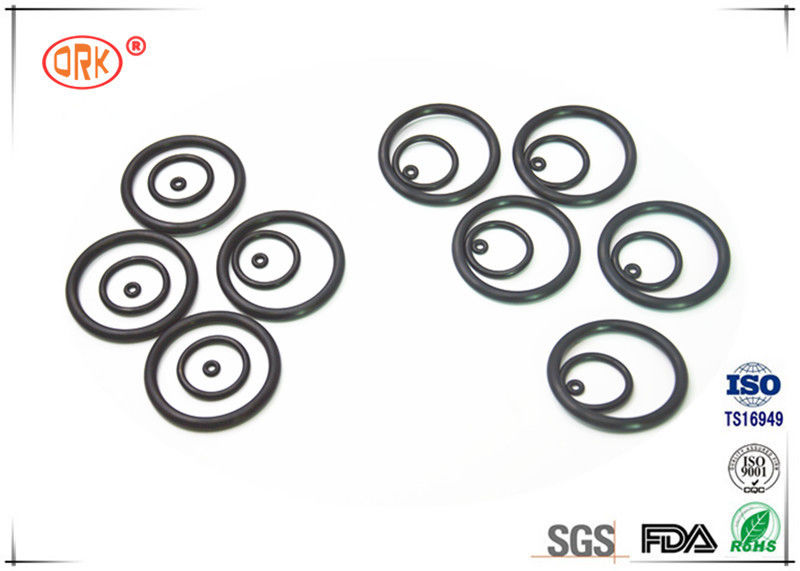

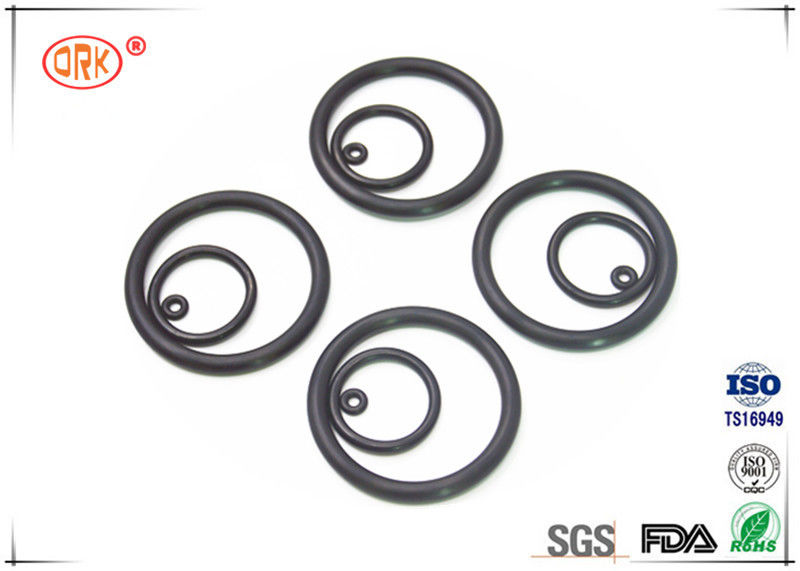

Food Grade O Rings NBR Oil Resistant Approved Compression 70±5 Shore Hardness
RUICHEN SEALING CO.,LTD offers the seal industry's largest inventory of o-rings, which includes every standard AS568 and ISO 3601 size, and the following:
In addition to standard imperial and metric sizes, ORK also carries a wide variety of non-standard sizes. With over 8,000 different o-ring sizes in-stock, we have exactly what you are looking for and we can assure immediate delivery of any size in large or small quantities.
O-Ring Sizing Guides
Still have questions about finding a standard or non-standard o-ring size? Feel free to either contact us
Easy to Order, Fastest Delivery
When you are ready to get started, submit an online RFQ to receive a quote from our dedicated sales team within 24 hours. Most likely the size and compound you require is in our inventory of over 300 Million o-rings. You receive immediate shipments with no intermediate delays. Remember: With ORK, you buy direct.
Standard O-Ring Material Applications
Nitrile (Buna-N) is the most widely used elastomer due to its excellent resistance to petroleum products, operating temperature range (-30° to +120°) and one of the best performance-to-cost values. It's an ideal material for aerospace, automotive, propane and natural gas applications. Special Hydrogenated Nitrile (HNBR) compounds can improve resistance to direct ozone, sunlight, and weather exposure while increasing temperature range to +300°F
ASTM D1418 Designation: NBR
ASTM D2000/SAE J200 Type, Class: BF, BG, BK, CH
ORK Compound Designation: BN
Standard Color: Black
Description: Presently the seal industry's most widely used and economical elastomer, Nitrile combines excellent resistance to petroleum-based oils and fuels, silicone greases, hydraulic fluids, water and alcohols, with a good balance of such desirable working properties as low compression set, high tensile strength, and high abrasion resistance.
Key Use(s): Oil resistant applications of all types. Low temperature military uses. Off-road equipment. Automotive, marine, aircraft fuel systems. Can be compounded for FDA applications.
NBR 70 TEST REPORT ASTM D2000 M2BG 714 B14 EO14 EF11 EF21 EA14 F17 |
|||
PROPERITIES |
SPECIFICATION |
TEST RESULT |
TEST METHOD |
Hardness shore A |
70±5 |
72 |
D2240 |
Tensile MPA Min |
14 |
14.5 |
D12 |
Elongation % Min |
250 |
315 |
D412 |
Gravity |
|
1.263 |
D297 |
Heat resistant 70h 100℃ Hardness change |
±15 |
﹢5 |
D573 |
Tensile strength% |
±30 |
﹢15 |
|
Elongation Max |
-50 |
-12 |
|
Compression Max 22h at 100℃ |
25 |
14 |
D395 |
NO1 oil resistant |
|
|
|
Change in hardness |
-10~+5 |
+1 |
D471 |
Change in tensile Max |
-25 |
-16 |
|
Change in Elongation |
-45 |
-20 |
|
Change in Volume% |
0~25 |
+6 |
|
Fuel resistant 70 H at 23℃ |
|
|
|
Hardness change |
±10 |
+3 |
D471 |
Tensile change Max |
-25 |
-8 |
|
Elongation change Max |
-25 |
-10 |
|
Change in Volume |
-5~+10 |
+3 |
|
Water Resistant |
|
|
D417 |
Change in Hardness |
|
+3 |
|
Change in tensile |
|
+5 |
|
Change in Elongation |
|
-14 |
|
Change in Volume |
±15 |
+3 |
|
Low Temperature resistant |
|
|
D2137 |
3 MIN -40℃ |
Non brittle |
Pass |
D2137 |
Packing & Delivery:
Packing: PE bag inside, Carton outside.
Carton size: 46cm*33cm*33cm, 51cm*33cm*33cm, 29cm*23cm*19cm
Delivery: Large quantity by ship, small quantity by air or express.
