Universal O-Ring Kit Overview

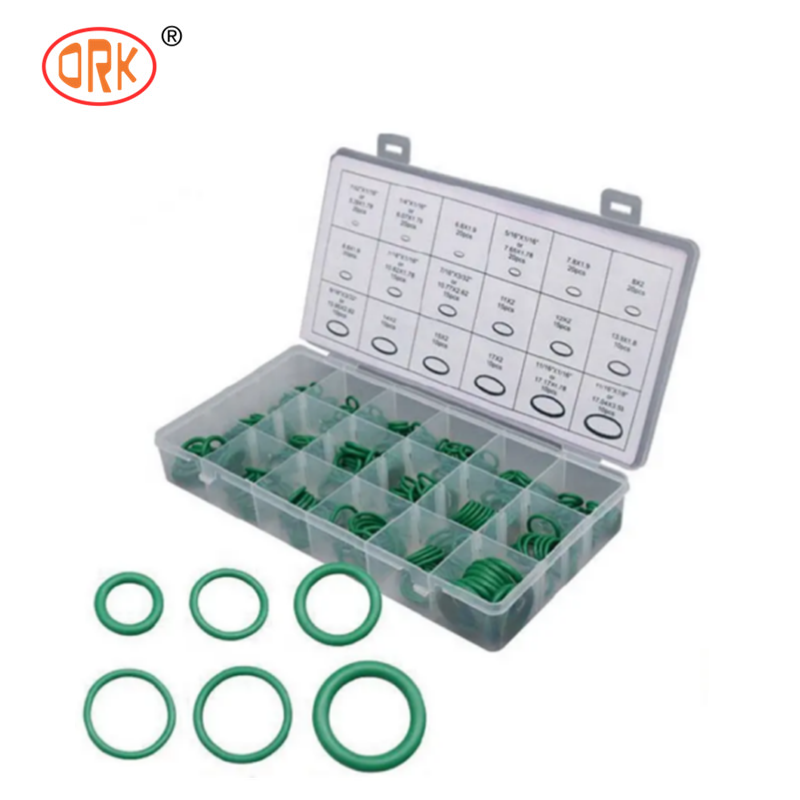

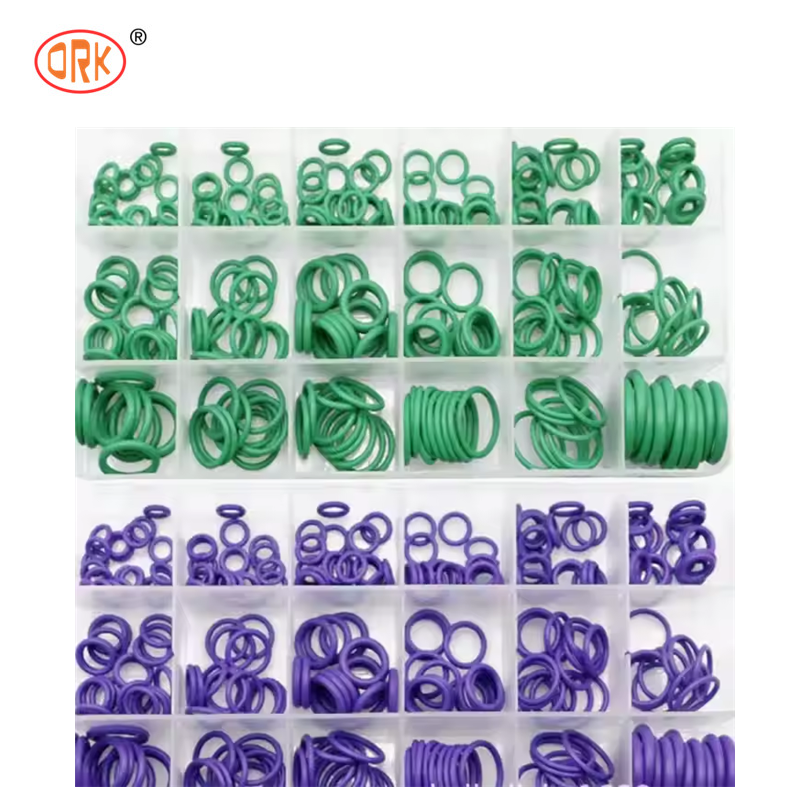

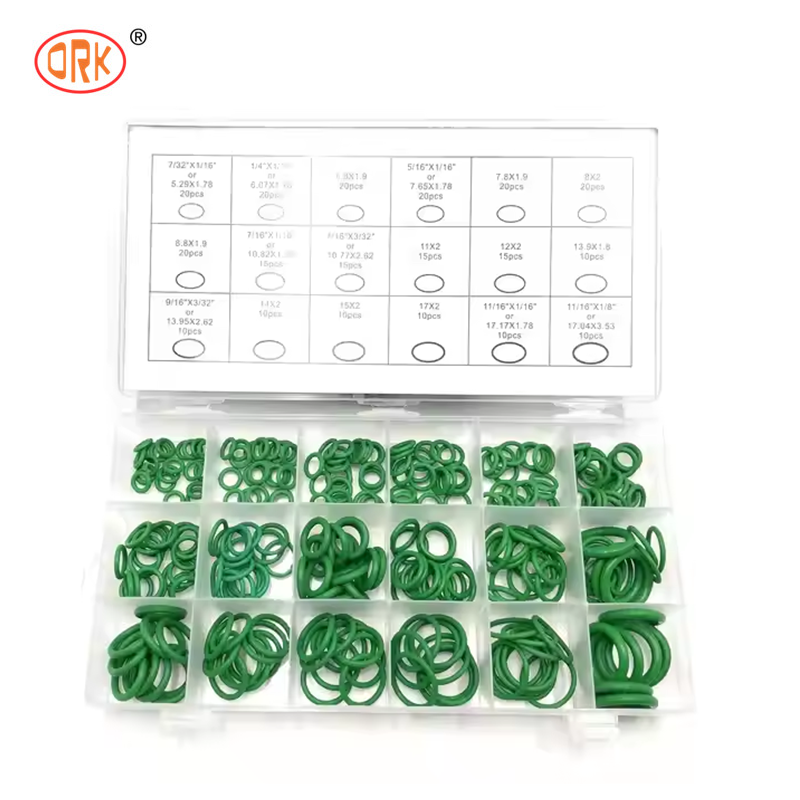

The Universal Rubber O-Ring Kit is an assorted O-ring repair set packed in a compartmented plastic storage case. It contains O-rings in many common sizes for quick replacement during equipment maintenance. We supply O-ring kits made of NBR, FKM, EPDM and Silicone rubber, with standard AS568 or metric sizes available. Custom assortments are acceptable. The kit is widely used for static and light dynamic sealing repair to stop liquid and gas leakage.
Key Features of the O-Ring Kit
- Assorted O-rings in multiple common sizes stored in a labelled compartment plastic case for easy classification and storage.
- Optional rubber materials: NBR, FKM, EPDM and Silicone to match different working media.
- Good elasticity, low compression set and reliable leakproof sealing performance.
- Portable design, convenient to carry to workshop or field maintenance sites.
- Reduces equipment downtime — ideal for emergency seal replacement.
- Standard size kits in stock; custom size combinations and custom box packaging supported.
Commonly Used O-Ring Kit Configurations
The two O-ring kits below are also commonly used. If you need other sizes, we can make customized kits.
BOX-G AS568 Sizes O-Ring Kit — 382 Pcs
Professional quality Nitrile rubber (NBR) | 382 Pcs
| Part NO. (AS 568) | ID (mm) | CS (mm) | Qty in Kit |
Part NO. (AS 568) | ID (mm) | CS (mm) | Qty in Kit |
| A 006 | 2.90 | 1.78 | 20 | A 211 | 20.22 | 3.53 | 10 |
| A 007 | 3.68 | 1.78 | 20 | A 212 | 21.82 | 3.53 | 10 |
| A 008 | 4.47 | 1.78 | 20 | A 213 | 23.39 | 3.53 | 10 |
| A 009 | 5.28 | 1.78 | 20 | A 214 | 24.99 | 3.53 | 10 |
| A 010 | 6.07 | 1.78 | 20 | A 215 | 26.57 | 3.53 | 10 |
| A 011 | 7.65 | 1.78 | 20 | A 216 | 28.17 | 3.53 | 10 |
| A 012 | 9.25 | 1.78 | 20 | A 217 | 29.74 | 3.53 | 10 |
| A 110 | 9.19 | 2.62 | 13 | A 218 | 31.34 | 3.53 | 10 |
| A 111 | 10.77 | 2.62 | 13 | A 219 | 32.92 | 3.53 | 10 |
| A 112 | 12.37 | 2.62 | 13 | A 220 | 34.52 | 3.53 | 10 |
| A 113 | 13.94 | 2.62 | 13 | A 221 | 36.09 | 3.53 | 10 |
| A 114 | 15.54 | 2.62 | 13 | A 222 | 37.69 | 3.53 | 10 |
| A 115 | 17.12 | 2.62 | 13 | A 325 | 37.47 | 5.33 | 7 |
| A 116 | 18.72 | 2.62 | 13 | A 326 | 40.64 | 5.33 | 7 |
| A 210 | 18.64 | 3.53 | 10 | A 327 | 43.82 | 5.33 | 7 |
Total Quantity: 382 Pcs
BOX-H Metric Sizes O-Ring Kit — 404 Pcs
Professional quality Nitrile rubber (NBR) | 404 Pcs
| ON Kit | ID (mm) | CS (mm) | Qty in Kit |
ON Kit | ID (mm) | CS (mm) | Qty in Kit |
| R_01 | 3.00 | 2.00 | 18 | R_16 | 20.00 | 3.00 | 12 |
| R_02 | 4.00 | 2.00 | 18 | R_17 | 22.00 | 3.00 | 12 |
| R_03 | 5.00 | 2.00 | 18 | R_18 | 24.00 | 3.00 | 12 |
| R_04 | 6.00 | 2.00 | 18 | R_19 | 25.00 | 3.00 | 12 |
| R_05 | 7.00 | 2.00 | 17 | R_20 | 27.00 | 3.00 | 12 |
| R_06 | 8.00 | 2.00 | 17 | R_21 | 28.00 | 3.00 | 12 |
| R_07 | 10.00 | 2.00 | 17 | R_22 | 30.00 | 3.00 | 12 |
| R_08 | 10.00 | 2.50 | 14 | R_23 | 32.00 | 3.00 | 12 |
| R_09 | 11.00 | 2.50 | 14 | R_24 | 33.00 | 3.00 | 12 |
| R_10 | 12.00 | 2.50 | 14 | R_25 | 35.00 | 3.00 | 12 |
| R_11 | 14.00 | 2.50 | 14 | R_26 | 36.00 | 3.00 | 12 |
| R_12 | 16.00 | 2.50 | 14 | R_27 | 38.00 | 3.00 | 12 |
| R_13 | 17.00 | 2.50 | 14 | R_28 | 38.00 | 4.00 | 9 |
| R_14 | 19.00 | 2.50 | 14 | R_29 | 42.00 | 4.00 | 9 |
| R_15 | 19.00 | 3.00 | 12 | R_30 | 45.00 | 4.00 | 9 |
Total Quantity: 404 Pcs
O-Ring Kit NBR90 — 397 Pcs
| Part NO. | Size (mm) | Qty |
Part NO. | Size (mm) | Qty |
| P3 | 2.8*1.9 | 18 | P22 | 21.8*2.4 | 14 |
| P4 | 3.8*1.9 | 18 | P22.4 | 22.1*3.5 | 10 |
| P5 | 4.8*1.9 | 18 | G25 | 24.4*3.1 | 11 |
| P6 | 5.8*1.9 | 18 | P25 | 24.7*3.5 | 10 |
| P7 | 6.8*1.9 | 18 | P26 | 25.7*3.5 | 10 |
| P8 | 7.8*1.9 | 18 | G30 | 29.4*3.1 | 11 |
| P9 | 8.8*1.9 | 18 | P30 | 29.7*3.5 | 10 |
| P10A | 9.8*2.4 | 14 | P32 | 31.7*3.5 | 10 |
| P11 | 10.8*2.4 | 14 | P34 | 33.7*3.5 | 10 |
| P12 | 11.8*2.4 | 14 | G35 | 34.4*3.1 | 11 |
| P14 | 13.8*2.4 | 14 | P36 | 35.7*3.5 | 10 |
| P16 | 15.8*2.4 | 14 | G40 | 39.4*3.1 | 11 |
| P18 | 17.8*2.4 | 14 | P40 | 39.7*3.5 | 10 |
| P20 | 19.8*2.4 | 14 | G45 | 44.4*3.1 | 11 |
| P21 | 20.8*2.4 | 14 | P48 | 47.7*3.5 | 10 |
Applications of O-Rings
O-rings are installed on a wide variety of machinery and equipment to seal at specified temperatures, pressures and across various liquid and gaseous media, whether at rest or in motion. They are widely used in machine, marine, automotive, aerospace, metallurgical, chemical, engineering, construction, mining, petroleum, plastic and agricultural machinery, as well as in a variety of instruments. O-rings are mainly used for static seals and reciprocating seals, and for low-speed rotary sealing devices. They are usually installed in a rectangular groove on the outer or inner circle of the sealing section. O-ring seals also provide good shock absorption in oil, acid, wear and other chemically aggressive environments, making them the most widely used seal in hydraulic and pneumatic drive systems.
Typical Application Areas
- Maintenance and emergency repair for hydraulic and pneumatic equipment, cylinders, pumps and valves.
- Automotive engine, cooling system, fuel system and vehicle component sealing replacement.
- Water treatment equipment, HVAC, pipeline and plumbing system maintenance.
- General industrial machinery, engineering equipment and workshop repair jobs.
- Field service, equipment overhaul and spare parts backup for mechanical systems.
Silicone O-Ring (MQ, VMQ, PVMQ) Material Description
Physically, silicone O-rings are based on silicon, an element derived from quartz. To create this class of synthetic elastomers, pendant organic groups such as methyl, phenyl and vinyl are attached to silicon atoms. Different additions of side chains achieve significant variations in properties. Silicone O-rings have excellent heat, ozone and corona resistance, good dielectric stability, and resistance to many oils, chemicals and solvents. Silicone O-rings maintain the best flexible properties at low temperatures but have low tensile strength and low wear and tear resistance.
Silicone O-rings may also come in a metal detectable variation while retaining the same qualities as the general silicone O-ring compound. RUICHEN Sealing supplies silicone O-rings that are compliant with FDA standards and are suitable for use in food and beverage production lines, as well as medical and pharmaceutical manufacturing. Both silicone and metal detectable silicone O-rings meet FDA compliance.
| Feature | Value |
|---|
| ISO designation | VMQ |
| Chemical name | Silicone rubber |
| Cross-linking | Peroxide cross-linked |
| Trade names | Silicone, Silicone |
| Media resistance | Medium media resistance |
| Temperature resistance | -60 °C to +200 °C |
| Standard color | Red |
| Standard hardness | 70 Shore A |
| Industries | Food industry, gas/water installation |
| Production | Compression molding and injection molding |
| Tolerances | DIN ISO 3601 |
| Durability | 10 years |
Available Rubber Materials & Compatibility
We can supply material as NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, ACM, SBR, FLS (FVMQ), etc. Different elastomers have different compatibility with various chemical elements and their characteristics. See the table below for more material knowledge to order the most cost-effective O-rings from us.
| Material | Hardness (Shore A) | Temperature (°C) | Main Color | Advantage | Price Level | Shelf Life (Years) |
| NBR / Nitrile / Buna-N | 60-90 | -40 to 120 | Black | Good oil resistance & low price | Low | 5-10 |
| HNBR / HSN | 60-90 | -40 to 150 | Green | Suitable for the cooling industry | High | 5-10 |
| FKM / FPM / Viton | 70-90 | -20 to 200 | Brown | High-temperature & chemical resistance | High | About 20 |
| EPDM / EPR | 50-90 | -50 to 150 | Black | Excellent weather & ageing resistance | Fair | 5-10 |
| VMQ / Silicone | 40-80 | -70 to 220 | Red | High-temperature & FDA food grade | High | About 20 |
| Neoprene / CR | 50-90 | -40 to 120 | Black | Versatility properties | Fair | 5-10 |
| FFKM | 70-90 | -10 to 320 | Black | Excellent chemical & high-temperature | Highest | About 20 |
| FVMQ / Fluorosilicone | 40-80 | -60 to 200 | Blue | Wider operating temperature range | High | About 20 |
| Aflas / FEPM | 40-90 | -2 to 230 | Black | Good chemical compatibility | Higher | About 20 |
| PU / Polyurethane | 60-90 | -40 to 90 | Natural | High strength and wear resistance | High | About 10 |
Certificates & Compliance
We hold the following certificates: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, IATF, FDA, REACH, ROHS, SGS, etc.
For the color of O-rings, we can make them according to customers' requirements. The table below shows the colorful O-rings we have made. If you need colored O-rings, please provide a Pantone number.
Related Rubber Seals We Produce
We can also produce automotive rubber seals, connector rubber seals, power tool rubber seals, valve rubber seals, pipe rubber seals, semiconductor rubber seals, hydraulic and pneumatic rubber seals, pump rubber seals, oil and gas seals, food grade rubber seals, medical rubber seals, chemical equipment rubber seals, and more.
Our Factory Capabilities
- Since 2006, focused on rubber seals, especially for auto parts.
- Certificates: ISO 9001, IATF 16949, ISO 14001, ISO 45001, ISO 13485.
- Two factories covering more than 18,000 m², including a 600 m² clean room, with 300 workers.
- More than 10,000 sets of molds, including about 5,000 sets for O-rings.
- O-ring series cover American standard (AS568), Japanese standard (JIS) and national standard (GB), plus a large number of customized non-standard parts.
- Materials: NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, SBR. The rubber materials used meet the requirements of ROHS 2.0 and REACH 235.
- Material certificates: FDA, ROHS, REACH, UL157, CP65, WRC, EN549, EN45545.
- Products are widely used in automotive parts, electronic connectors, valves, pneumatics, power tools, new energy, medical equipment, electronic products and other fields.
- The company has introduced HRP, ERP and other systems since its inception.
- Labor cost, raw material procurement, production process and product quality are comprehensively and scientifically controlled.
Quality Standards & Inspection
Ruichen always meets our customers' requirements. To ensure we produce high-quality O-rings, our company implements the following general standards:
- Raw material incoming inspection standard: ASTM D2000 & HG/T 2579-2008 & HG/T 2811-1996.
- Public O-ring dimensional tolerance: GB/T 3452.1-2005.
- N-level specification for O-ring appearance quality inspection: GB/T 3452.2-2007.
- Hardness measurement model: Micro O-Ring Testing (Type M system).
- Hardness using standard ASTM D2240 Rubber Standard Test Method (Shore A).
- Sampling inspection specification: GB/T 2828.1-20.
Quality Control Process
- Material Inspection: All raw materials are tested before storage, and a report on the corresponding material properties is issued. Compared with the raw material's own property report, if the two property values are consistent, the material can be put into storage.
- Model Inspection: After mold development or mold cleaning is completed on the machine, we test all specifications of the mold to ensure each cavity meets product specifications and quality.
- Production Inspection: During production, inspection personnel conduct timed semi-finished product inspections to ensure process quality and keep the defective rate within a reasonable range.
- Quality Control: The quality inspection department conducts a sampling inspection of each batch of products.
- Production Full Inspection: Optical inspection machines ensure the appearance and dimensions of the product are 100% qualified.
