Place of Origin:
Guangdong,China
Brand Name:
ORK
Certification:
FDA,ROHS,ISO9001,TS16949 ,REACH
Model Number:
AS568 series
Video
Video

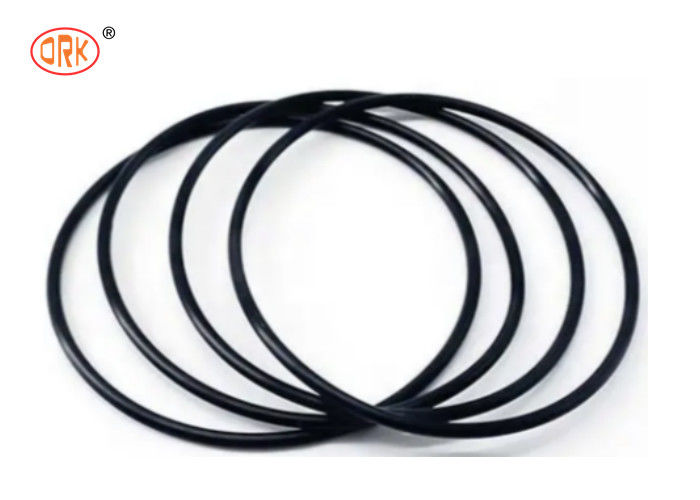

Black HNBR O Ring Excellent Ozone Resistance Hydrogenate Nitrile Seals for Aerospace
Introduction for O Ring
For o rings , you can give us any two sizes for OD ,ID ,CS ,and reuqirement about Material ,Then we can quote for you.
HNBR Rubber Features:
| Material | HNBR (Hydrogenate Nitrile) |
| Advantage | 1.Excellent Heat Resistance |
| 2.Excellent Low Temperature Resistance | |
| 3.Excellent Ozone Resistance | |
| 4.Excellent Weathering Resistance | |
| 5.Excellent Radiation Resistance | |
| 6.Good Tear Resistance | |
| Disadvantage | 1.Poor Oxygenated-Solvent Resistance |
| Temperature | -50℃-180℃ |
| Application | 1.For Air conditioning |
| 2.For power station | |
| 3.For washing machinery |
Hydrogenated Nitrile Butadiene Rubber (HNBR), also known as Highly SaturatedNitrile
(HSN), is special class of nitrile rubber (NBR) that has been hydrogenated to increase
saturation of the butadiene segment of the carbon polymer backbone. Subsequent
improvements to the material properties, over that of a nitrile rubber (NBR), include
greater thermal stability, broader chemical resistance, and greater tensile strength.
HNBR is classified by ASTM as a DH-type polymer. This classification indicates 150ºC
service temperature as well as less than 30% swell in IRM 903 oil. HNBR can be formulated
to meet application temperatures ranging between -50°C and 165ºC.
We can supply material: Silicone, NBR, EPDM, FKM&FKM, NR, HNBR, SBR, Neoprene, PU,
FFKM, etc . You can choose material as your requirements :
|
Material
|
Temperature | Characteristics | Application |
| NR | -50~80℃ | Good elasticity, tensile strength, wear resistance | Tires, cushions, seals, cable insulation sleeves |
| NBR | -40~120℃ | Oil resistance, wear resistance, high temperature and aging resistance | Oil resistant seals, diaphragms, hose and soft tubing |
| SIL/VMQ | -60~250℃ | High and low temperature resistance, non-toxic tasteless, aging resistance, insulation resistance, good thermal conductivity | Household articles, seals, shock absorbers, electronic accessories |
| EPDM | -40~150℃ | Weather resistance, ozone aging resistance, steam resistance, strong acid and alkali resistance | Phosphate hydraulic oil system seals, hose and auto parts |
| FKM/FPM | -40~240℃ | High temperature resistance, oil,chemical,aging resistance, good insulation, flame-retardant, less breathabilities |
Heat and oil resistant sealing parts, rubber hoses |
| SBR | -50~110℃ | The property is close to NR. good wear and aging resistance. heat resistance is better than NR, but short service life |
Tire, rubber sheet, rubber hose, rubber adhesive tape |
| HNBR | -40~150℃ | Not easy to wear and deform, oil resistance | Aerospace, automobile, oilfield drilling, petrochemical, textile and printing |
| CR | -40~120℃ | Weather and ozone aging resistance, self extinguishing, good tensile strength, elongation and elasticity, good adhesion with metal and fabric |
Sealing ring, rubber tube, coating, wire insulation layer, adhesive tape and prepared adhesive |
| FVMQ |
-40~177℃ -40~232℃( Dry environment) |
Resistant to strong acid, high and low temperature, oil, high pressure and aging | Mechanical seal, petroleum industry, chemical industry, building materials |
| FFKM |
250℃(regular) 320-330℃ (formula) |
Good performance, used in harsh environments, resistant to various solvents, strong acid and alkali, and good elasticity | High quality and expensive seal rings. |
| PU | -40~90℃ | Not easy to wear, withstand high pressure, not easy to aging and hydrolysis | Building, automobile, aviation industry, thermal insulation, household goods, household appliances |
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staff. The company has two branches
in Guangdong and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao municipal government and fully enjoy all the
preferential policies for economic development zone. We will always take "best quality, best service" as our
mission, and make progress together with you, harmony and mutual win!
Certificates
Progress
Inquiry Guide
In order to you can get faster and more accurate service, please send an inquiry according to this page
Enquiries parameters: size, material, hardness, color, tolerance, working environment, purchase quantity , etc.
1. Size:drawing or sample.
2. Material: Silicone, NBR, EPDM, FKM&FKM, NR, HNBR, SBR, Neoprene, PU,FFKM, etc
3. Hardness: 30 Shore A~90 Shore A
4. Color: according to your request, the most common color is black. The price of the white color products
is litter higher than others.
5. Tolerance: if there is special size requirements, please mention in enquiries. Otherwise, we will be in accordance
with the international standard tolerance execution.
6. Working environment: in order to produce more accurate production you need, please be sure to inform products
work environment. Such as motion situation(is sports or stationary, whether there is friction), contact medium
(exposure to corrosive gas, water vapor, acidic or alkaline liquid), etc.
7. Purchase quantity: please offer purchase quantity per month/year.
8. Customer information: in order to facilitate we understand more about your company, and contact you timely,
please provide your company's name, phone number, E-mail contacts.
Send your inquiry directly to us
