Place of Origin:
Guangdong,China
Brand Name:
ORK
Certification:
FDA,ROHS,ISO9001,TS16949 ,REACH
Model Number:
AS568 series

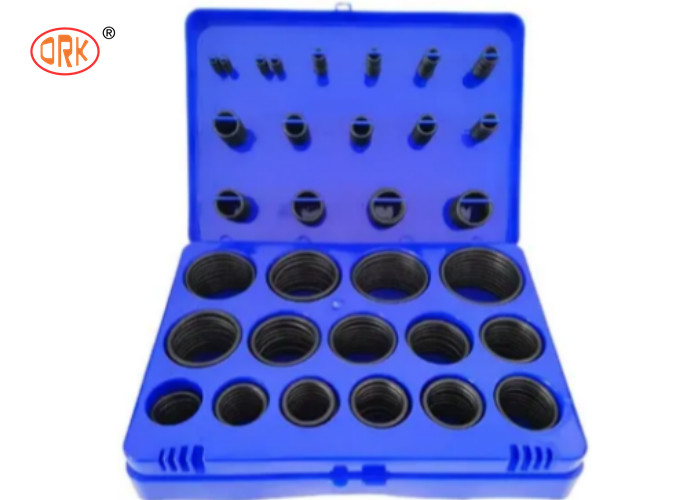

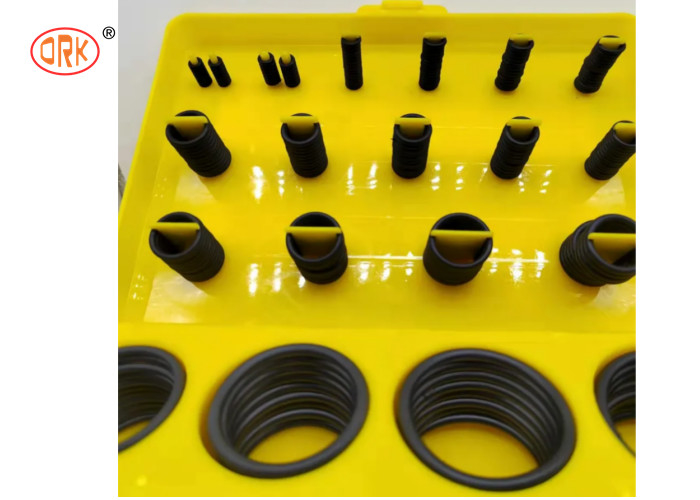

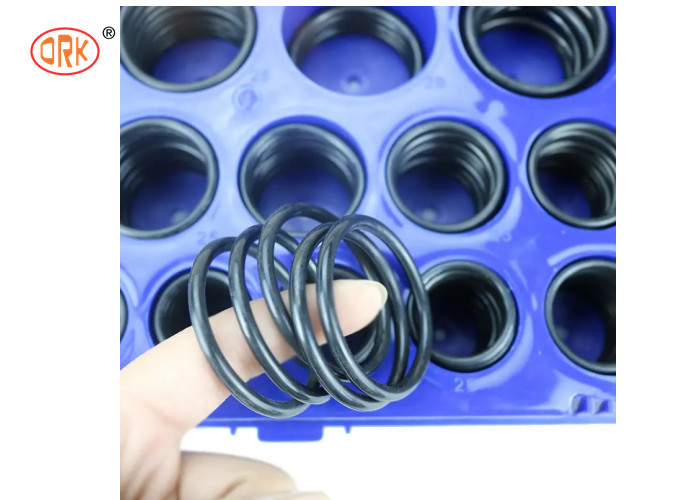

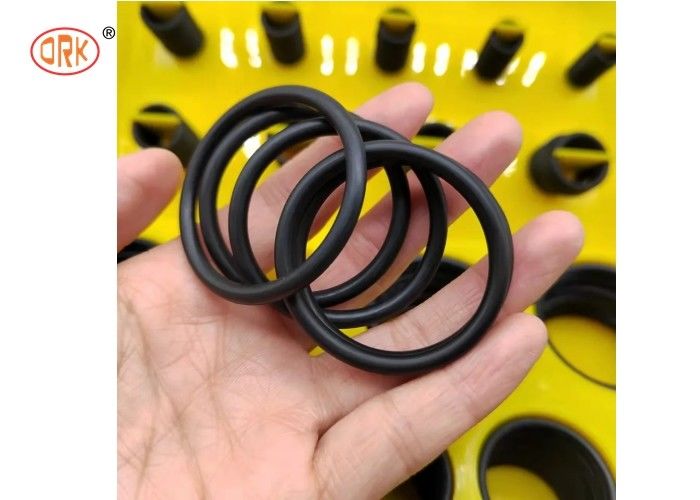

Blue 404pcs O Seal Ring Box Silicone 30 Sizes O Ring kit Manufacturer
Introduction for O Ring kit
The o ring sizes in the kit as below(or as you customized ) :
| SPEC : METRIC O 404pcs kit | |||
| 序号 | SIZE/mm | QTY | |
| ID/mm | CS/mm | PC | |
| 1 | 3 | 2 | 18 |
| 2 | 4 | 2 | 18 |
| 3 | 5 | 2 | 18 |
| 4 | 6 | 2 | 18 |
| 5 | 7 | 2 | 17 |
| 6 | 8 | 2 | 17 |
| 7 | 14 | 2.5 | 14 |
| 8 | 12 | 2.5 | 14 |
| 9 | 11 | 2.5 | 14 |
| 10 | 10 | 2.5 | 14 |
| 11 | 10 | 2 | 17 |
| 12 | 16 | 2.5 | 14 |
| 13 | 17 | 2.5 | 14 |
| 14 | 19 | 2.5 | 14 |
| 15 | 19 | 3 | 12 |
| 16 | 38 | 3 | 12 |
| 17 | 38 | 4 | 9 |
| 18 | 42 | 4 | 9 |
| 19 | 45 | 4 | 9 |
| 20 | 36 | 3 | 12 |
| 21 | 35 | 3 | 12 |
| 22 | 33 | 3 | 12 |
| 23 | 32 | 3 | 12 |
| 24 | 30 | 3 | 12 |
| 25 | 20 | 3 | 12 |
| 26 | 22 | 3 | 12 |
| 27 | 24 | 3 | 12 |
| 28 | 25 | 3 | 12 |
| 29 | 27 | 3 | 12 |
| 30 | 28 | 3 | 12 |
Silicone material
*Service Temperature
For Silicones the service temperatures are from -60 C to 225 C. Some special types can be used in
extreme temperature up to 300 C and down to -100 C.
*Application
Silicone rubber performs well under environmental and temperature extremes. It is usually applied in
automotive and aerospace industries where flexibility and longevity are important. It is also a suitable
material for parts that need FDA approval for food handling equipment and appliances.
We supply NBR O Ring kit , FKM O Ring kit , Silicone O Ring kit , EPDM O Ring kit etc.
Every material has its advantages .You can choose as your requirements .
For the o rings in the box , you can also choose sizes what you need.And the color of the box ,
you can choose what you like .
Peculiarity Of O Ring Cord:
1) NBR O Ring kit:Good chemical resistance to mineral oils and greases,hydraulic
oils H, HL, HLP,non-inflammable hydraulic pressure fluids HFA, HFB, HFC to approx.
+50°C and water to max. +80°C.
2) FKM O Ring kit: Good chemical resistance to mineral oils and greases, synthetic
oils and greases,engine, transmission and ATF oils to approx. +150°C
3) EPDM O Ring Cord:
Good resistance to hot water and steam, detergents, caustic potash solutions, silicone
oil and greases,many polar solvents, and many diluted acids and chemicals, along with
a high level of ozone resistance.
4) Silicone O Ring kit
Good resistance to water (up to 100 °C), aliphatic engine and transmission oils, animal
and plant oils and fats..
The below is the contrast of different material for o ring kit
| Material | Temperature | Characteristics | Application |
| NR | -50~80℃ | Good elasticity, tensile strength, wear resistance | Tires, cushions, seals, cable insulation sleeves |
| NBR | -40~120℃ | Oil resistance, wear resistance, high temperature and aging resistance | Oil resistant seals, diaphragms, hose and soft tubing |
| SIL/VMQ | -60~250℃ | High and low temperature resistance, non-toxic tasteless, aging resistance, insulation resistance, good thermal conductivity | Household articles, seals, shock absorbers, electronic accessories |
| EPDM | -40~150℃ | Weather resistance, ozone aging resistance, steam resistance, strong acid and alkali resistance | Phosphate hydraulic oil system seals, hose and auto parts |
| FKM/FPM | -40~240℃ | High temperature resistance, oil,chemical,aging resistance, good insulation, flame-retardant, less breathabilities |
Heat and oil resistant sealing parts, rubber hoses |
| SBR | -50~110℃ | The property is close to NR. good wear and aging resistance. heat resistance is better than NR, but short service life |
Tire, rubber sheet, rubber hose, rubber adhesive tape |
| HNBR | -40~150℃ | Not easy to wear and deform, oil resistance | Aerospace, automobile, oilfield drilling, petrochemical, textile and printing |
| CR | -40~120℃ | Weather and ozone aging resistance, self extinguishing, good tensile strength, elongation and elasticity, good adhesion with metal and fabric |
Sealing ring, rubber tube, coating, wire insulation layer, adhesive tape and prepared adhesive |
| FVMQ |
-40~177℃ -40~232℃( Dry environment) |
Resistant to strong acid, high and low temperature, oil, high pressure and aging | Mechanical seal, petroleum industry, chemical industry, building materials |
| FFKM |
250℃(regular) 320-330℃ (formula) |
Good performance, used in harsh environments, resistant to various solvents, strong acid and alkali, and good elasticity | High quality and expensive seal rings. |
| PU | -40~90℃ | Not easy to wear, withstand high pressure, not easy to aging and hydrolysis | Building, automobile, aviation industry, thermal insulation, household goods, household appliances |
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staff. The company has two branches
in Guangdong and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao municipal government and fully enjoy all the
preferential policies for economic development zone. We will always take "best quality, best service" as our
mission, and make progress together with you, harmony and mutual win!
Certificates
Progress
Inquiry Guide
In order to you can get faster and more accurate service, please send an inquiry according to this page
Enquiries parameters: size, material, hardness, color, tolerance, working environment, purchase quantity , etc.
1. Size:drawing or sample.
2. Material: Silicone, NBR, EPDM, FKM&FKM, NR, HNBR, SBR, Neoprene, PU,FFKM, etc
3. Hardness: 30 Shore A~90 Shore A
4. Color: according to your request, the most common color is black. The price of the white color products
is litter higher than others.
5. Tolerance: if there is special size requirements, please mention in enquiries. Otherwise, we will be in accordance
with the international standard tolerance execution.
6. Working environment: in order to produce more accurate production you need, please be sure to inform products
work environment. Such as motion situation(is sports or stationary, whether there is friction), contact medium
(exposure to corrosive gas, water vapor, acidic or alkaline liquid), etc.
7. Purchase quantity: please offer purchase quantity per month/year.
8. Customer information: in order to facilitate we understand more about your company, and contact you timely,
please provide your company's name, phone number, E-mail contacts.
Send your inquiry directly to us
