Black 382pcs Leakproof NBR O Rings in Red Blue Yellow O Ring Kits for Truck

Black 382pcs Leakproof NBR O Rings in Red Blue Yellow O Ring Kits for Truck

Place of Origin:

Guangdong,China

Brand Name:

ORK

Certification:

FDA,ROHS,ISO9001,TS16949

Model Number:

Customized

Contact Us
Request A Quote
Product Details
DESCRIPTION:
O Ring Kit
Material:
NBR
Hardness:
30~90 Shore
Color:
Black
Application:
TRUK ,AIR CONTIONING
Payment & Shipping Terms
Minimum Order Quantity
80 USD
Price
0.001 USD ~1.5 USD/piece
Packaging Details
PE bag inside , Carton Outside
Delivery Time
7-45 work days
Payment Terms
T/T, L/C,Paypal
Supply Ability
30000000 PCS / Month
Product Description



Black 382pcs Leakproof NBR O Rings in Red Blue Yellow O Ring Kits for Truck





O Ring KIT

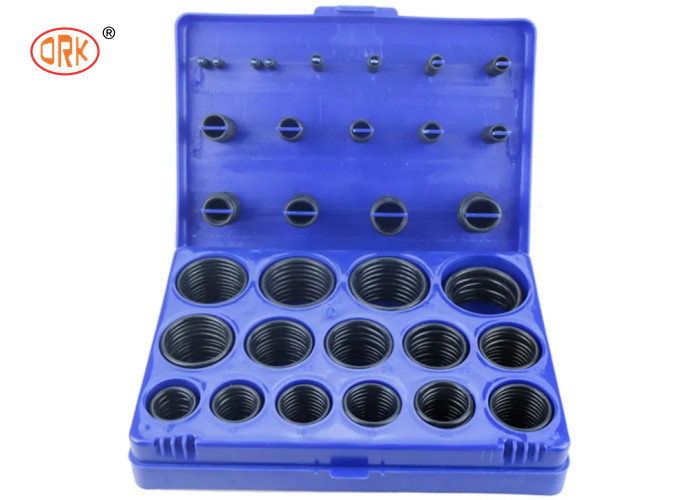

Black 382pcs Leakproof NBR O Rings in Red Blue Yellow O Ring Kits for Truck 0



The o ring sizes in the kit as below(or as you customized ) :

ITEM Standard SIZE QTY
      ID/mm CS/mm PC
1 AS 568 006 2.9 1.78 20
2 AS 568 007 3.68 1.78 20
3 AS 568 008 4.47 1.78 20
4 AS 568 009 5.28 1.78 20
5 AS 568 010 6.07 1.78 20
6 AS 568 011 7.65 1.78 20
7 AS 568 012 9.25 1.78 20
8 AS 568 110 9.19 2.62 13
9 AS 568 111 10.77 2.62 13
10 AS 568 112 12.37 2.62 13
11 AS 568 113 13.94 2.62 13
12 AS 568 114 15.54 2.62 13
13 AS 568 115 17.12 2.62 13
14 AS 568 116 18.72 2.62 13
15 AS 568 210 18.64 3.53 10
16 AS 568 211 20.22 3.53 10
17 AS 568 212 21.82 3.53 10
18 AS 568 213 23.39 3.53 10
19 AS 568 214 24.99 3.53 10
20 AS 568 215 26.57 3.53 10
21 AS 568 216 28.17 3.53 10
22 AS 568 217 29.74 3.53 10
23 AS 568 218 31.34 3.53 10
24 AS 568 219 32.92 3.53 10
25 AS 568 220 34.52 3.53 10
26 AS 568 221 36.09 3.53 10
27 AS 568 222 37.69 3.53 10
28 AS 568 325 37.47 5.33 7
29 AS 568 326 40.64 5.33 7
30 AS 568 327 43.82 5.33 7



Function of the rubber o ring kit



O-Rings are used in sanitary pipeline systems for the Auto, Machinery, Food, Dairy, Beverage,

Pharmaceutical and Bio-Tech industries. Rubber Fab offers a full line of AS568 dash numbers,

metric, and specialty o-ring sizes that are manufactured using EPDM, NBR, FKM Fluoroelastomer,

Buna-N, PTFE, Silicone and so on.





The o-rings used in cylinder, pump, railcars, truck, washing machine, instrument and meter, mine

equipment, pipeline, household appliances, automobile, steamboat, industrial electrical equipment,

building door& window, construction machinery, construction bridges and tunnel.





1. mechanical sealing, pressure vessel ,gas compressor, reaction vessel ,heat





exchanger, boiler, filter and so on.





2.it can be used for all kinds of electronic products in a wide range ,such as camera, mobile phone,

printer, computer.





3. Used for automobile windows and doors, etc...





4. Silk screen printing, spray coating, laser etching, back-lighted, hard/epoxy coating keypads.









NBR (Nitrile Rubber/Buna-N) material



Material NBR(Nitrile Rubber/Buna-N)
Advantage 1,Excellent Abrasion-Resistance,Good Rebound Resistance
2,Good Tensile Strength and Elongation
3,Excellent Animal and Vegetable Oil Resistance
4,Good Oil and Fuel Resistance
5,Good Water Resistance
Disadvantage 1,Poor Oxygenated-Solvent Resistance
2,Poor Ozone Resistance
Temperature -40-120, -50-150(special formula)
Application 1,Fuel tank, lubricating oil tank and oil in the hydraulic oil, gas, water, silicone grease, silicone oil and other fluid medium rubber parts, especially the sealing parts.
2,It is currently the most widely used, the lowest cost of rubber seals.



We supply NBR O Ring kit , FKM O Ring kit , Silicone O Ring kit , EPDM O Ring kit etc.

Every material has its advantages .You can choose as your requirements .



For the o rings in the box , you can also choose sizes what you need.And the color of the box ,

you can choose what you like .

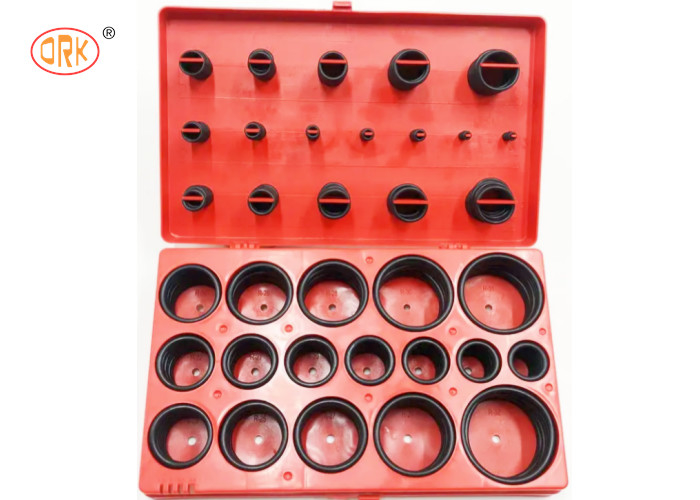

Black 382pcs Leakproof NBR O Rings in Red Blue Yellow O Ring Kits for Truck 1

Peculiarity Of O Ring Cord:

1) NBR O Ring kit:Good chemical resistance to mineral oils and greases,hydraulic oils H, HL, HLP,

non-inflammable hydraulic pressure fluids HFA, HFB, HFC to approx. +50°C and water to max. +80°C.



2) FKM O Ring kit: Good chemical resistance to mineral oils and greases, synthetic oils and greases,

engine, transmission and ATF oils to approx. +150°C



3) EPDM O Ring Cord:
Good resistance to hot water and steam, detergents, caustic potash solutions, silicone oil and greases,

many polar solvents, and many diluted acids and chemicals, along with a high level of ozone resistance.

4) Silicone O Ring kit
Good resistance to water (up to 100 °C), aliphatic engine and transmission oils, animal and plant oils

and fats..




Our Factory

Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staff. The company has two

branches in Guangdong and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui

Chen Sealing Co., Ltd..In recent years, the company has been supported by ShangRao municipal government

and fully enjoy all the preferential policies for economic development zone. We will always take "best quality,

best service" as our mission, and make progress together with you, harmony and mutual win!

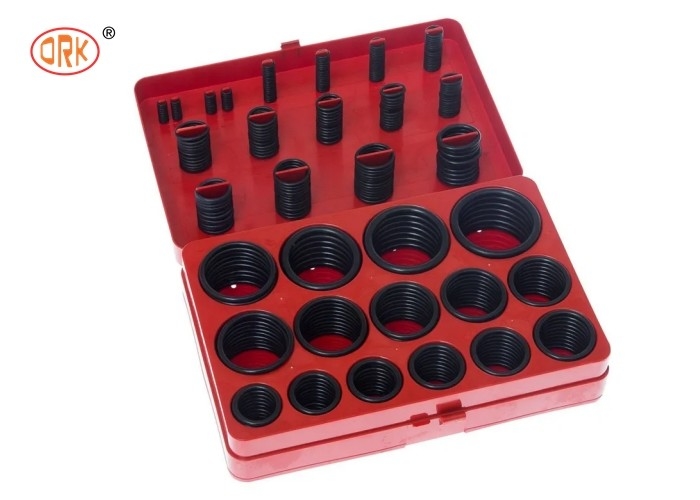

Black 382pcs Leakproof NBR O Rings in Red Blue Yellow O Ring Kits for Truck 2



Certificates



1, IATF16949



2.ISO9001



3.ISO14000





Progress

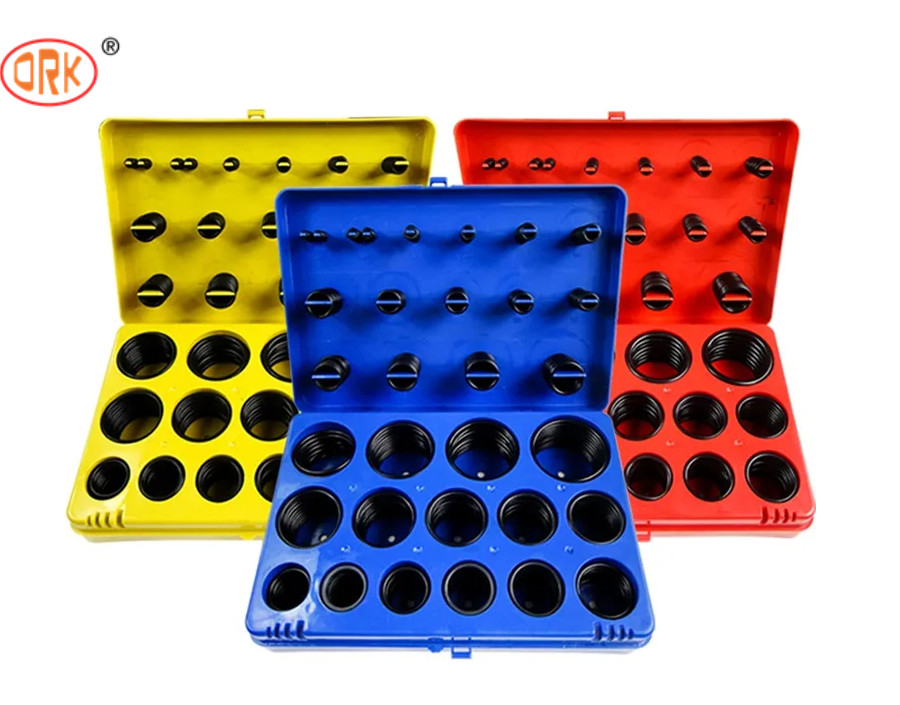

Black 382pcs Leakproof NBR O Rings in Red Blue Yellow O Ring Kits for Truck 3
