Place of Origin:
Guangdong,China
Brand Name:
ORK
Certification:
FDA,ROHS,ISO9001,TS16949,REACH
Model Number:
Customized
Video
Video

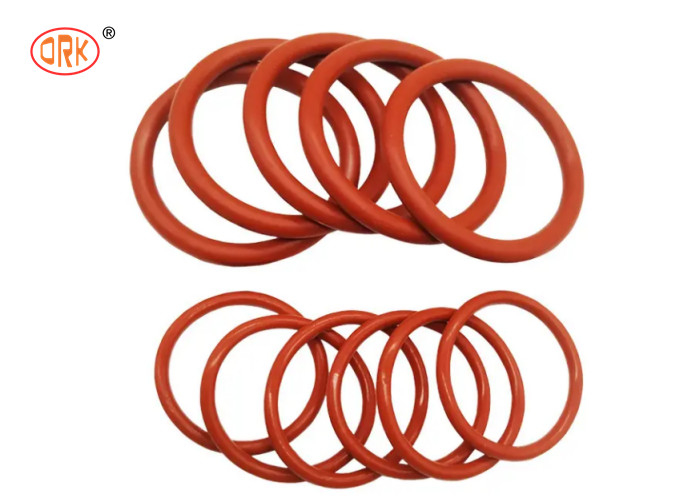

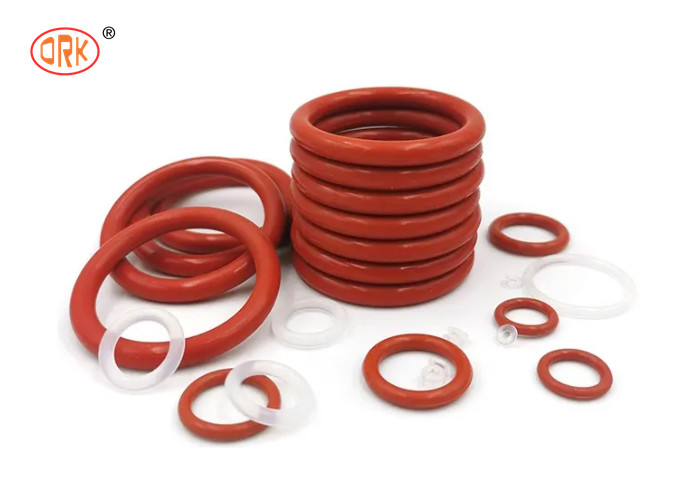

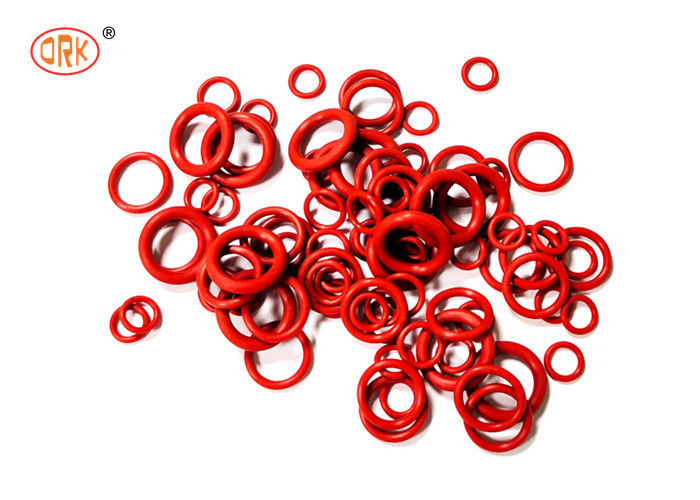

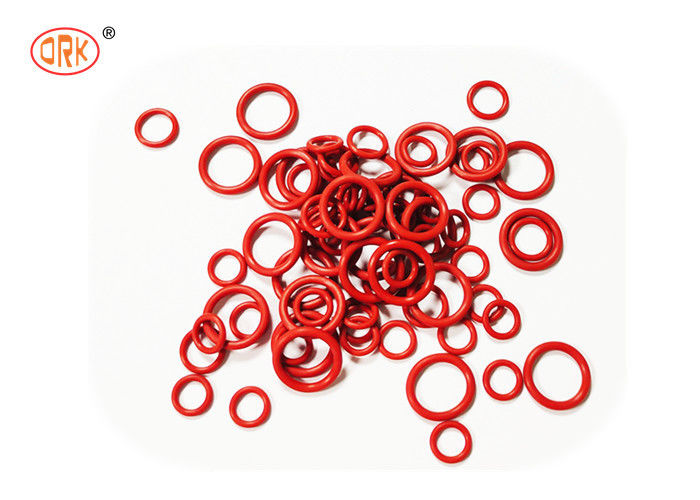

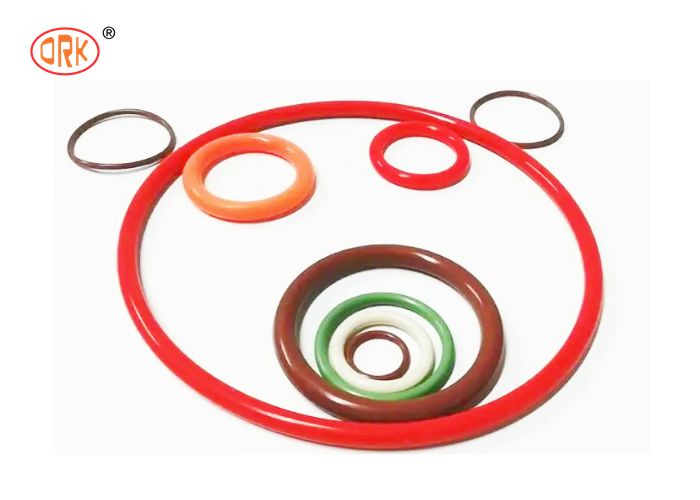

Reddish Oil Resistance NBR 70 Hydraulic O Rings 2mm Distributor
NBR(nitrile butadiene rubber)
*Service Temperature
For NBR the service temperature can be designed from -50 C to 100 C or up to 120 C depending on
different acrylonitrile content and formula.
*Application
NBR compounds have excellent resistance to abrasion, non-polar oils and solvent, water and permeation
(higher acrylonitrile content will be better). NBR also can be used in conditions of dilute acids, alkalis and
salt solution at low temperatures.
| Product Name | Reddish Oil Resistance NBR 70 Hydraulic O Rings |
| Materials | NBR, HNBR, EPDM, SILICONE, FKM, FLS, FFPM, PU ,CR ,IIR ,ACM ,SBR |
| Temperature | NBR(-50~120°C),FFKM(-20~320°C) |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, |
| Cerfiticate | ISO 9001 ,TS , REACH ,ROHS ,FDA |
| Hardness | 30-90 shores A |
| Color | Red, Black, White, blue, green, Clear, etc |
| Size | Any size, Customized/standard and nonstandard |
| Sample time | If stock, within 3 days after payment |
| Delivery time | 7-15 days by express after payment |
| Shipping | Small quantity: UPS/FeDex/DHL express |
| Customized | OEM & ODM are welcomed |
| packing | plastic bag&carton box or according to your requirements |
| Application | chemical industry, petroleum industry, medical technique, food industry, sewage-disposal industry, |
NBR/Nitrile Rubber O Ring Product introduction
The standard of O-rings mainly includes: national standard GB1235-76, national standard
GB3452.1-92; Japanese standard PTYPE, GTYPE, STYPE, SS/VTYPE, FTYPE; American standard
AS568, British standard series; European standard series
O-ring technical requirements include appearance requirements, dimensional requirements, and
material physical performance requirements.
Appearance requirements in line with GB/T3452.2-2007
Material requirements are in line with HG/T2579-2008
Dimensional requirements are in line with GB/T3452.1-2005
O-ring application range:
O-rings are suitable for mounting on a wide range of mechanical equipment and function in
a static or moving state at specified temperatures, pressures, and in different liquid and gaseous
media. In the machine tools, ships, automobiles, aerospace equipment, metallurgical machinery,
chemical machinery, engineering machinery, construction machinery, mining machinery, petroleum
machinery, plastic machinery, agricultural machinery, and various types of instruments, a large number
of types of seals are applied. element.
O-rings are mainly used for static and reciprocating seals. For rotary motion seals, only for low speed
rotary seals. O-rings are generally mounted in a groove with a rectangular cross section on the outer or
inner circle to seal.
O-ring seals still have good sealing and shock absorption in oil, acid, alkali, grinding and chemical corrosion.
Therefore, O-rings are the most widely used seals in hydraulic and pneumatic transmission systems.
Inquiry Guide
In order to you can get faster and more accurate service, please send an inquiry according to this page
Enquiries parameters: size, material, hardness, color, tolerance, working environment, purchase quantity , etc.
1. Size:drawing or sample.
2. Material: Silicone, NBR, EPDM, FKM&FKM, NR, HNBR, SBR, Neoprene, PU,FFKM, etc
3. Hardness: 30 Shore A~90 Shore A
4. Color: according to your request, the most common color is black. The price of the white color products
is litter higher than others.
5. Tolerance: if there is special size requirements, please mention in enquiries. Otherwise, we will be in accordance
with the international standard tolerance execution.
6. Working environment: in order to produce more accurate production you need, please be sure to inform products
work environment. Such as motion situation(is sports or stationary, whether there is friction), contact medium
(exposure to corrosive gas, water vapor, acidic or alkaline liquid), etc.
7. Purchase quantity: please offer purchase quantity per month/year.
8. Customer information: in order to facilitate we understand more about your company, and contact you timely,
please provide your company's name, phone number, E-mail contacts.
