ISO3601 Black FKM NBR O Ring Abrasion Resistance Factory Supply

ISO3601 Black FKM NBR O Ring Abrasion Resistance Factory Supply

  • ISO3601 Black FKM NBR O Ring Abrasion Resistance Factory Supply
  • ISO3601 Black FKM NBR O Ring Abrasion Resistance Factory Supply
ISO3601 Black FKM NBR O Ring Abrasion Resistance Factory Supply
Product Details:
Place of Origin: Guangdong,China
Brand Name: ORK
Certification: ISO9001,TS16949
Model Number: ISO3601
Payment & Shipping Terms:
Minimum Order Quantity: 100 dollers
Price: 0.001 USD ~ 0.1 USD / PCS
Packaging Details: PE inside,Carton outside
Delivery Time: 5-15days
Payment Terms: T/T, L/C
Supply Ability: 60000000 PCS / Month
Contact Now
Detailed Product Description
Size: All Standard Material: NBR
Color: Black,blue,red,gray,White Hardness: 30-90 Shore
Temperature: -20C°~120C° Function: Sealing
High Light:

ISO3601 NBR Oring

,

Abrasion Resistance FKM Oring

,

AS568 Standard FKM Oring

ISO3601 FKM NBR O-Ring Factory Supply Abrasion-Resistance Black



Except silicone material ,we have many other rubber material .and different material with different properties ,pls
refer to the below excel list :

  FKM product Silicone product NBR product HNBR product EPDM product NR product Peoprene product

Abbreviation
FKM silicone NBR HNBR EPDM Nature rubber Neoprene

Durometer(shoreA)
60-90 30-90 20-95 50-90 30-90 20-90 20-95

Tensile(P.S.I)
500-2000 200-1500 200-3000 2600 500-2500 500-3500 500-3000

Elongation(Max.%)
300 700 600 530 600 700 600

Compression set
good Good Good Excellent Good Excellent Good

Resilience-Rebound
Fair Good Good Excellent Good Excellent Excellent

Abrasion Resistance
Good Fair to poor Excellent Excellent Good Excellent Excellent

Tear Resistance
Good poor Good Excellent Fair Excellent Good

Solvent Resistant
Excellent poor Good to excellent Good Poor Poor Fair

Oil Resistant
Excellent Fair to poor Good to excellent Excellent Poor Poor Fair






ORK offers the seal industry's largest inventory of o-rings, which includes every standard AS568 and ISO 3601 size, and the following:

  • Inside Diameter from 0.031 in (0.794 mm) to 26.0 in (66.04cm)
  • Outside Diameter from 0.094 in (2.38 mm) to 26.5 in (67.31cm)
  • Cross Section from 0.031 in (0.794 mm) to 0.250 in (6.35mm)

In addition to standard imperial and metric sizes, ORK also carries a wide variety of non-standard sizes. With over 8,000 different o-ring sizes in-stock, we have exactly what you are looking for and we can assure immediate delivery of any size in large or small quantities.

O-Ring Sizing Guides

  • AS568 Standard O-Ring Sizes
  • ISO 3601 Standard Metric O-Ring Sizes
  • All Standard and Non-Standard O-Ring Sizes

Still have questions about finding a standard or non-standard o-ring size? Feel free to either contact us

Key Use(s): Oil resistant applications of all types. Low temperature military uses. Off-road equipment. Automotive, marine, aircraft fuel systems. Can be compounded for FDA applications.

Temperature Range:
Standard Compound: -30° to +120°F
Hardness (Shore A): 40 to 90.
Features: Comprised of the copolymer butadiene and acrylonitrile, in varying proportions. Compounds can be formulated for service temperature ranging from -85°F to +275°F. Use of Carboxylated Nitrile can have superior abrasion resistance, while still having improved oil resistance.
Limitations: Nitrile compounds are attached by small amounts of Ozone. Phthalate type plasticizers are commonly used in compounding Nitrile Rubber. These plasticizers can migrate out and cause problems with certain plastics. Also, new regulations on certain phthalates have limited their use.

Products Show:

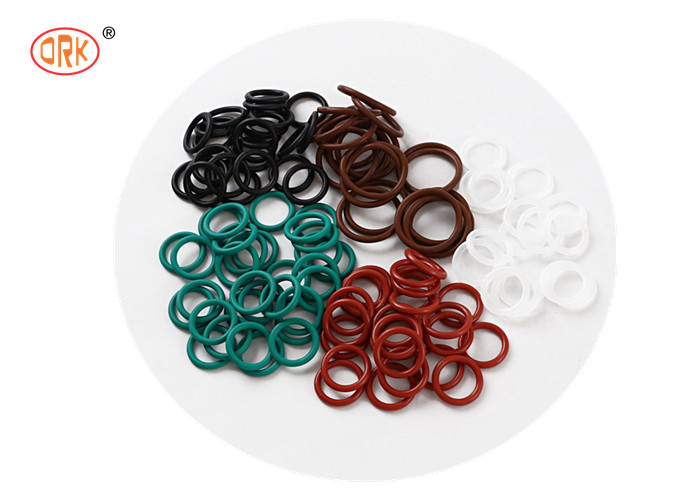

ISO3601 Black FKM NBR O Ring Abrasion Resistance Factory Supply 0

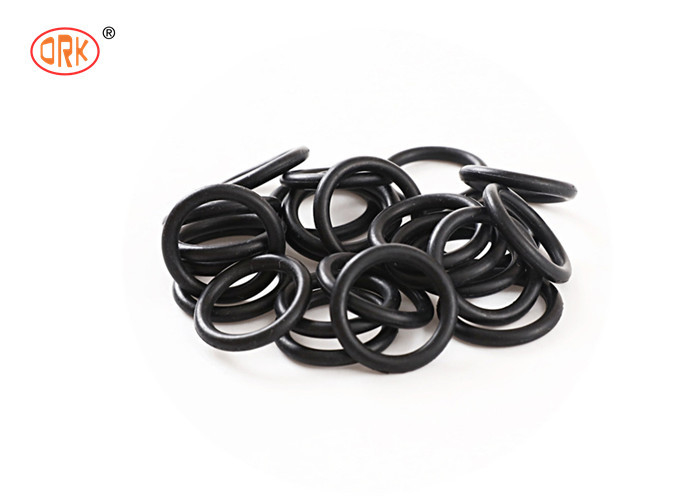

ISO3601 Black FKM NBR O Ring Abrasion Resistance Factory Supply 1


Process Flow:



Raw material test → Prescribe → Mixing Material → Cutting Material → First Cure → First Part Inspection → Casual Inspection

→ Burr Dealing → Eye Inspection → IPQC → Washing or Grinding → Post Cure → FQC → Packing

ISO3601 Black FKM NBR O Ring Abrasion Resistance Factory Supply 2



Packing & Delivery:



Packing: PE bag inside, Carton outside.

Carton size: 46cm*34cm*34cm,40cm*34cn*34cm 51cm*34cm*34cm, 29cm*23cm*19cm

Delivery: Large quantity by ship, small quantity by air or express.

ISO3601 Black FKM NBR O Ring Abrasion Resistance Factory Supply 3



FAQ:
1,Are you manufacture or trading company ?
We are manufacture, we have two factories, one located in Shangrao City,

Jiangxi Province, one in Dongguan City, Guangdong Province
2,Can I get samples from you ?
Of course, you can. If the samples you need we have in stock, you can get them for free,
only need to pay for the express cost.
3,What's the term of payment ?
Amount < US$2000, 100% paid in advance by paypal or T/T;
Amount >= US$2000, 30% paid in advance, 70% balance before shipment by T/T.
4,Can you produce OEM products ?
Yes, we can produce products by your drawing or samples.
5,What's your MOQ ?
If we have the products in stock , the quantity by your requirement, If we don't have them in stock:
NBR, SIL, SBR, EPDM, NR: 100 US$; PU, HNBR, FKM: 150 US$
