Heat Resistant Square Silicon Seals And Gasket / Waterproof Rubber Seal Product

Heat Resistant Square Silicon Seals And Gasket / Waterproof Rubber Seal Product

TS16949 Silicon Seals And Gasket

Heat Resistant Silicone Seal Gasket

Silicone Rubber Seal Gasket Customized

Place of Origin:

Guangdong,China

Brand Name:

ORK

Certification:

FDA,ROHS,ISO9001,TS16949

Model Number:

Customized

Contact Us
Request A Quote
Product Details
Material:
NBR,Silicone
Color:
Black And So On...
Hardness:
30-90 Shore
Size:
Customized
Certification:
SGS,FDA,ISO/TS16949
Shape:
Customized
Main Products:
Oil Seal,Rubber Gasket
Payment & Shipping Terms
Minimum Order Quantity
100 USD
Price
0.0013 USD ~ 0.9 USD / PCS
Packaging Details
PE inside,Carton outside
Delivery Time
7-45 work days
Payment Terms
T/T, L/C
Supply Ability
30000000 PCS / Month
Product Description



Heat Resistant Square Silicon Seals Rubber Gasket / Waterproof Rubber Seal Product



Material Description

Silicone rubbers are widely used in industry and there are multiple formulations. Silicone rubbers are often one or two part polymers, and may contain fillers to improve properties or reduce cost. Silicone rubber is generally non-reactive, stable, and resistant to extreme environments and temperatures from -40 °C to +220 °C while still maintaining its useful properties. Due to these properties and its ease of manufacturing and shaping, silicone rubber is used in silicone gaskets, seals and orings and can be found in a wide variety of products such as:

  • Automotive applications
  • Many cooking, baking, and food storage products
  • Apparel including undergarments, sportswear, and footwear
  • Electronics equipment
  • Home repair and hardware
  • A host of unseen applications.

Key Use(s): Static seals in extreme temperature situations. Seals for medical devices, compatible with FDA regulations.

Temperature Range:
Standard Compound: -40° to +220°C

Hardness (Shore A): 20 to 90

Features: Phenyl (PVMQ) based silicones can perform to -85°F. New polymers can take short term to 600°F.

Limitations: Generally, low abrasion and tear resistance, and high friction characteristics preclude silicones from effectively sealing some dynamic applications. Silicones are also highly permeable to gases and are generally not recommended for exposure to ketones (MEK,acetone) or concentrated acids.


Except silicone material ,we have many other rubber material .and different material with different properties ,pls
refer to the below excel list :

  FKM product Silicone product NBR product HNBR product EPDM product NR product Peoprene product

Abbreviation
FKM silicone NBR HNBR EPDM Nature rubber Neoprene

Durometer(shoreA)
60-90 30-90 20-95 50-90 30-90 20-90 20-95

Tensile(P.S.I)
500-2000 200-1500 200-3000 2600 500-2500 500-3500 500-3000

Elongation(Max.%)
300 700 600 530 600 700 600

Compression set
good Good Good Excellent Good Excellent Good

Resilience-Rebound
Fair Good Good Excellent Good Excellent Excellent

Abrasion Resistance
Good Fair to poor Excellent Excellent Good Excellent Excellent

Tear Resistance
Good poor Good Excellent Fair Excellent Good

Solvent Resistant
Excellent poor Good to excellent Good Poor Poor Fair

Oil Resistant
Excellent Fair to poor Good to excellent Excellent Poor Poor Fair




Our factory introduction:
We mainly specialize in producing different types of rubber grommet ,especially SBR grommet. o-ring repair kits, excavator o-ring kits, rubber washer, customized rubber products.The materials are available in NBR, FKM, EPDM,MVQ and HNBR.
We have more than one thousand available o-ring moulds and can open new moulds as customers' drawings. We can also provide different types of hardware tools kits like copper washer kits,snap ring assortment kits, spring assortment, Hose clamp set and so on.
Our products can meet CE and ROHS requirements and have a big market around the world.

You can see our factory enviroment from the picture

Grey Excellent Rebound Resistance Silicone Rubber Cup Cover For Pneumatic Seals 0


Products Show:

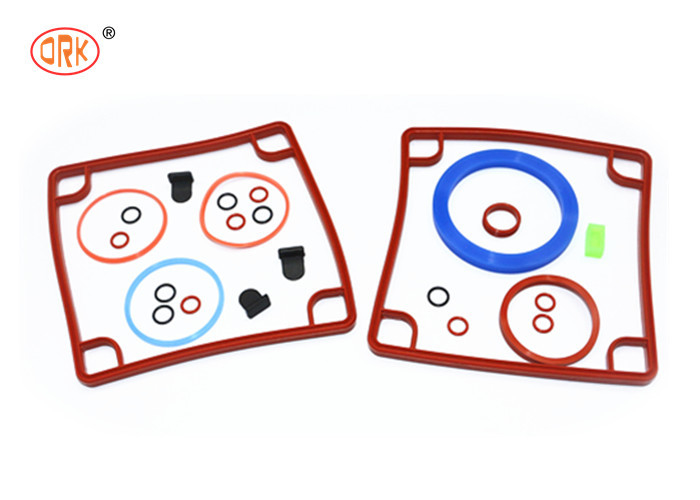

Heat Resistant Square Silicon Seals And Gasket / Waterproof Rubber Seal Product 1

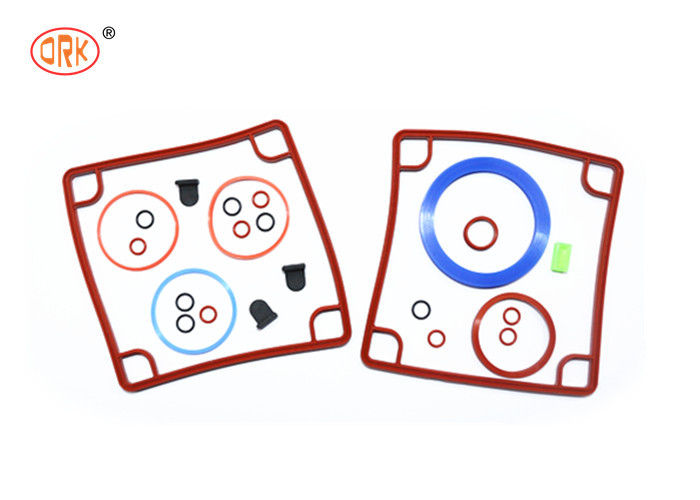

Heat Resistant Square Silicon Seals And Gasket / Waterproof Rubber Seal Product 2





Process Flow:



Raw material test → Prescribe → Mixing Material → Cutting Material → First Cure → First Part Inspection → Casual Inspection

→ Burr Dealing → Eye Inspection → IPQC → Washing or Grinding → Post Cure → FQC → Packing

Silicone Hole Stopper Rubber Pipe Plug For Dust Proof/NBR FKM EPDM 3



Packing & Delivery:



Packing: PE bag inside, Carton outside.



Silicone Hole Stopper Rubber Pipe Plug For Dust Proof/NBR FKM EPDM 4



FAQ:

1,Are you manufacture or trading company ?
We are manufacture, we have two factories, one located in Shangrao City,

Jiangxi Province, one in Dongguan City, Guangdong Province
2,Can I get samples from you ?
Of course, you can. If the samples you need we have in stock, you can get them for free,
only need to pay for the express cost.
3,What's the term of payment ?
Amount < US$2000, 100% paid in advance by paypal or T/T;
Amount >= US$2000, 30% paid in advance, 70% balance before shipment by T/T.
4,Can you produce OEM products ?
Yes, we can produce products by your drawing or samples.
5,What's your MOQ ?
If we have the products in stock , the quantity by your requirement, If we don't have them in stock:
NBR, SIL, SBR, EPDM, NR: 100 US$; PU, HNBR, FKM: 150 US$
