|Place of Origin:||Dongguan, China|
|Certification:||FDA , RoHs, Reach, ISO9001, IATF16949|
|Model Number:||Different Sizes|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Roll up on Paper Reel, rolls put into cartons|
|Delivery Time:||10 to 30 days according to quantity|
|Payment Terms:||L/C, T/T, Paypal|
|Supply Ability:||1000000 meters per month|
|Hardness:||50 Shore A , 70 Shore A||Packing:||N Meters Per Roll|
|Temperature:||-50 ℃ To 180 ℃||Standard:||Standard And Customized|
MVQ Silicone Tubes,
70 Shore A Silicone Tubes,
Silicone Tubes For Fluid Transmission

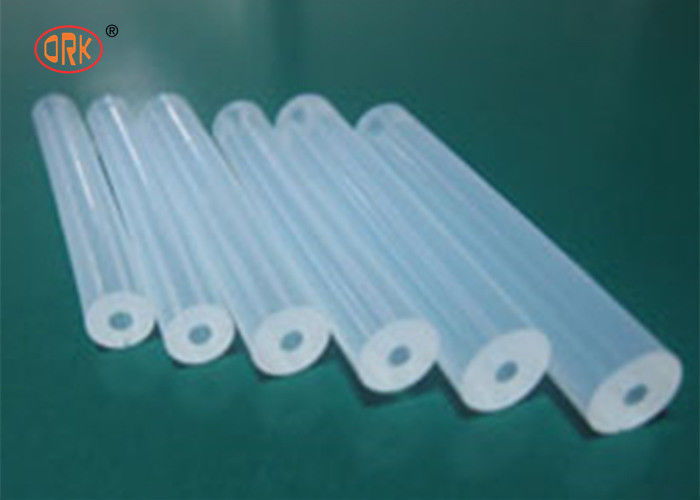

Transparent 70 Shore A MVQ Silicone Tubes For Fluid Transmission
We supply all sorts of silicone MVQ tubs, can be made by different colors, normally white translucent. Customers' designs and samples or drawings are welcomed. Pls feel free to contact me if you are interested in our products.
About silicone, the main silicone chain is made of silicon (-si-o-si).Excellent heat resistance, cold resistance, ozone resistance, oxygen resistance to aging. Good electrical insulation performance.Tensile strength is worse than general rubber and does not have oil resistance.
|Advantage||1, Excellent Rebound Resistance|
|2, Excellent Oxygen and Ozone Resistance|
|3, Excellent Weathering and Heat Resistance|
|4, Excellent Heat and Low Temperature Resistance|
|5, Good heat insulation and heat dissipation.|
|6, Good electrical insulation|
|Disadvantage||1, Poor Aliphatic-solvent Resistance|
|2, Poor Alkaline Resistance and poor oil resistance|
|Application||1, the household appliances industry seal or rubber parts, such as electric kettle, electric irons, microwave oven rubber parts.|
|2, The electronics industry seal or rubber parts, such as mobile phone keys, shock pad DVD, cable joint seal etc.|
|3, Contact with the human body on various types of products on the seal, such as water bottles, water dispensers|
white translucent, but also can be c
Some standard dimensions as bellow:
|Inner Diameter/mm||Tolerance/mm||Wall Thickness/mm||Tolerance/mm|
|3.00||+/- 0.15||1.50 or 2.00||+/- 0.10|
|4.00||+/- 0.15||1.50 or 2.00||+/- 0.10|
|5.00||+/- 0.15||1.50 or 2.00||+/- 0.10|
|6.00||+/- 0.20||1.50 or 2.00||+/- 0.10|
|7.00||+/- 0.20||1.50 or 2.00||+/- 0.10|
|8.00||+/- 0.20||1.50 or 2.00||+/- 0.10|
|9.00||+/- 0.20||1.50 or 2.00||+/- 0.10|
Products Name: Silicone Tubing / Silicone Tube Color: white transparent
RuiChen Sealing Co., Ltd was established in 2006, with nearly 200 employees.The company is located in GuangDong province and JiangXi province, be named as, DongGuan RuiChen Sealing Co., Ltd. And ShangRao RuiChen Sealing Co., Ltd.
RuiChen is a reputable company that has passed the ISO9001 and ISO/IATF16949 quality system certification.Since its establishment, the company has always focused on the research and production of rubber seals, there are more than 6800 molds of o-rings and other kinds of sealing ring, especially o-rings, containing almost the basic common size.Our products are widely used in all kinds of auto parts, with the maturing of new energy technology and new energy cars put into use, our company is focus on the development and production of sealing products associated with new energy.
RuiChen aims to meet the needs of customers,meanwhile,we have good faith,keep a contract and guarantee the quality of products.In 2009, the company launched enterprise resource planning (ERP) system to monitor production plan, delivery date, quality statistics and analysis, etc., to further improve the overall control and customer service.It provide strong guarantee for long-term and stable service to our customers.
Raw material test → Prescribe → Mixing Material → Cutting Material → First Cure → First Part Inspection → Casual Inspection → Burr Dealing → Eye Inspection → IPQC → Washing or Grinding → Post Cure → FQC → Packing
Packing & Delivery:
Packing: PE bag inside, Carton outside.
Carton size: 46cm*33cm*33cm, 51cm*33cm*33cm, 29cm*23cm*19cm
Delivery: Large quantity by ship, small quantity by air or express.
1, Are you manufacture or trading company ?
We are manufacture, we have two factories, one located in Shangrao City, Jiangxi Province, one in Dongguan City, Guangdong Province
2, Can I get samples from you ?
Of course, you can. If the samples you need we have in stock, you can get them for free,
only need to pay for the express cost.
3, What's the term of payment ?
Amount < US$2000, 100% paid in advance by paypal or T/T;
Amount >= US$2000, 30% paid in advance, 70% balance before shipment by T/T.
4, Can you produce OEM products ?
Yes, we can produce products by your drawing or samples.
5, What's your MOQ ?
If we have the products in stock , the quantity by your requirement, If we don't have them in stock:
NBR, SIL, SBR, EPDM, NR: 100 US$; PU, HNBR, FKM: 150 US$
