ISO9001 Automotive 70 Shore A Silicone Molded Connector Silicone Seals

ISO9001 Automotive 70 Shore A Silicone Molded Connector Silicone Seals

SIL Molded Rubber Parts

80 Shore A Molded Rubber Parts

IATF16949 Molded Rubber Parts

Place of Origin:

DONGGUAN, CN

Brand Name:

ORK

Certification:

ISO9001, IATF16949, RoHs, Reach

Model Number:

Customized

Contact Us
Request A Quote
Product Details
Dimensions:
According To Samples Or Drawing
Material:
Silicone Rubber
Hardness:
Duro 35~80 Shore A
Color:
Black/Blue/Red, Other Colors As You Like
Special Requirement:
As Customer Required
Payment Term:
100% In Advance / 30% Deposit, 70% Balance Before Shipment
Performance:
Excellent Heat Resistance
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
PE bag inside, carton outside,cartons on pallets
Delivery Time
15 days for molds and samples, 20 to 35 days for mass production
Payment Terms
T/T, L/C,Paypal
Supply Ability
100000 pcs/week
Product Description



ISO9001 Automotive 70 Shore A Silicone Molded Connector Silicone Seals


Automotive connector seal usually made by soft nitrile rubber or silicone, can be black blue red and other colors. Nitrile is cheaper than silicone, but silicone performs better in high temperature and low temperature resistance.The main fuction of connector seal is for protecting the cables from water and dusty.



Material SIL(Silicone Rubber)
Advantage 1,Excellent Rebound Resistance
2,Excellent Oxygen and Ozone Resistance
3,Excellent Weathering and Heat Resistance
4,Excellent Heat and Low Temperature Resistance
5,Good heat insulation and heat dissipation.
6,Good electrical insulation
Disadvantage 1,Poor Aliphatic-solvent Resistance
  2,Poor Alkaline Resistance
Temperature -60℃-200℃, -60℃-250℃(special formula)
Application 1,the household appliances industry seal or rubber parts, such as electric kettle, electric irons, microwave oven rubber parts.
2,The electronics industry seal or rubber parts, such as mobile phone keys, shock pad DVD, cable joint seal etc.
3,Contact with the human body on various types of products on the seal, such as water bottles, water dispensers



Custom Process:


First, please send me 2D drawing, 3D drawing or sample of what you need. From the drawing or sample we can know the dimensions and materials. And then if any special requirement, please also let me know.

Second, we make molds/toolings and samples, send the samples to customers for testing.

Third, after the samples confirmed, we start mass production, during production, our QC department will control the quality. Then pack and ship the goods by air or by sea. Production flow as bellow:

Raw material test → Prescribe → Mixing Material → Cutting Material → First Cure →
First Part Inspection → Casual Inspection → Burr Dealing → Eye Inspection → IPQC →
Washing or Grinding → Post Cure → FQC → Packing
ISO9001 Automotive 70 Shore A Silicone Molded Connector Silicone Seals 0

Last but not least, after-service. when the products have quality problem, then you can tell me, we will solve the problems together.

Materials Description:

We usually make the rubber circular connector seal by silicone. Then the orperating temperature can be -50℃~200℃.
And sometimes the material can also be nitrile rubber as nitrile rubber is much cheaper.



MATERIALS TEST REPORT
S7006 (SILICONE 70SH RED) COMPOUND
ASTM D2000 M5GE 706 A19 B37 EO16 EO36 F19
Press Cure                                                           Post Cure
Sheet : 5min 175℃ Sheet : 4 hrs 200℃
Button : 10 min 175℃ Button : 4 hrs 200℃
ORIGINAL PROPERTIES SPECIFICATION TEST RESULT ASTM TEST METHOD JUDGE
HARDNESS SHORE A 70°±5 72 D2240 OK
TENSILE STRENGTH, MPA, MIN ≥6 7.46 D412 OK
ULTIMATE ELONGATION, %, MIN ≥150 218.41 D412 OK
SPECIFIC GRAVITY (g/cm3)   1.21 D297 OK

HEAT RESISTANCE 70 H . AT 225℃(A19)     D573
CHANGE IN HARDNESS, POINTS  +10 5 OK
CHANGE IN TENSILES STRENGTH, % -25 -20.11 OK
CHANGE IN ULTIMATE ELONGATION,MAX % -30 -24.99 OK

COMPRESSION SET, MAX, 22H AT 175℃ (B37 ) ≤25 20.19 D395 OK

FLUID RESISTANCE NO.1 OIL, 70H AT 150℃ (EO16)     D471
CHANGE IN HARDNESS, POINTS  0~--15 -5 OK
CHANGE IN TENSILES STRENGTH, MAX % -20 2.96 OK
CHANGE IN ULTIMATE ELONGATION,MAX % -20 -17.51 OK
CHANGE IN VOLUME % 0~+10 5.76 OK

FLUID RESISTANCE NO.3 OIL, 70H AT 150℃ (EO36)     D471
CHANGE IN HARDNESS, POINTS  -30 -17 OK
CHANGE IN VOLUME % +60 41.56 OK

LOW-TEMPERATURE BRITTLENESS NONBRITTLE
AFTER 3MIN AT -55°C(F19) NONBRITTLE PASS D2137 OK


Image Show:

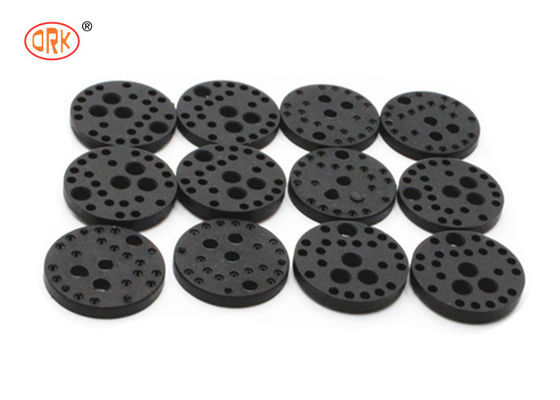

Item Name: Automotive Connector Seal;   Material:Silicone rubber;     Color: Black/blue/Red or other color
ISO9001 Automotive 70 Shore A Silicone Molded Connector Silicone Seals 1
ISO9001 Automotive 70 Shore A Silicone Molded Connector Silicone Seals 2
FAQ:
1,Are you manufacture or trading company ?
We are manufacture, we have two factories, one located in Shangrao City, Jiangxi Province,

Another one in Dongguan City, Guangdong Province
2,Can I get samples from you ?
Of course, you can. If the samples you need we have in stock, you can get them for free,
only need to pay for the express cost.

3,What's the term of payment ?
Amount < US$2000, 100% paid in advance by paypal or T/T;
Amount >= US$2000, 30% paid in advance, 70% balance before shipment by T/T.

4,Can you produce OEM products ?
Yes, we can produce products by your drawing or samples.

5,What's your MOQ ?
If we have the products in stock , the quantity by your requirement, If we don't have them in stock:
NBR, SIL, SBR, EPDM, NR: 100 US$; PU, HNBR, FKM: 150 US$
