IATF16949 Tear Resistant NBR Nitrile Molded Rubber Parts

IATF16949 Tear Resistant NBR Nitrile Molded Rubber Parts

IATF16949 Tear Resistant NBR Nitrile Molded Rubber Parts
IATF16949 Tear Resistant NBR Nitrile Molded Rubber Parts
IATF16949 Tear Resistant NBR Nitrile Molded Rubber Parts
Product Details:
Place of Origin: DONGGUAN, CN
Brand Name: ORK
Certification: ISO9001, IATF16949, RoHs, Reach
Model Number: Custom
Payment & Shipping Terms:
Minimum Order Quantity: 100 USD
Price: Negotiable
Packaging Details: PE bag inside, carton outside,cartons on pallets
Delivery Time: 15 to 45 days according to quantity
Payment Terms: T/T, L/C,Paypal
Supply Ability: 10000 pcs/week
Contact Now
Detailed Product Description
Dimension: According To Samples Or Drawing Material: NBR/Nitrile Rubber
Hardness: Duro 35~90 Shore A Color: Black
Special Requirement: As Customer Required Packing: PE Bag Inside, Carton Outside
High Light:

Nitrile Molded Rubber Parts

,

NBR Molded Rubber Parts

,

IATF16949 Molded Rubber Parts


Black NBR Nitrile Rubber Molded Rubber Products Mold Rubber Parts

We can make molded  rubber products/ mold rubber parts according to samples or drawings.

First, please  send me 2D drawing, 3D drawing or sample of what you need. From the drawing or sample we can know the dimensions and materials. And then if any special requirement, please also let me know.

Second, we make mold and samples, send the samples to customers for testing.

Third, after the samples confirmed, we start mass production, during production, our QC department will control the quality. Then pack and ship the goods by air or by sea. Production flow as bellow:

Raw material test → Prescribe → Mixing Material → Cutting Material → First Cure →
First Part Inspection → Casual Inspection → Burr Dealing → Eye Inspection → IPQC →
Washing or Grinding → Post Cure → FQC → Packing

Last but not least, after-service. when the products have quality problem, then you can tell me, then we will solve the problems together.

Materials Description:

We usually  make the molded rubber products/ mold rubber parts by NBR/ nitrile rubber, which are very cheap and perform good. But when the orperating temperature is very low or very high , then we suggest silicone as the material.


ItemNBRNRSILICONE
Operating Temperature-40℃~100℃-50℃~100℃-60℃~200℃
ReboundGoodExcellentLimited
Tear ResistanceGoodExcellentPoor
Weathering ResistanceLimitedLimitedExcellent
Oil & Fuel ResistanceExcellentPoorLimited


From the table, we can choose the material according to the operating conditions.

You can check the physical properties as in the datesheet bellow of NBR (nitrile rubber)


MATERIALS TEST REPORT
N7001 (NBR 70 BLACK) COMPOUND
ASTM D2000 M2BG 714 A14 B14 EO14 EO34 EA14 F17
Press CurePost Cure
Sheet : 5min 170℃Sheet : 1 hrs 120℃
Button : 10 min 170℃Button : 1 hrs 120℃
ORIGINAL PROPERTIESSPECIFICATIONTEST RESULT ASTM TEST METHOD
HARDNESS SHORE A70°±570D2240
TENSILE STRENGTH, MPA, MIN≥1416.47D412
ULTIMATE ELONGATION, %, MIN≥250336.00D412
SPECIFIC GRAVITY (g/cm3) 1.23D297

HEAT RESISTANCE 70 H . AT 100℃(A14)  D573
CHANGE IN HARDNESS, POINTS+/-53
CHANGE IN TENSILES STRENGTH, %+/-15-8.65
CHANGE IN ULTIMATE ELONGATION,MAX %-15-13.15

COMPRESSION SET, MAX, 22H AT 100℃(B14 )≤2512.66D395

FLUID RESISTANCE NO.1 OIL, 70H AT 100℃ (EO14)  D471
CHANGE IN HARDNESS, POINTS-5~+102
CHANGE IN TENSILES STRENGTH, MAX %-257.10
CHANGE IN ULTIMATE ELONGATION,MAX %-45-10.63
CHANGE IN VOLUME %-10~+5-2.89

FLUID RESISTANCE NO.3 OIL, 70H AT 100℃ (EO34)  D471
CHANGE IN HARDNESS, POINTS-10~+5-5
CHANGE IN TENSILES STRENGTH, MAX %-45-9.90
CHANGE IN ULTIMATE ELONGATION,MAX %-45-6.92
CHANGE IN VOLUME %0~+259.31

WATER RESISTANCE:100℃,70H(EA14)  D471
CHANGE IN HARDNESS, POINTS±10+2
CHANGE IN VOLUME %±15-2.17

LOW-TEMPERATURE BRITTLENESS NONBRITTLE
AFTER 3MIN AT -40°C (F17)NONBRITTLEPASSD2137



Image Show:

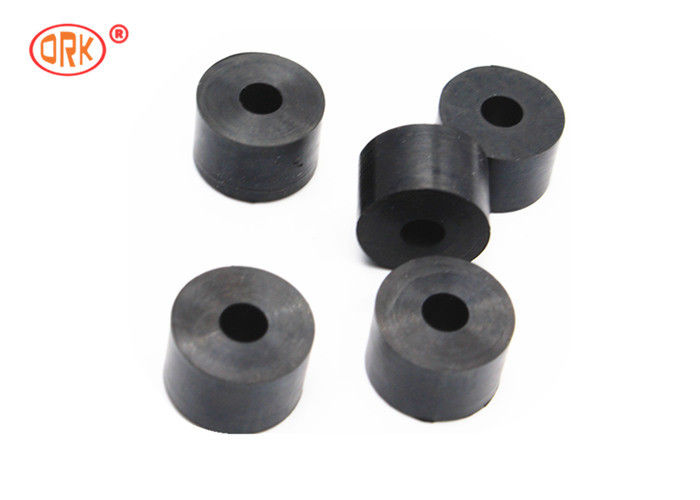

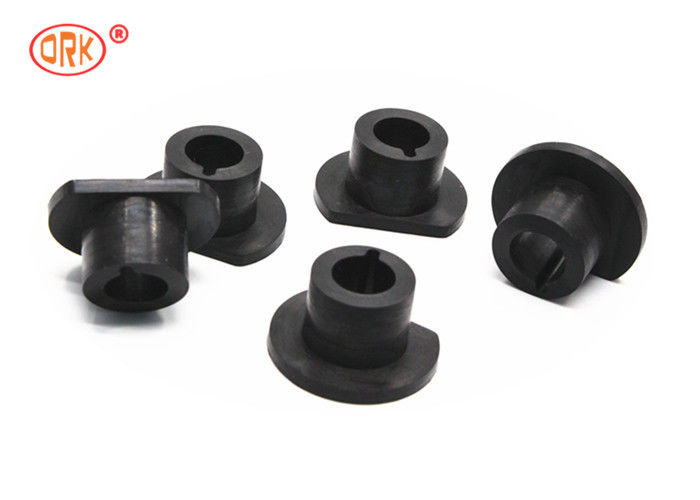

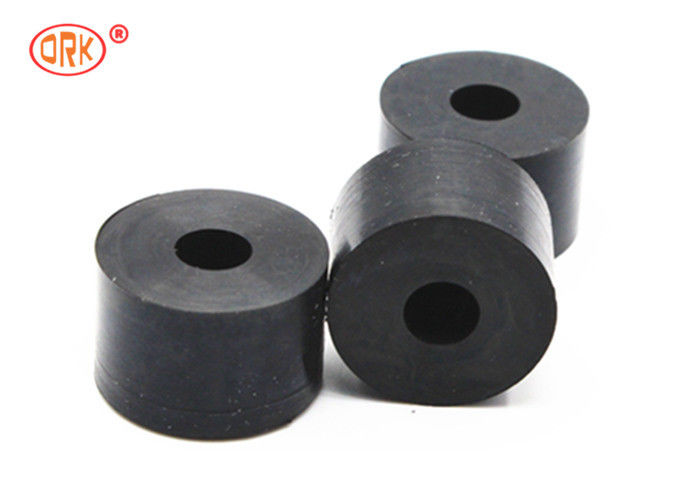

Item Name: molded rubber products/ mold rubber parts;   Material:NBR/ nitrile rubber;   Color: Black, custom

IATF16949 Tear Resistant NBR Nitrile Molded Rubber Parts 0
IATF16949 Tear Resistant NBR Nitrile Molded Rubber Parts 1
FAQ:
1,Are you manufacture or trading company ?
We are manufacture, we have two factories, one located in Shangrao City, Jiangxi Province, one in Dongguan City, Guangdong Province

2,Can I get samples from you ?
Of course, you can. If the samples you need we have in stock, you can get them for free,
only need to pay for the express cost.

3,What's the term of payment ?
Amount < US$2000, 100% paid in advance by paypal or T/T;
Amount >= US$2000, 30% paid in advance, 70% balance before shipment by T/T.

4,Can you produce OEM products ?
Yes, we can produce products by your drawing or samples.

5,What's your MOQ ?
If we have the products in stock , the quantity by your requirement, If we don't have them in stock:
NBR, SIL, SBR, EPDM, NR: 100 US$; PU, HNBR, FKM: 150 US$
