Place of Origin:
Guangdong,China
Brand Name:
ORK
Certification:
FDA,ROHS,ISO9001,TS16949
Model Number:
Customized

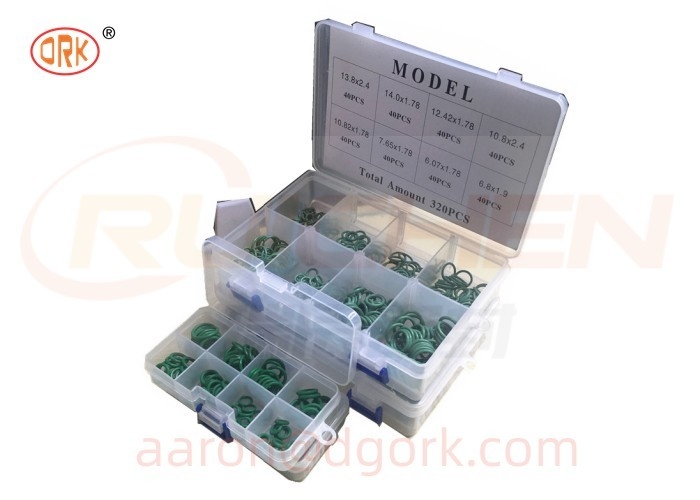

ORK 5A 240 Pcs Nitrile Rubber O Ring Kits For Air-Conditioning Compressor
Description:
1) Model No.: NBR O ring kits 240Pc.
2) Material : NBR(FKM, EPDM, MVQ,Silicone available)
3) Color of o-ring : black or customized color.
4) Color of box : blue, yellow,red,green or customized color.
5) Spec: 32 sizes, total 240 pcs.
6) Metric or Inch standard.
7) 20 or 24 sets per one carton.
Applied industry:
extensively used in all kinds of industry.such as chemical industry,petroleum
industry,medical technique,food industry,sewage-disposal industry,steel industry,semi-conduct
industry and so on.
Applied equipment:
mechanical sealing,pressure vessel,gas compressor,reaction vessel,heat
exchanger,boiler,filter and so on.
Main advantage:
First,excellent anti-chemical character.It almost applies to all mediums.
Second, temperature range is very wide.(Around -30°C to 200°C)
Third,anti- compressibility function is very good.
Four,long service life.
Our advantage:
1) We have more than 10 years' experience in rubber seal industry.
2) Our O-rings can meet Taiwan quality Standard, But price much better than Taiwan supplier !
3) OEM/ODM Service are available.We can design and produce variours Non-standard Rubber Parts according to your requirement.
4) All products are 100% inspected before shipment !
O-Ring Kits Size:
We can provide O-Ring kits in standard size 382Pcs,386Pcs,407Pcs,419Pcs per kit or 225Pcs,222Pcs,235Pcs,374Pcs,190Pcs,125Pcs and many other non-standard sizes.
We can also follow your assortment requirements.
|
NBR 70 TEST REPORT ASTM D2000 M2BG 714 B14 EO14 EF11 EF21 EA14 F17 |
|||
|
PROPERITIES |
SPECIFICATION |
TEST RESULT |
TEST METHOD |
|
Hardness shore A |
70±5 |
72 |
D2240 |
|
Tensile MPA Min |
14 |
14.5 |
D12 |
|
Elongation % Min |
250 |
315 |
D412 |
|
Gravity |
|
1.263 |
D297 |
|
Heat resistant 70h 100℃ Hardness change |
±15 |
﹢5 |
D573 |
|
Tensile strength% |
±30 |
﹢15 |
|
|
Elongation Max |
-50 |
-12 |
|
|
Compression Max 22h at 100℃ |
25 |
14 |
D395 |
|
NO1 oil resistant |
|
|
|
|
Change in hardness |
-10~+5 |
+1 |
D471 |
|
Change in tensile Max |
-25 |
-16 |
|
|
Change in Elongation |
-45 |
-20 |
|
|
Change in Volume% |
0~25 |
+6 |
|
|
Fuel resistant 70 H at 23℃ |
|
|
|
|
Hardness change |
±10 |
+3 |
D471 |
|
Tensile change Max |
-25 |
-8 |
|
|
Elongation change Max |
-25 |
-10 |
|
|
Change in Volume |
-5~+10 |
+3 |
|
|
Water Resistant |
|
|
D417 |
|
Change in Hardness |
|
+3 |
|
|
Change in tensile |
|
+5 |
|
|
Change in Elongation |
|
-14 |
|
|
Change in Volume |
±15 |
+3 |
|
|
Low Temperature resistant |
|
|
D2137 |
|
3 MIN -40℃ |
Non brittle |
Pass |
D2137 |
