Name: AS568 BS1516 Heat Resistant FKM O Rings For Aircraft Engines
Brand: Dongguan Ruichen Sealing Co., Ltd.
SKU: Standard/Nonstandard or As per drawing
Price: 24.01 USD
Availability: InStock

Home > Products > FKM O Rings >

AS568 BS1516 Heat Resistant FKM O Rings For Aircraft Engines

Heat Resistant FKM O Rings

BS1516 FKM O Rings

AS568 FKM O Rings

Place of Origin:

Dongguan, Guangdong & ShangRao, Jiangxi

Brand Name:

ORK

Certification:

IATF16949, ISO9001, ISO14001, ISO45001, ISO13485，FDA, WRAS, LFGB,UL, ROHS, REACH compliant material

Model Number:

Standard/Nonstandard or As per drawing

Request A Quote

Product Details

Material:

FKM Or Silicone

Hardness:

30 ~ 90 Shore

Color:

Black Brown Green RED Yellow

Heat Range:

-40 ~180 ℃

Acild Resistant:

Acceptable

Size:

Any Size Acceptable

Lead Time:

5-30 Work Days

Standard:

AS568 BS1516

Material:

NBR, EPDM, Silicone, FKM, HNBR, PU, NR, FFKM,CR,SBR , Aflas ,ACM...

Colour:

Black / Brown / Clear / Red Customized

Drawing Format:

2D (PDF/DWG/DXF), 3D (STEP/IGS)

Hs Code:

4016931000

Quality Control:

100% Inspection Before Shipment

Media Resistance:

Oil, Water,Aging, Gas,High Temp,Ozone, Steam,Acid, Alkali (Choose According To Material)

Logo Printing:

Available On Request

Cross Section Size:

From 0mm To 100mm

Inner Diameter Size:

From 0mm To 1000mm

Feature:

Excellent Durability

Seal Type:

Static Seal, Dynamic Seal

Production Process:

Compression & Cutting

Surface Require:

Visual Inspection According To ISO 3601-3 / GB/T 3452.2 (Grade N/S). Free Of Cracks, Foreign Particles, And Bubbles

Application Field:

Automotive, Hydraulic, Connector,Pneumatic, Electric,New Energy

Test Document:

Dimensional Inspection,Material Test Report, PPAP Available

Cross Section Shape:

Round, Square, X Shape,U Shape,Special Profile

Standard:

AS568, Metric,DIN 3771, JIS B 2401, ISO 3601

Factory Area:

23000+ Square Meters

Mold Quantity:

Over 15000+ Sets

ORK Slogan:

ORK Seals, Durable And Safer!

Shelf Life:

8+ Years (under Proper Storage)

Payment & Shipping Terms

Minimum Order Quantity

USD 100 per size (NBR/EPDM/Silicone) or USD 120 per size (HNBR/FKM/PU)

Price

Negotiable - quoted per size, material, hardness and colour

Packaging Details

PE bag inside, carton outside or as your requirements.

Delivery Time

7~20days

Payment Terms

T/T

Supply Ability

100000000/WEEK

Acid Resistant Brown FKM O Rings Metric For Aircraft Engines Seals FDA ROHS

Get Best Price

Fluorine Rubber Seals O Ring Heat Resistant , Green O Rings For Aircraft Engine

Get Best Price

Filter Seals High Temprature O Rings FKM 30 - 90 Shore Hardness ROHS W270

Get Best Price

Colorful FKM O Rings High Pressure Food Grade Outstanding Chemical Resistance

Get Best Price

+86-18024335478

Aaron@dgork.com

86-769-86865862

Contact Now

Product Description

Different Color Heat Resistant Seal Oring FKM Silicone O Rings

Description

Combining high temperature resistance with outstanding chemical resistance, Fluorocarbon-based compounds approach the ideal for a universal O-ring material.

Specification

Item	heat resistant seal oring FKM silicone NBR rubber sealing o ring silicone o-ring
Material	Silicone, NBR, FKM...etc
Color	Green,red, black, etc.
Sizes	Standard or customized size
Mould Cavity	Single or multi cavity
Mould Life	100,000 to 500,000 shots
Production Technique	Compression moulding
Packaging	PE bag + carton box, or per customer requirement

Key Use(s)

Seals for aircraft engines. Seals for automotive fuel handling systems. High temperature/low compression set applications. Wide chemical exposure situations. Hard vacuum service.

Temperature Range
Standard Compound: -13° to +446°F
Special Compound: -40° to +446°F

Hardness (Shore A): 30 to 90.

Features:High fluorine grades offer higher resistance to swell in high octane and oxygenated fuel blends. This give superior performance in Ethanol/Methanol blended gasoline. Base resistant grades offer improved resistance to amine based oil protectants found in new transmission oils. Also, improved resistant to steam for higher temperature services. Low temperature bases can improve performance to -40°F.
New Polymers being offered have improved chemical resistance and low temperature performance.
FKM® Extreme™ ETP offers similar chemical compatibility as Kalrez™ with temperature performance with a TR(10) of -40°F and brittleness to -76°.

Limitations: Fluorocarbons (FKM®s) are not recommended for exposure to ketones, amines, low molecular weight esters and ethers, nitro hydrocarbons, hot hydrofluoric or chlorosulfonic acids, or Skydrol® fluids. They are also not recommended for situations requiring good low temperature flexibility.

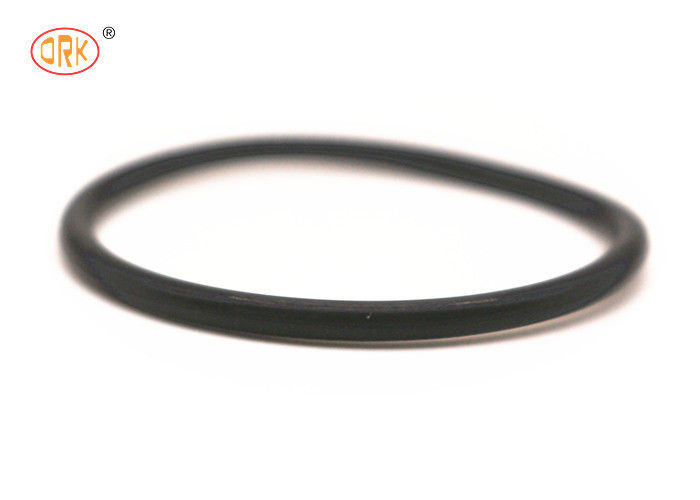

Detailed Image:

AS568 BS1516 Heat Resistant FKM O Rings For Aircraft Engines

V7501 COMPOUND
ASTM D2000 M2HK 710 A1-10 B37 B38 EO78 EF31 F13 Z=Hardness 75±5
Press Cure
Sheet : 5min 175℃
Button : 10 min 175℃
ORIGINAL PROPERTIES	SPECIFICATION	TEST RESULT
HARDNESS SHORE A	75°±5	73
TENSILE STRENGTH, MPA, MIN	10	10.9
ULTIMATE ELONGATION, ％, MIN	150	213
SPECIFIC GRAVITY (g/cm3)	1.85+/-0.08	1.87

HEAT RESISTANCE 70 H . AT 250℃(A1-10)
CHANGE IN HARDNESS, POINTS	+10	+5
CHANGE IN TENSILES STRENGTH, %	-25	+26
CHANGE IN ULTIMATE ELONGATION,MAX %	-25	-18
COMPRESSION SET, MAX, 22H AT 175℃ (B37 )	50	21.5

COMPRESSION SET, MAX, 22H AT 200℃ (B38 )	50	28.3

FLUID RESISTANCE FUEL.101. 70H AT 200℃ (EO78)
CHANGE IN HARDNESS, POINTS	-15~+5	-13
CHANGE IN TENSILES STRENGTH, MAX %	-40	-20.7
CHANGE IN ULTIMATE ELONGATION,MAX %	-20	-8.3
CHANGE IN VOLUME %	0~+15	+10.5

FLUID RESISTANCE FUEL C, 70H AT 23℃(EF31)
CHANGE IN HARDNESS, POINTS	±5	-4
CHANGE IN TENSILES STRENGTH, MAX %	-25	-20.2
CHANGE IN ULTIMATE ELONGATION,MAX %	-20	-18.6
CHANGE IN VOLUME %	0~+10	+5

Tags：

AS568 BS1516 Heat Resistant FKM O Rings For Aircraft Engines

Heat Resistant FKM O Rings

BS1516 FKM O Rings

AS568 FKM O Rings

Acid Resistant Brown FKM O Rings Metric For Aircraft Engines Seals FDA ROHS

Fluorine Rubber Seals O Ring Heat Resistant , Green O Rings For Aircraft Engine

Filter Seals High Temprature O Rings FKM 30 - 90 Shore Hardness ROHS W270

Colorful FKM O Rings High Pressure Food Grade Outstanding Chemical Resistance

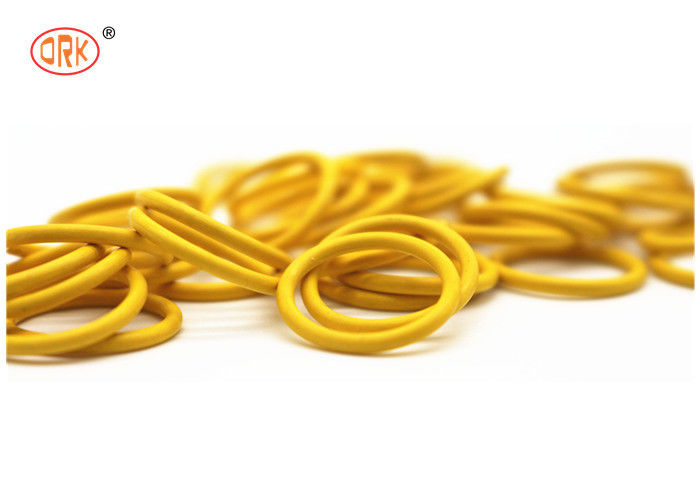

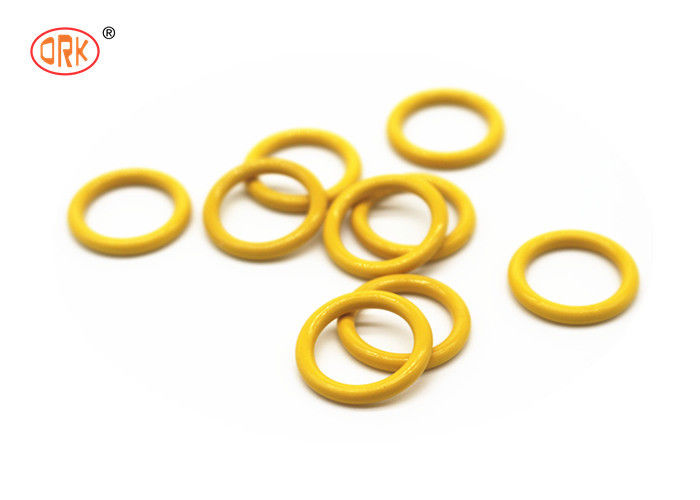

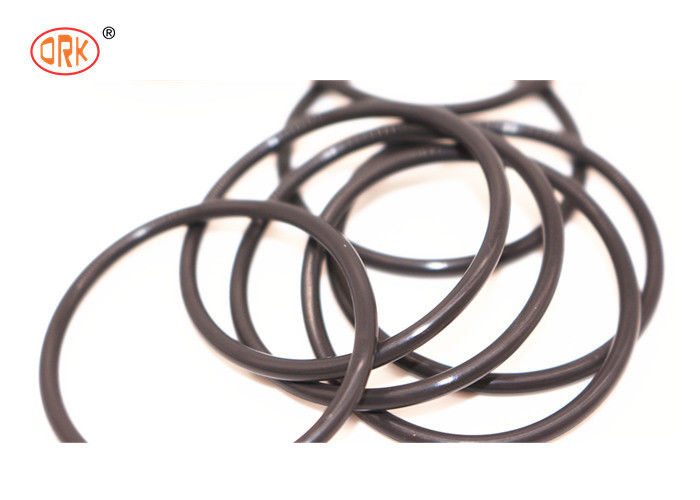

Detailed Image:
