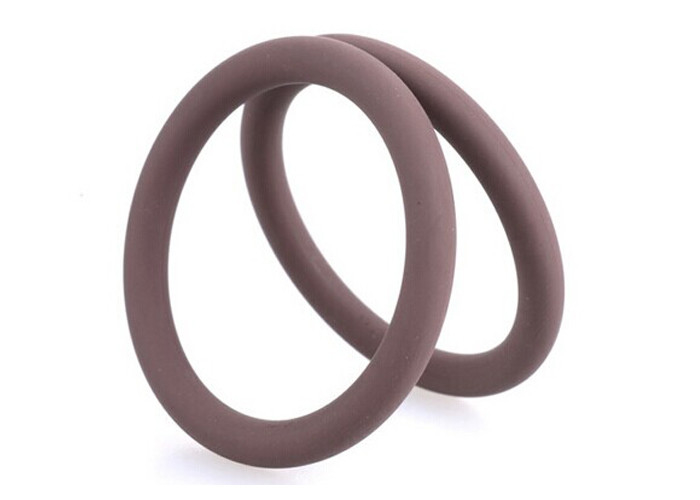

Acid Resistant Brown FKM O Rings Metric For Aircraft Engines Seals FDA ROHS

Acid Resistant Brown FKM O Rings Metric For Aircraft Engines Seals FDA ROHS

  • Acid Resistant Brown FKM O Rings Metric For Aircraft Engines Seals FDA ROHS
  • Acid Resistant Brown FKM O Rings Metric For Aircraft Engines Seals FDA ROHS
Acid Resistant Brown FKM O Rings Metric For Aircraft Engines Seals FDA ROHS
Product Details:
Place of Origin: Guangdong,China
Brand Name: ORK
Certification: FDA,ROHS,ISO9001,TS16949
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 100 USD
Price: 0.006 ~ 7 USD / PCS
Packaging Details: PE inside , Carton Outside
Delivery Time: 7-45 work days
Payment Terms: L/C, L/C,Paypal
Supply Ability: 30000000 PCS / Month
Contact Now
Detailed Product Description
Material: FKM Hardness: 30 ~ 90 Shore
Color: Black Brown Green RED Heat Range: -40 ~180 ℃
Acild Resistant: Acceptable Size: Any Size Acceptable
Lead Time: 5-8 Work Days Standard: AS568 BS1516
High Light:

FKM oring

,

fluorine rubber o ring

,

Acid Resistant Brown FKM O Rings

Acid Resistant Brown FKM O Rings Metric For Aircraft Engines Seals FDA ROHS



Trade Names:

  • FKM® . . . DuPont Performance Elastomers
  • Fluorel . . . 3M Company
  • Technoflon . . . Solvey Solexis, USA

ASTM D1418 Designation: FKM

ASTM D2000/SAE Type, Class: HK

ORK Compound Designation: VT

Standard Color: Black

Description: Combining high temperature resistance with outstanding chemical resistance, Fluorocarbon-based compounds approach the ideal for a universal O-ring material.

Key Use(s): Seals for aircraft engines. Seals for automotive fuel handling systems. High temperature/low compression set applications. Wide chemical exposure situations. Hard vacuum service.

Temperature Range
Standard Compound: -13° to +446°F
Special Compound: -40° to +446°F

Hardness (Shore A): 55 to 90.

Features:High fluorine grades offer higher resistance to swell in high octane and oxygenated fuel blends. This give superior performance in Ethanol/Methanol blended gasoline. Base resistant grades offer improved resistance to amine based oil protectants found in new transmission oils.  Also, improved resistant to steam for higher temperature services. Low temperature bases can improve performance to -40°F.
New Polymers being offered have improved chemical resistance and low temperature performance.
FKM® Extreme™ ETP offers similar chemical compatibility as Kalrez™ with temperature performance with a TR(10) of -40°F and brittleness to -76°.

Limitations: Fluorocarbons (FKM®s) are not recommended for exposure to ketones, amines, low molecular weight esters and ethers, nitro hydrocarbons, hot hydrofluoric or chlorosulfonic acids, or Skydrol® fluids. They are also not recommended for situations requiring good low temperature flexibility.



Acid Resistant Brown FKM O Rings Metric For Aircraft Engines Seals FDA ROHS 0



ORIENTAL  STAR TEST REPORTAcid Resistant Brown FKM O Rings Metric For Aircraft Engines Seals FDA ROHS 1
V7501    COMPOUND
ASTM   D2000  M2HK  710  A1-10  B37  B38  EO78  EF31   F13 Z=Hardness 75±5
Press Cure
Sheet : 5min 175℃
Button : 10 min 175℃
ORIGINAL    PROPERTIES SPECIFICATION     TEST RESULT
HARDNESS  SHORE  A 75°±5 73
TENSILE  STRENGTH, MPA, MIN 10 10.9
ULTIMATE   ELONGATION, %, MIN 150 213
SPECIFIC  GRAVITY  (g/cm3) 1.85+/-0.08 1.87

 HEAT  RESISTANCE  70 H . AT 250℃(A1-10)
CHANGE IN HARDNESS, POINTS   +10 +5
CHANGE IN TENSILES  STRENGTH,  % -25 +26
CHANGE IN ULTIMATE ELONGATION,MAX % -25 -18
COMPRESSION SET, MAX, 22H AT 175℃ (B37 )    50 21.5

COMPRESSION SET, MAX, 22H AT 200℃ (B38 )    50 28.3

FLUID RESISTANCE FUEL.101. 70H AT 200℃ (EO78)
CHANGE IN HARDNESS, POINTS  -15~+5 -13
CHANGE IN TENSILES  STRENGTH, MAX % -40 -20.7
CHANGE IN ULTIMATE ELONGATION,MAX % -20 -8.3
CHANGE IN  VOLUME % 0~+15 +10.5

FLUID RESISTANCE  FUEL C, 70H  AT  23℃(EF31)
CHANGE IN HARDNESS, POINTS  ±5 -4
CHANGE IN TENSILES  STRENGTH, MAX % -25 -20.2
CHANGE IN ULTIMATE ELONGATION,MAX % -20 -18.6
CHANGE IN  VOLUME % 0~+10 +5
