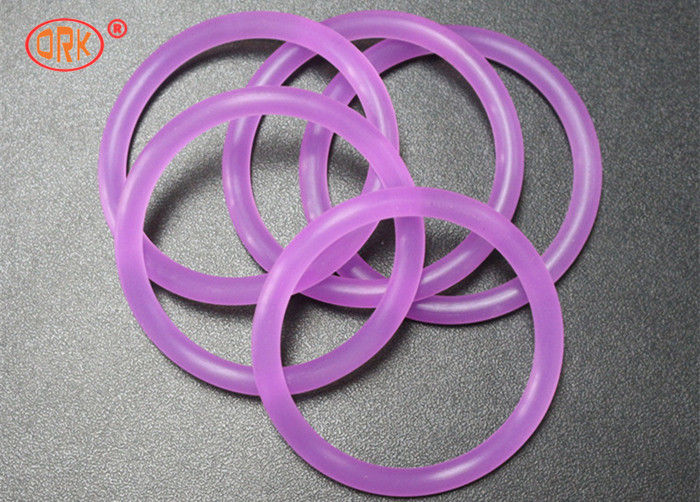

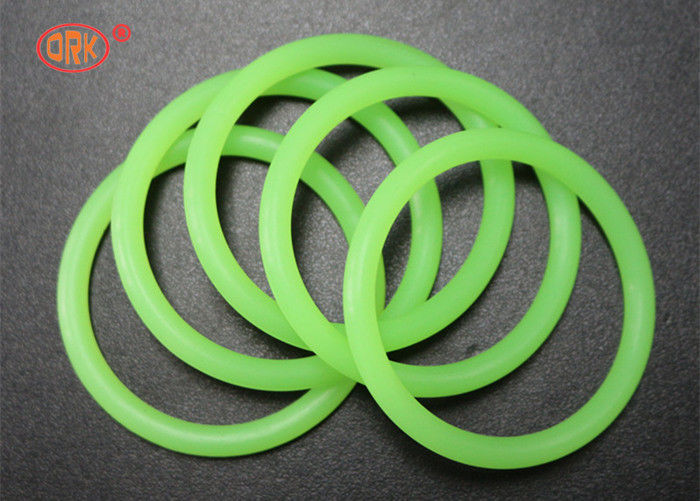

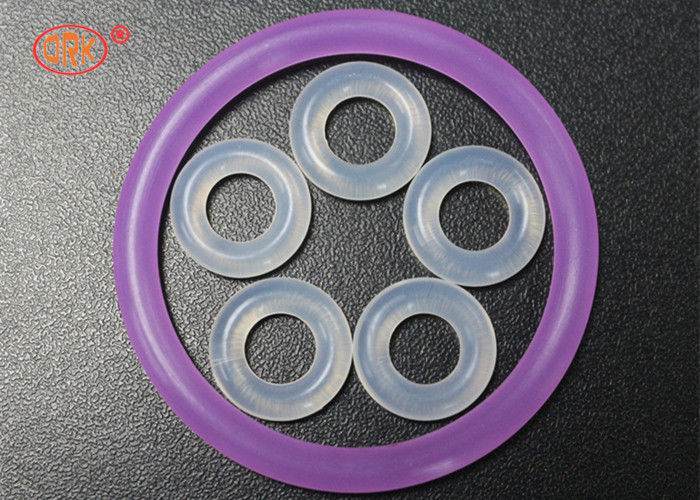

FDA Colored Rubber Clear Silicone O Ring Metric O Rings AS568 Standard

    • FDA Colored Rubber Clear Silicone O Ring Metric O Rings AS568 Standard
    • FDA Colored Rubber Clear Silicone O Ring Metric O Rings AS568 Standard
    • FDA Colored Rubber Clear Silicone O Ring Metric O Rings AS568 Standard
    • FDA Colored Rubber Clear Silicone O Ring Metric O Rings AS568 Standard
  • FDA Colored Rubber Clear Silicone O Ring Metric O Rings AS568 Standard

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: ORK
    Certification: FDA,ROHS,ISO9001,TS16949,Reach
    Model Number: AS568 Standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 USD
    Price: 0.002 ~ 2 usd / pcs
    Packaging Details: PE inside , Carton Outside
    Delivery Time: 7-45 work days
    Payment Terms: L/C,Paypal, T/T
    Supply Ability: 30000000 PCS / Month
    Contact Now
    Detailed Product Description
    Material: Silicone Certification: FDA Approved
    Color: Red , Yellow , Orange ,Blue , Green , Purple Hardness: 30 ~ 85 Shore
    Temprature: -60 ~220 ℃ Standard: AS568

    FDA Colored Rubber Clear Silicone O Ring Metric O Rings AS568 Standard


    Details Show:

    Item: o ring,  Material: Silicone FDA,   Color: different color,  Hardness: 30~80 Shore A
    FDA Colored Rubber Clear Silicone O Ring Metric O Rings AS568 Standard
    Silicone / VMQ: In the Silicone family, you will find compounds which are superior as static seals in extreme temperature conditions. Standard compounds handle operating temperatures -85º to +400ºF. Silicone compounds are popular in food and medical applications because they are very clean and do not impart odor or taste. Special Phenyl silicones can be used down to -30°C.

    Trade Names:

    • Elastosil . . . Wacker
    • Silastic . . . Dow Corning
    • Silplus . . . Momentive Performance Materials

    ASTM D1418 Designation: MQ, PMQ, VMQ, PVMQ
    ASTM D2000/SAE J200 Type, Class: FC, FE, GE
    Apple Compound Designation: SL
    Standard Color: Red,black,white,blue
    Description: A group of elastomers, made from silicon, oxygen, and hydrogen, Silicones are renowned for their retention of flexibility and low compression set characteristics, within one of the widest working temperature ranges for elastomers.
    Key Use(s): Static seals in extreme temperature situations. Seals for medical devices, compatible with FDA regulations.
    Temperature Range:
    Standard Compound: -30° to +220°C
    Hardness (Shore A): 10 to 85
    Features: Phenyl (PVMQ) based silicones can perform to -30°C. New polymers can take short term to 220°C.
    Limitations: Generally, low abrasion and tear resistance, and high friction characteristics preclude silicones from effectively sealing some dynamic applications. Silicones are also highly permeable to gases and are generally not recommended for exposure to ketones (MEK,acetone) or concentrated acids.



    NBR 70 TEST REPORT
    ASTM D2000 M2BG 714 B14 EO14 EF11 EF21 EA14 F17

    PROPERITIES

    SPECIFICATION

    TEST RESULT

    TEST METHOD

    Hardness shore A

    70±5

    72

    D2240

    Tensile MPA Min

    14

    14.5

    D12

    Elongation % Min

    250

    315

    D412

    Gravity



    1.263

    D297

    Heat resistant 70h 100℃ Hardness change

    ±15

    ﹢5

    D573

    Tensile strength%

    ±30

    ﹢15



    Elongation Max

    -50

    -12



    Compression Max 22h  at 100℃

    25

    14

    D395

    NO1 oil resistant







    Change in hardness

    -10~+5

    +1

    D471

    Change in tensile Max

    -25

    -16



    Change in Elongation

    -45

    -20



    Change in Volume%

    0~25

    +6



    Fuel resistant 70 H at 23℃







    Hardness change

    ±10

    +3

    D471

    Tensile change Max

    -25

    -8



    Elongation change Max

    -25

    -10



    Change in Volume

    -5~+10

    +3



    Water Resistant





    D417

    Change in Hardness



    +3



    Change in tensile



    +5



    Change in Elongation



    -14



    Change in Volume

    ±15

    +3



    Low Temperature resistant





    D2137

    3 MIN -40℃

    Non brittle

    Pass

    D2137

    Certificates:

    Our factory have been approved by ISO9001 & TS16949, RoHs, Reach, FDA report by SGS.
    FDA Colored Rubber Clear Silicone O Ring Metric O Rings AS568 Standard
    FDA Colored Rubber Clear Silicone O Ring Metric O Rings AS568 Standard
    Process Flow:

    Raw material test → Prescribe → Mixing Material → Cutting Material → First Cure → First Part Inspection → Casual Inspection → Burr Dealing → Eye Inspection → IPQC → Washing or Grinding → Post Cure → FQC → Packing
    FDA Colored Rubber Clear Silicone O Ring Metric O Rings AS568 Standard

    Packing & Delivery:

    Packing: PE bag inside, Carton outside.
    Carton size: 46cm*33cm*33cm, 51cm*33cm*33cm, 29cm*23cm*19cm
    FDA Colored Rubber Clear Silicone O Ring Metric O Rings AS568 Standard
    Delivery: Large quantity by ship, small quantity by air or express.
    FDA Colored Rubber Clear Silicone O Ring Metric O Rings AS568 Standard

    FAQ:
    1,Are you manufacture or trading company ?
    We are manufacture, we have two factories, one located in Shangrao City, Jiangxi Province, one in Dongguan City, Guangdong Province
    2,Can I get samples from you ?
    Of course, you can. If the samples you need we have in stock, you can get them for free,
    only need to pay for the express cost.
    3,What's the term of payment ?
    Amount < US$2000, 100% paid in advance by paypal or T/T;
    Amount >= US$2000, 30% paid in advance, 70% balance before shipment by T/T.
    4,Can you produce OEM products ?
    Yes, we can produce products by your drawing or samples.
    5,What's your MOQ ?
    If we have the products in stock , the quantity by your requirement, If we don't have them in stock:
    NBR, SIL, SBR, EPDM, NR: 100 US$; PU, HNBR, FKM: 150 US$
