| Place of Origin: | ShangRao ,China |
| Brand Name: | ORK |
| Certification: | ISO ,TS , REACH , ROHS ,FDA |
| Model Number: | standard & non-standard |
| Minimum Order Quantity: | 80$ per size |
|---|---|
| Price: | 0.0001~1 |
| Packaging Details: | PE bag inside , carton outside |
| Payment Terms: | T/T ,paypal |
| Supply Ability: | 1000000000/month |
| Property: | Strong Acid And Alkali | Temperature Range: | 250℃（regular） 320-330℃ （formula） |
|---|---|---|---|
| Material: | FFKM | Durometer: | 30~90 Shore |
| Size: | Standard /customized | Shape: | O-Ring |

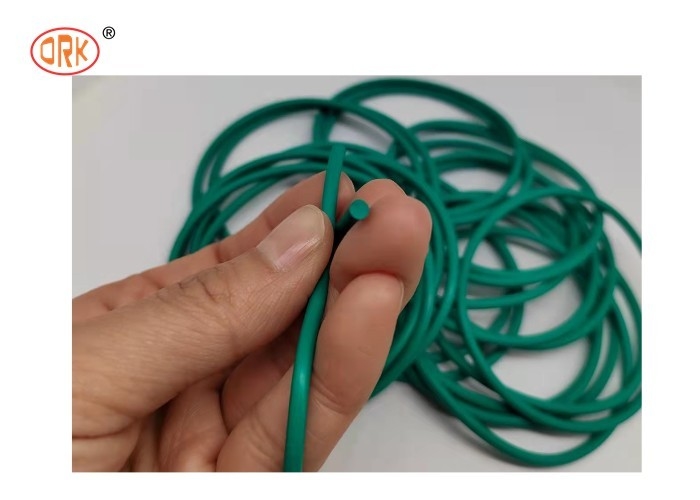

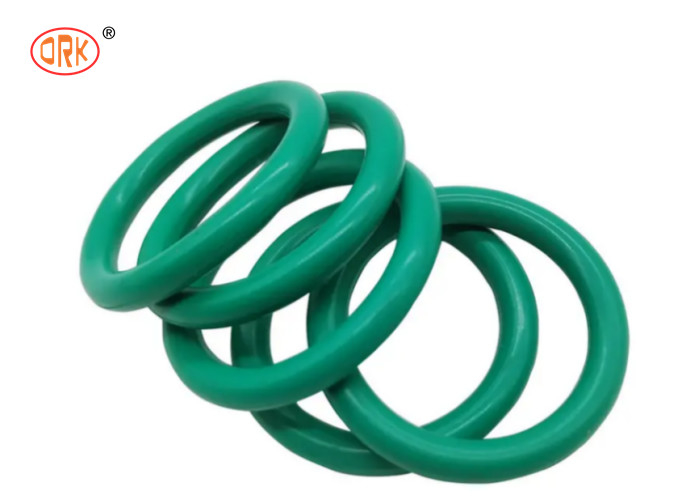

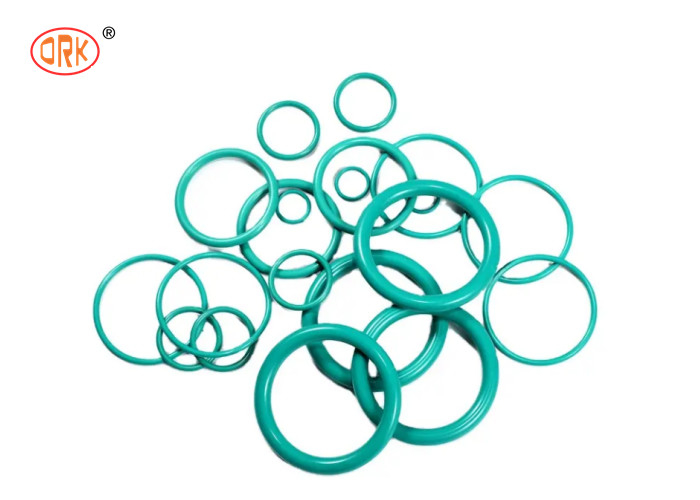

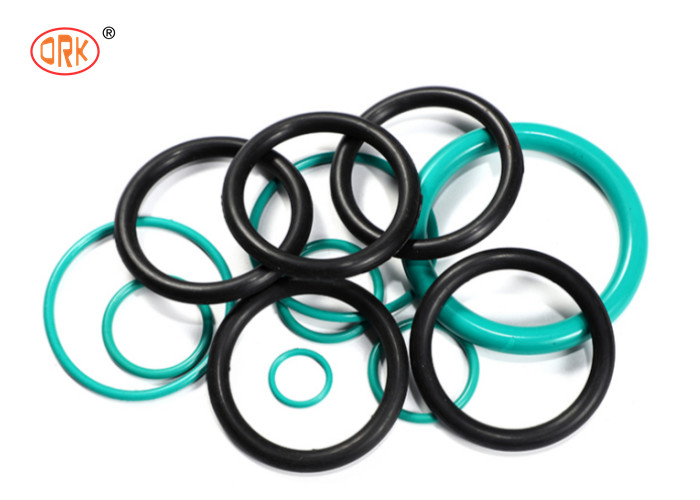

Green Excellent Chemical Resistance FFKM O Ring for Petrochemical
Introduction for O Rings
Following elastomers can be use in O ring :
* Aflas® or Kalrez®(FFKM)
* Acrylate Rubber(ACM)
* Butyl Rubber(IIR)
* Ethylene-propylene (EPR, EPDM)
* Ethylene Acrylate Rubber(AEM)
* Fluorocarbon (FKM/FPM/FKM)
* Fluorosilicone(FVMQ)
* Hydrogenated Nitrile (HNBR)
* Neoprene Rubber(CR)
* Nitrile Rubber (Buna-N/NBR)
* Natural Rubber(NR)
* Polyurethane(PU)
* Silicone Rubber
* Styrene-butadiene Rubber (SBR)
| Material | Temperature | Characteristics | Application |
| NR | -50~80℃ | Good elasticity, tensile strength, wear resistance | Tires, cushions, seals, cable insulation sleeves |
| NBR | -40~120℃ | Oil resistance, wear resistance, high temperature and aging resistance | Oil resistant seals, diaphragms, hose and soft tubing |
| SIL/VMQ | -60~250℃ | High and low temperature resistance, non-toxic tasteless, aging resistance, insulation resistance, good thermal conductivity | Household articles, seals, shock absorbers, electronic accessories |
| EPDM | -40~150℃ | Weather resistance, ozone aging resistance, steam resistance, strong acid and alkali resistance | Phosphate hydraulic oil system seals, hose and auto parts |
| FKM/FKM | -40~240℃ | High temperature resistance, oil,chemical,aging resistance, good insulation, flame-retardant, less breathabilities |
Heat and oil resistant sealing parts, rubber hoses |
| SBR | -50~110℃ | The property is close to NR. good wear and aging resistance. heat resistance is better than NR, but short service life |
Tire, rubber sheet, rubber hose, rubber adhesive tape |
| HNBR | -40~150℃ | Not easy to wear and deform, oil resistance | Aerospace, automobile, oilfield drilling, petrochemical, textile and printing |
| CR | -40~120℃ | Weather and ozone aging resistance, self extinguishing, good tensile strength, elongation and elasticity, good adhesion with metal and fabric |
Sealing ring, rubber tube, coating, wire insulation layer, adhesive tape and prepared adhesive |
| FVMQ |
-40~177℃ -40~232℃( Dry environment) |
Resistant to strong acid, high and low temperature, oil, high pressure and aging | Mechanical seal, petroleum industry, chemical industry, building materials |
| FFKM |
250℃(regular) 320-330℃ (formula) |
Good performance, used in harsh environments, resistant to various solvents, strong acid and alkali, and good elasticity | High quality and expensive seal rings. |
| PU | -40~90℃ | Not easy to wear, withstand high pressure, not easy to aging and hydrolysis | Building, automobile, aviation industry, thermal insulation, household goods, household appliances |
We can make 30~90 shore A for hardness
FFKM Rubber Material
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staff. The company has two branches
in Guangdong and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao municipal government and fully enjoy all the
preferential policies for economic development zone. We will always take "best quality, best service" as our
mission, and make progress together with you, harmony and mutual win!
Certificates
Progress
FAQ
Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR, ACM, AEM,Fluorosilicone(FVMQ),
FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your
needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.
Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no mold about 25-30 days, depending on the product
situation.
Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw materials, process inspection,to ensure the quality of the
production process, shipping 100% of the full inspection; automatic inspection machine full inspection, and according
to customer needs before the mass production of pre-production samples.
Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also be packed according to customer's requirements.
Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, Paypal is also accepted.
