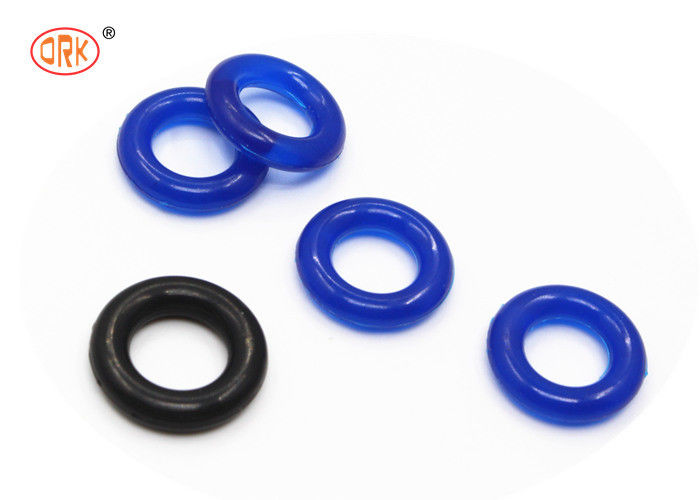

IATF16949 ORK Shore 40 Food grade Silicone O Rings

IATF16949 ORK Shore 40 Food grade Silicone O Rings

IATF16949 ORK Shore 40 Food grade Silicone O Rings
IATF16949 ORK Shore 40 Food grade Silicone O Rings

Product Details:

Place of Origin: Guangdong,China
Brand Name: ORK
Certification: FDA,ROHS,ISO9001,IATF16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE inside , Carton Outside, Cartons on pallet
Delivery Time: 7-45 work days
Payment Terms: T/T, L/C
Supply Ability: 30000000 PCS / Month
Contact Now
Detailed Product Description
Product Name: Silicone Seal Can Be Customized Material: Silicone
Certification: FDA,ISO,ROHS Color: Red , Yellow , Orange ,Blue , Green , Purple Ect
Hardness: 30 ~ 85 Shore Temprature: -40 ~220 ℃
Standard: Customized Application: Machinery And Enquipment
High Light:

ORK Silicone O Rings

,

Shore 40 Silicone O Rings

,

IATF16949 Silicone O Rings



Silicone Shore 40 Sealing Elastic Rubber Lid Seal Soft Silicone O Ring



Silicone O ring Specification



1. Material:Food grade silicone

2. Color: Clear,red,black, brown,green,etc
3. Hardness: 40A

4. Certification: IATF16949, SGS, RoHS,

5. Delivery time: 2-15 workdays after receiving the payment

6. Shipping mode: by air, sea, Express(DHL, TNT, EMS...)

7. Payment: T/T, L/C at sight, Paypal.

8. Free sample:Available


Advantage


1. after modulating formula, the tensile strength up to 1500 psi, and tear resistance up to 88 LBS.
2. Good elasticity and good compression deformation.
3. good resistance to neutral solvent.
4. excellent heat resistance.
5. With excellent cold resistance.
6. with excellent resistance to erosion of ozone and oxides .
Disadvantage:
1. Does not recommend is suitable for most concentrated solvent, oil, concentrated acid after dilute sodium hydroxide
Usage:
Appliance: electric kettle,electric iron,Microwave owen,etc

Keypad,heat shock in DVD,cable connector



Material Description:



Silicone rubbers are widely used in industry and there are multiple formulations. Silicone rubbers are often one or two part polymers, and may contain fillers to improve properties or reduce cost. Silicone rubber is generally non-reactive, stable, and resistant to extreme environments and temperatures from -55 °C to +300 °C while still maintaining its useful properties. Due to these properties and its ease of manufacturing and shaping, silicone rubber is used in silicone gaskets, seals and orings and can be found in a wide variety of products such as:

  • Automotive applications
  • Many cooking, baking, and food storage products
  • Apparel including undergarments, sportswear, and footwear
  • Electronics equipment
  • Home repair and hardware
  • A host of unseen applications.

Silicone’s temperature tolerance maintains a lack of brittleness below freezing and excellent tolerance of temperatures in excess of 150 °C (302 °F).



Silicone o rings, gaskets and seals are Resistant To:  High/Dry Heat, Fungus, Sunlight, Ozone, and Weathering.



Do not use with: Fuels, silicone, and petroleum based oils, acids

Temperature Range: -75-/+450F / -59.5 -/+232C

Standard Hardness: 70 durometer Shore A

Hardness Range: 30 - 80 Durometer Shore A

Standard Colors:    Rust/ Orange.

Also available in Translucent.  Custom colors also available.

Trade Names:

  • Elastosil . . . Wacker
  • Silastic . . . Dow Corning
  • Silplus . . . Momentive Performance Materials

ASTM D1418 Designation: MQ, PMQ, VMQ, PVMQ

ASTM D2000/SAE J200 Type, Class: FC, FE, GE

Apple Compound Designation: SL

Standard Color: Red



Key Use(s): Static seals in extreme temperature situations. Seals for medical devices, compatible with FDA regulations.

Temperature Range:
Standard Compound: -40° to +220°C

Hardness (Shore A): 10 to 85

Features: Phenyl (PVMQ) based silicones can perform to -85°F. New polymers can take short term to 600°F.

Limitations: Generally, low abrasion and tear resistance, and high friction characteristics preclude silicones from effectively sealing some dynamic applications. Silicones are also highly permeable to gases and are generally not recommended for exposure to ketones (MEK,acetone) or concentrated acids.



70 TEST REPORT

Test Requested:As specified by clients,to determine total extractive residues from Rubber articles intended for repeated use in contact with food for compliance with Food and Drug Administration Regulations.

Test Method:With reference to US FDA 21 CFR 177.2600.

Simulant Used Time Temperature Max.Permissible Limit Result of 001 Comment
Distilled water 7.0hr(s) Reflux temperature 20mg/sq.in <0.5mg/sq.in PASS
Succeeding Extraction 2.0hr(s) Reflux temperature 1mg/sq.in <0.5mg/sq.in PASS
n-Hexane 7.0hr(s) Reflux temperature 175mg/sq.in 5.0mg/sq.in PASS
Succeeding Extraction 2.0hr(s) Reflux temperature 4mg/sq.in <0.5mg/sq.in PASS

Products Show:

Product Name: Silicone o ring/ rubber lid seal



IATF16949 ORK Shore 40 Food grade Silicone O Rings 0



IATF16949 ORK Shore 40 Food grade Silicone O Rings 1
